Ralston Volume Controllers

Extreme calibration precision for wide range of pressure control applications

Ralston Volume Controllers can be used to control pressure in very low pressure applications (0-400 inH20) as well as higher pressure applications (0-3000 psi).

Download Spec Sheet

Applications for the Volume Controller

Differential Pressure Transmitter Calibration

Use the Volume Controller to hit pressure test points quickly and accurately. It can be used without nitrogen to control pressure for calibrating the differential pressure side of a pressure transmitter up to 400 inH2O / 1000 mbar. With compressed nitrogen applied it can be used to control pressure for calibrating the static side of a pressure transmitter to 3000 psi / 200 bar.

Analog Pressure Gauge Calibration

When used in conjunction a digital test gauge and a 2 or 4 port benchtop manifold it can be used to calibrate 2 or 4 of the same range pressure gauges at the same time. This works much quicker and more efficiently than a deadweight tester for calibrating analog pressure gauges. This makes an excellent choice for a laboratory to calibrate pressure gauges in a wide range of pressures.

Vacuum Pressure Gauge or
Transmitter Calibration

Connect the Volume Controller in line with a mechanical vacuum pump. Pull a vacuum on the inlet side of the Volume controller and control vacuum to precise test points better than with virtually any other device.

Float Pneumatic Piston Gauges

In high precision pressure calibration the Volume Controlle can provide a precise pressure to float a piston gauge so that the piston gauge can deliver accurate pressure.

Get Set Up Quickly

The Ralston Volume Controller has a very straight forward interface thats easy to understand. Watch the “How To” video to see how easy it is to set up the QTVC, move test pressure up and down, then vent the system for shutdown.

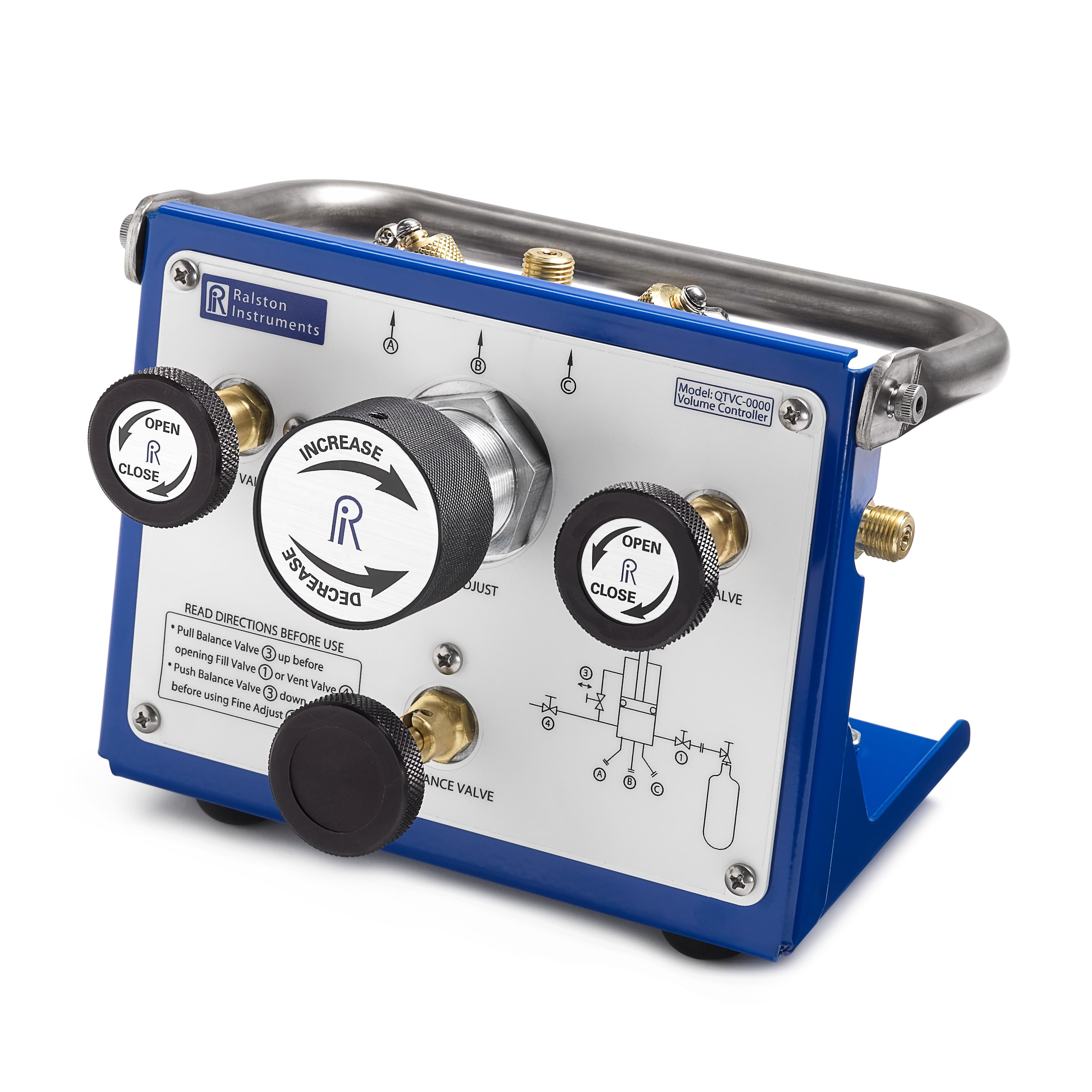

QTVC Compressed Gas Volume Controllers

Volume Controllers with & without Gauge Connection

Calibrate both very low pressure or high pressure instrumentation (up to 3000 PSI) using nitrogen with an attached pressure gauge or calibrator.

Model Max Pressure Gauge Adapter Pressure Gauge Hose 1 Hose 2 Hose Adapter
QTVC-0000-0-0 3000 PSI / 200 bar / 20 MPa   None None None
QTVC-1MBA-6-3 3000 PSI / 200 bar / 20 MPa 1/8" Male NPT (ASME B1.20.1) None Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long Female Quick-test, brass
QTVC-2MBA-6-3 3000 PSI / 200 bar / 20 MPa 1/4" Male NPT (ASME B1.20.1) None Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long Female Quick-test, brass
QTVC-2FBA-6-3 3000 PSI / 200 bar / 20 MPa 1/4" Female NPT (ASME B1.20.1) None Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long Female Quick-test, brass
QTVC-2FBA-RG-2m-1m 3000 PSI / 200 bar / 20 MPa G 1/4 Female BSPP (ISO 228) None Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long Female Quick-test, brass
QTVC-3FBA-RG-2m-1m 3000 PSI / 200 bar / 20 MPa G 3/8 Female BSPP (ISO 228) None Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long Female Quick-test, brass
QTVC-4FBA-RG-2m-1m 3000 PSI / 200 bar / 20 MPa G 1/2 Female BSPP (ISO 228) None Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long Female Quick-test, brass

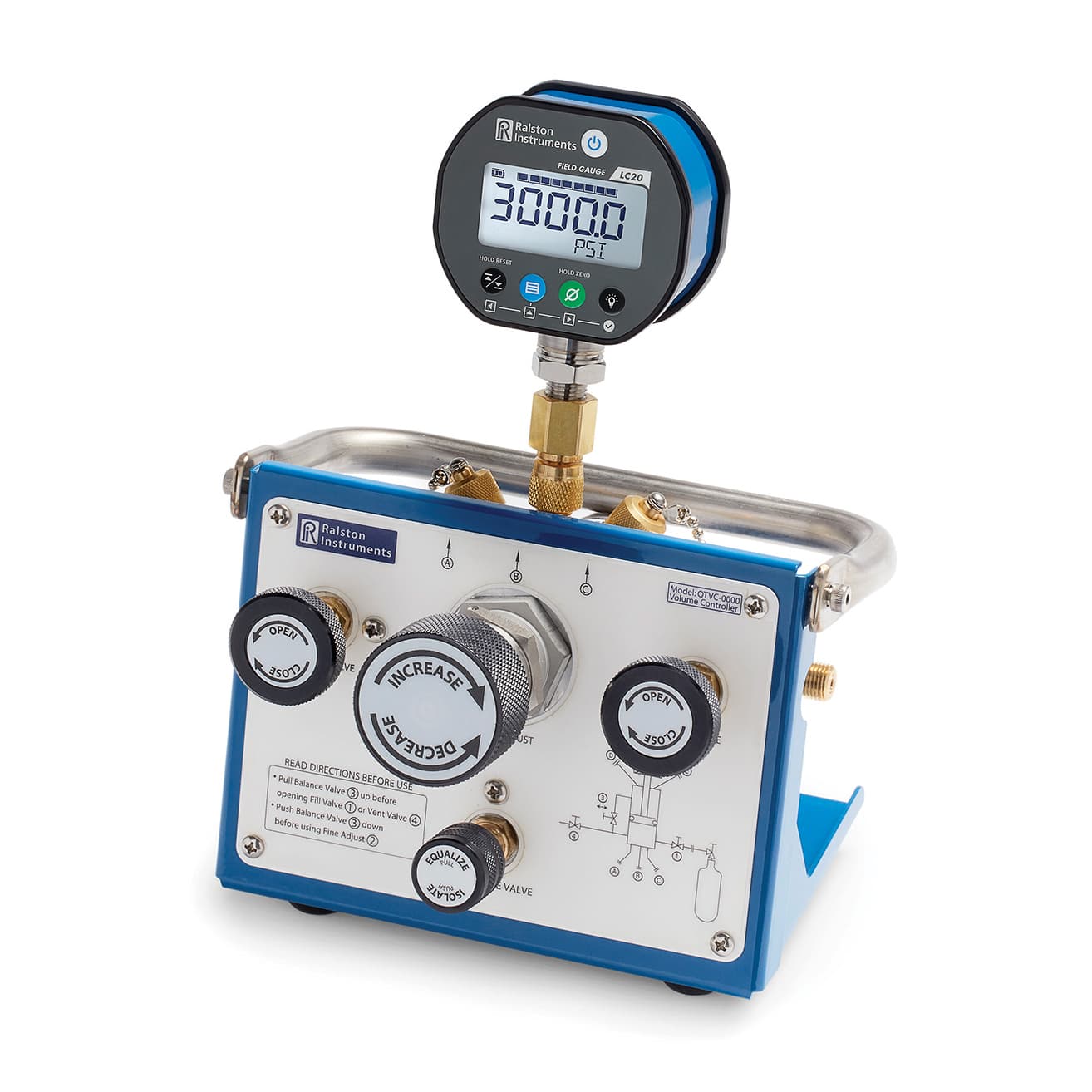

Volume Controllers - Full Calibration Kits

Connect to and calibrate both very low or high pressure instrumentation using included volume controller and pressure gauge.

Model Max Pressure Gauge Adapter Pressure Gauge Hose 1 Hose 2 Hose Adapter
QTVC-3KPSIG-D 3000 PSI / 200 bar / 20 MPa 1/4" Male NPT (ASME B1.20.1) Digital pressure gauge, 3000 PSIG Pressure Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long Female Quick-test, brass
QTVC-1KPSIG-D 3000 PSI / 200 bar / 20 MPa 1/4" Male NPT (ASME B1.20.1) Digital pressure gauge, 1000 PSIG Pressure Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long Female Quick-test, brass
