Benchtop Manifolds

Ideal for testing multiple pressure instruments at once up to 5000 psi (350 bar).

  • Calibrate multiple pressure gauges, transmitters or transducers at once
  • Vertically mounted ports are spaced far enough apart so larger gauges will fit easily
  • Quickly pressurize the system using a Ralston Quick-test hose
  • Switch between pressure connections on devices under test without a wrench
  • Compatible with all Ralston Quick-test NPT, BSP, Flare Gauge Adapters
  • Excellent for calibrating multiple pressure instruments in a thermal chamber
  • Second side connection can be used to daisy-chain multiple manifolds together
  • Made in USA

Benchtop Manifold Models

Model Materials Seal Materials

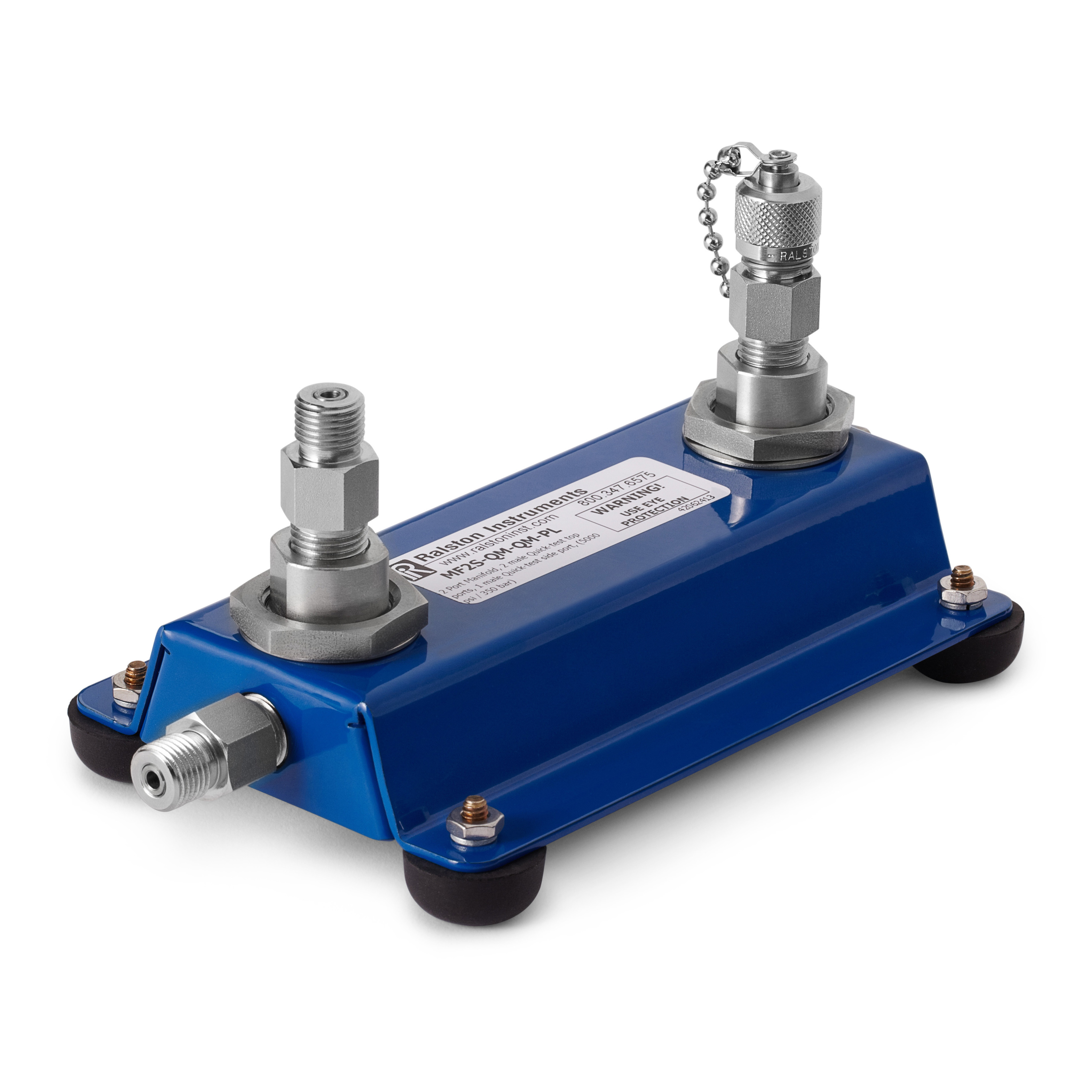

MF2S-QM-QM-PL Powder Coated Steel
Stainless Steel
Buna-N
MF4S-QM-QM-PL Powder Coated Steel
Stainless Steel
Buna-N

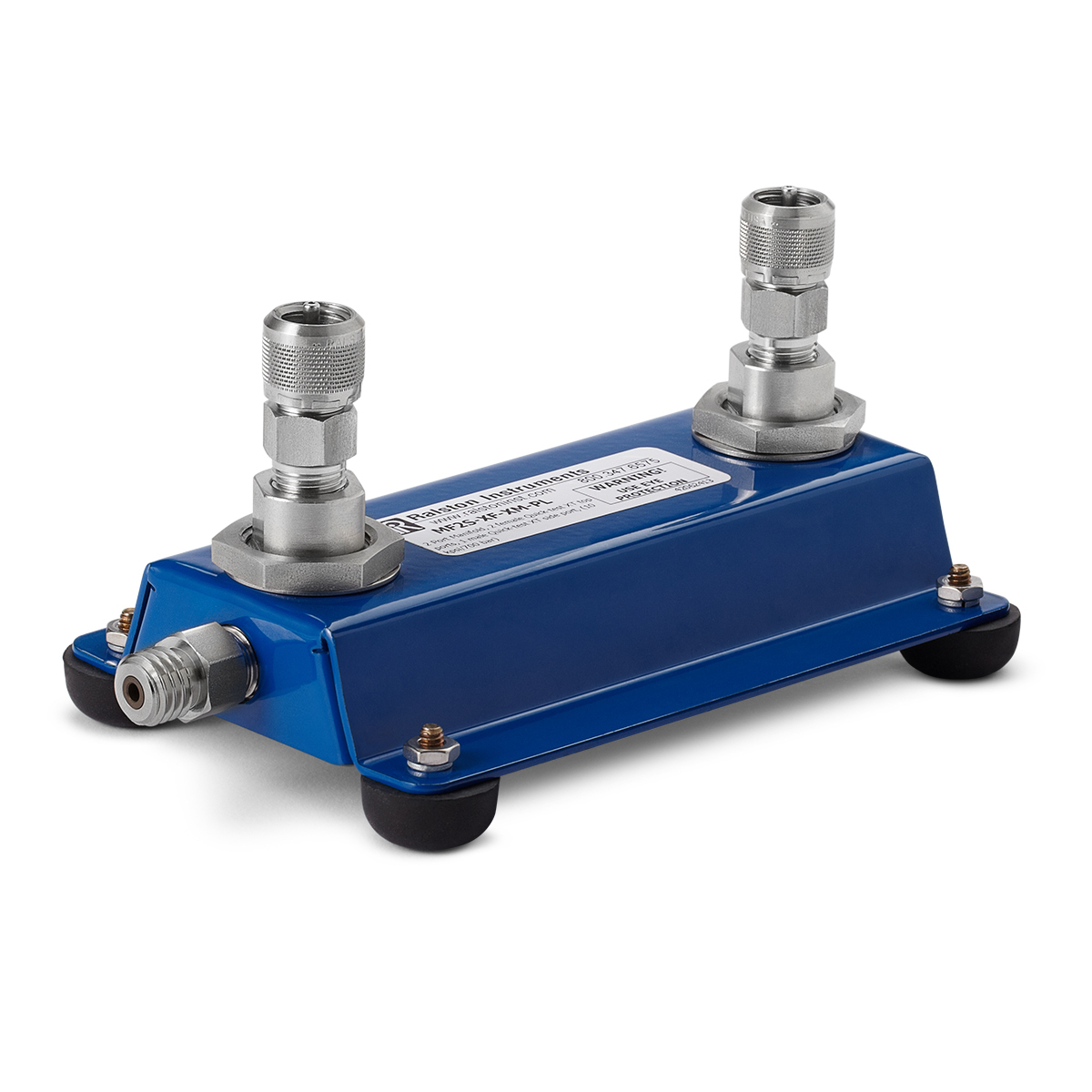

MF2S-XF-XM-PL Powder Coated Steel
Stainless Steel
Teflon
Viton
MF4S-XF-XM-PL Powder Coated Steel
Stainless Steel
Teflon
Viton
