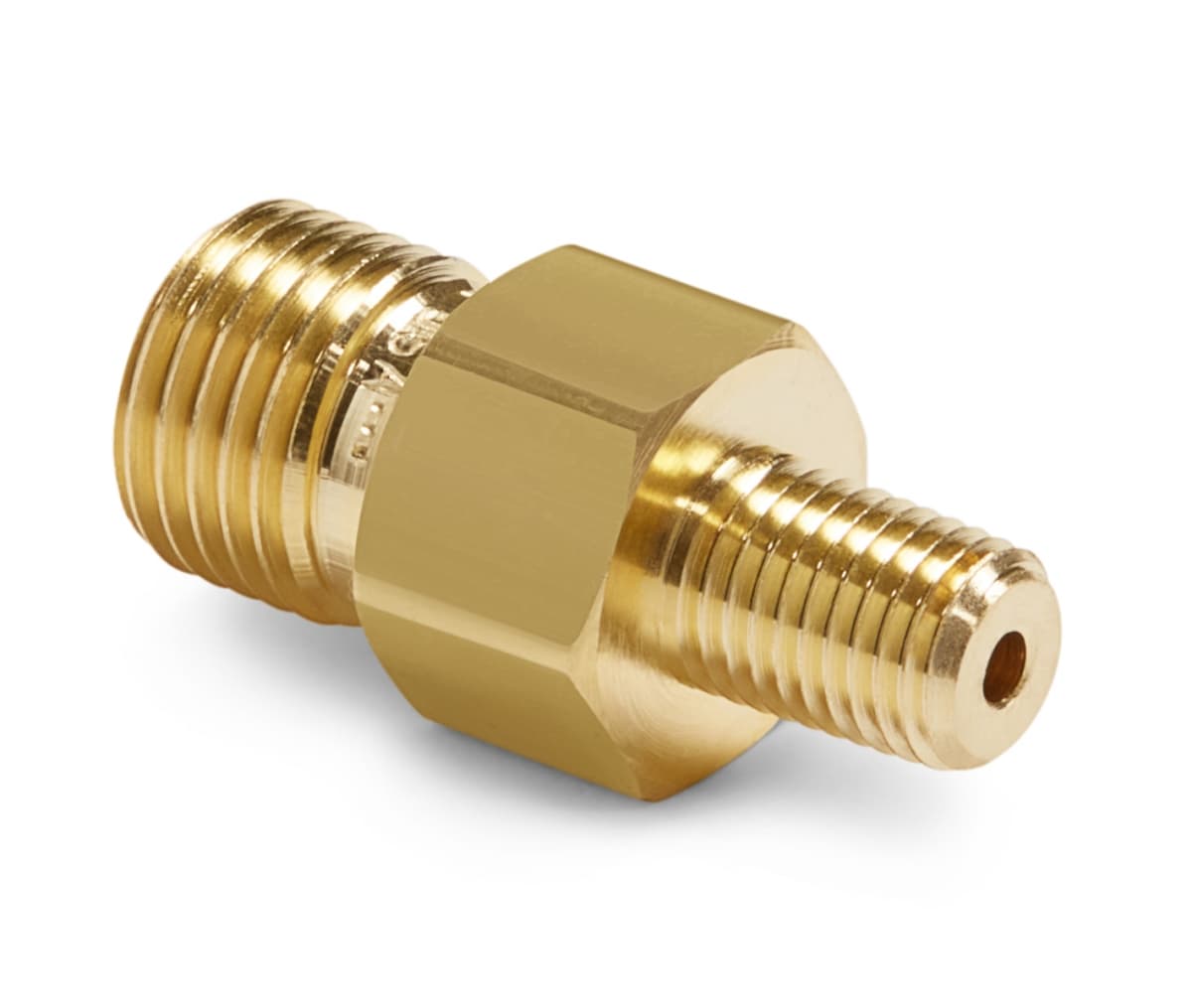

Part Number: QTHA-0.5MB0
1/16" male NPT x male Quick-test, no check-valve, brass
Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 0.9 oz / 26 grams |
|---|---|
| Length | 1.29 in / 33 mm |
| Width | 0.63 in / 17 mm |
| Height | 0.63 in / 17 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Dimensions B | 0 In / 0.00 mm |
| Materials | Brass |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 1/16" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
