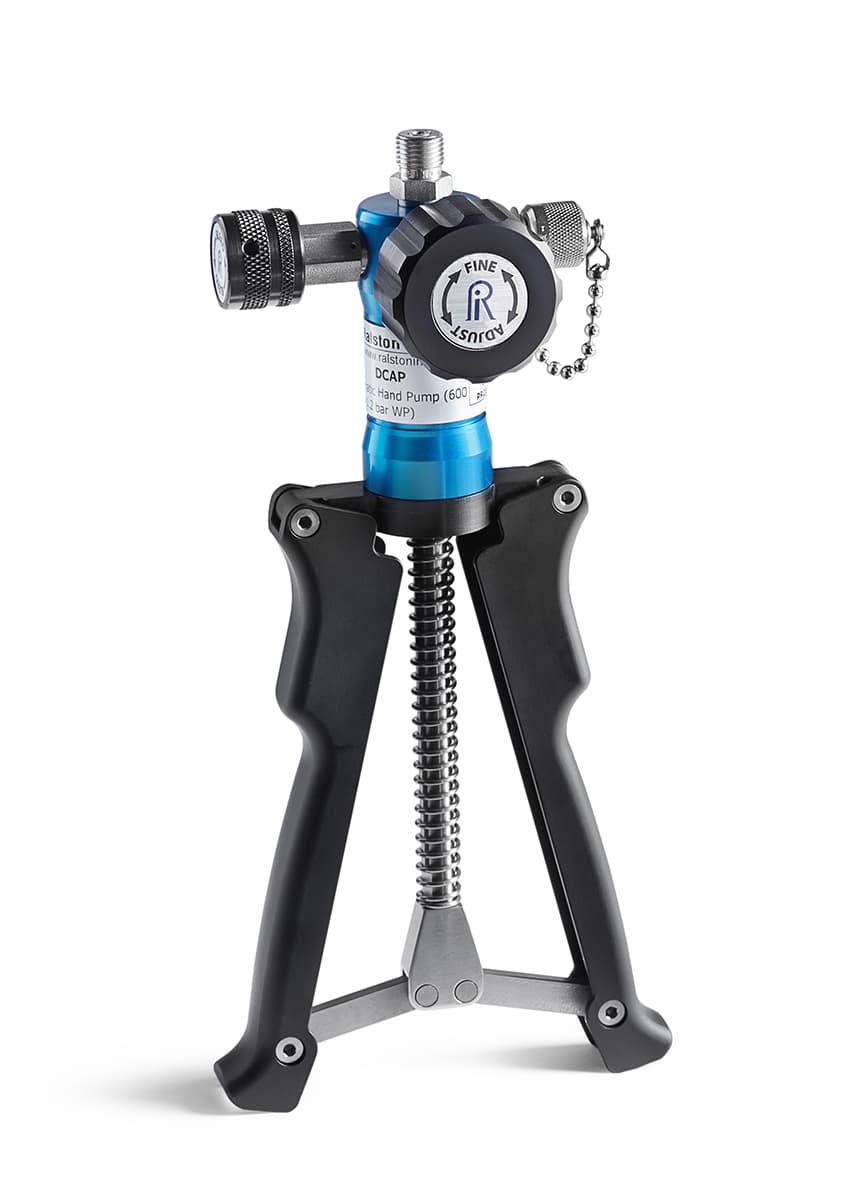

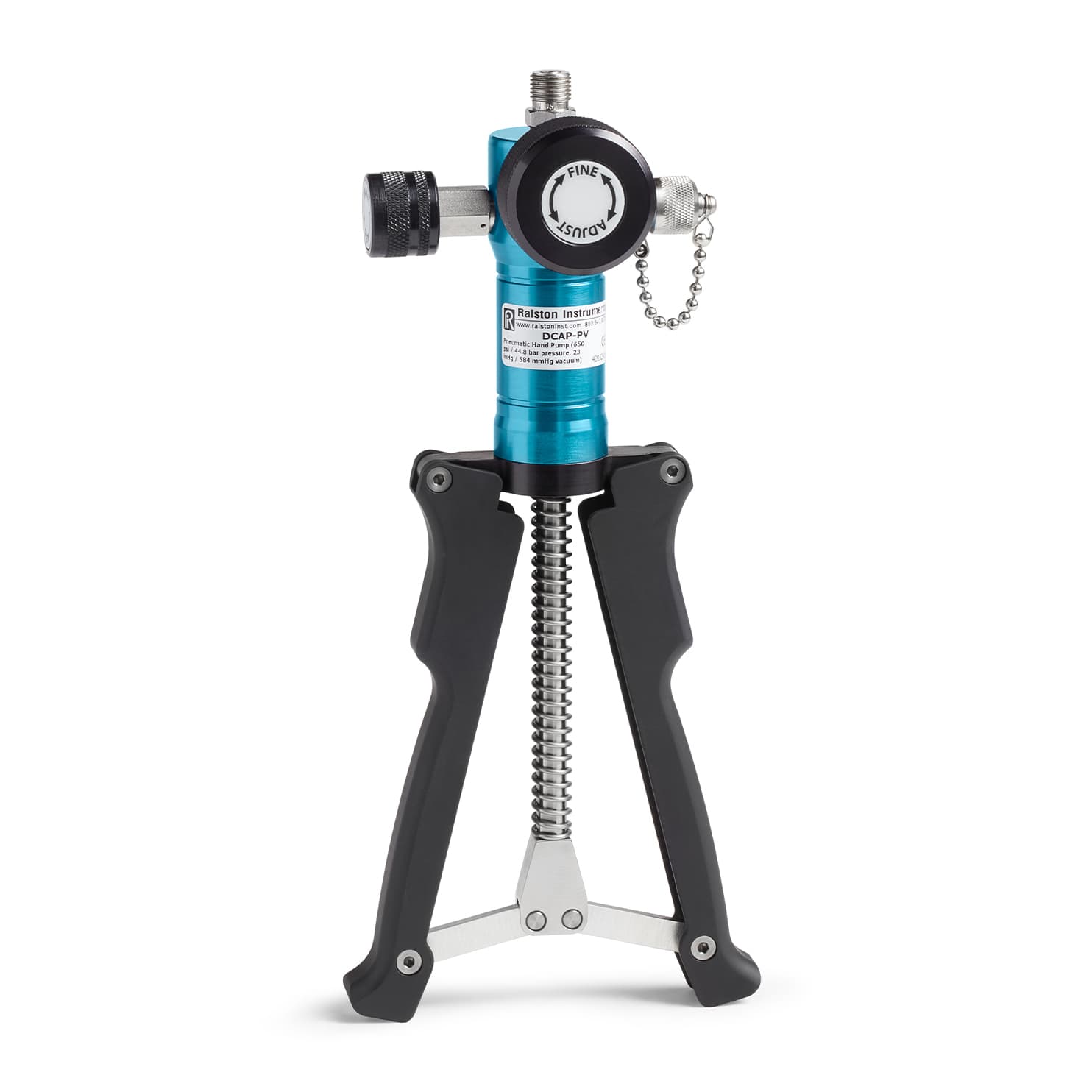

Pneumatic Scissor Hand Pumps

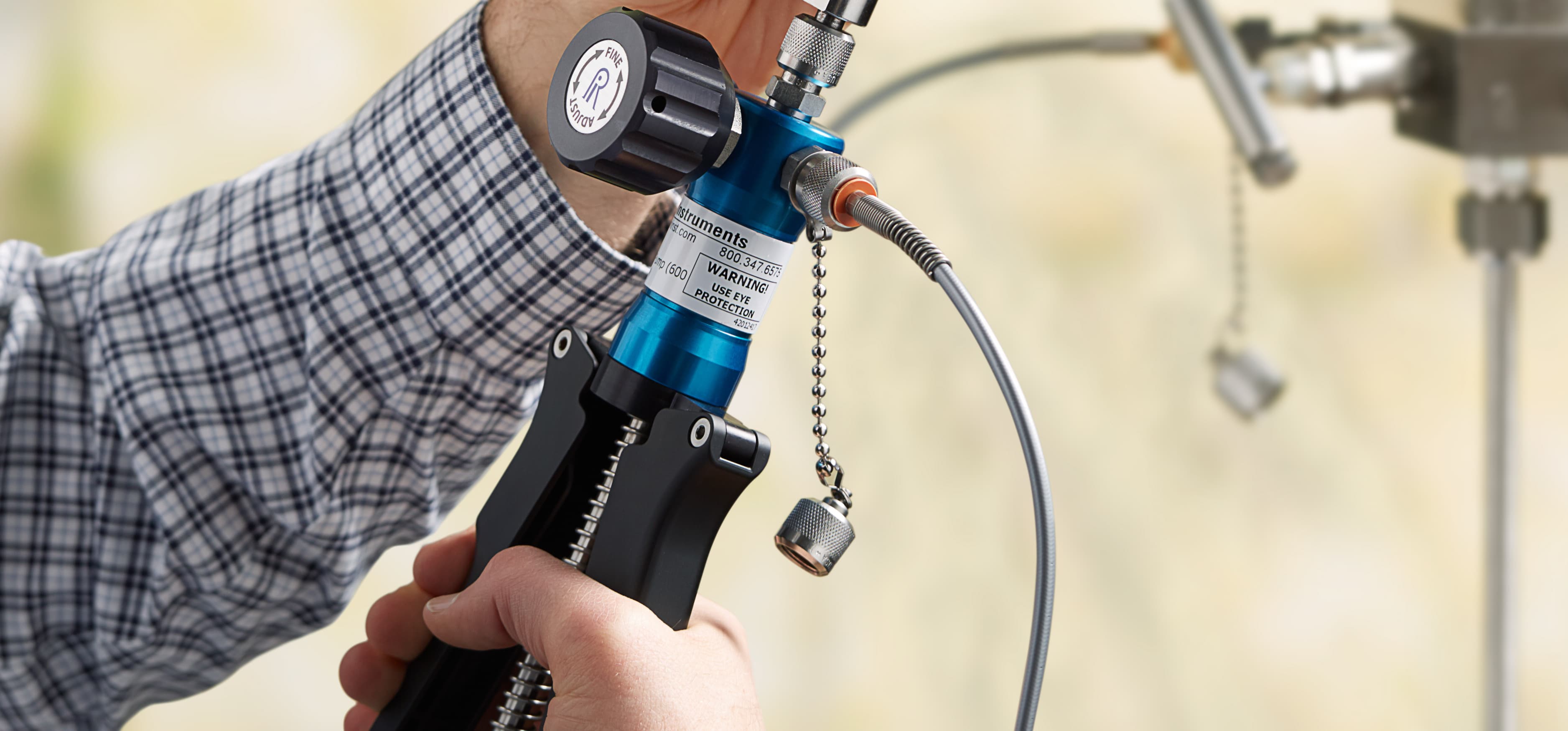

Perform pneumatic field calibrations on pressure transmitters, switches or gauges using an external pressure calibrator as the reference

  • Pressure calibration can be performed without electricity or nitrogen
  • Two outlet ports allow the user to attach pump to both device under test and external pressure reference thus eliminating a tee
  • Fine adjustment piston allows the user to achieve an exact pressure for cardinal point pressure calibrations
  • Precisely vent pressure with soft seated bleed valve
  • Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
  • Rugged, all metal construction improves temperature and pressure stability
  • Made in U.S.A.

Pneumatic Scissor Hand Pumps

Model Max Pressure Materials Seal Materials Min Temperature Max Temperature Process Connection Reference Connection Pressure Reference Max Vacuum Hose 1 Media Compatibility
AP0V-0000 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Teflon
0 °F
130 °F
1/4" Male NPT
None

AP0V-100PSIG-FL 300 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
None
Pressure FieldLab, 500 psi / 35 bar / 3.5 MPa

AP0V-300PSIG-FL 300 PSI
Anodized Aluminum
Plated Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
None
Pressure FieldLab, 300 psi / 20 bar / 2 MPa

APGV-0000 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
1/4" Female NPT
None
0 In Hg

APGV-100PSIG-D 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
1/4" Female NPT
Digital pressure gauge, 100 PSIG Pressure

APGV-200PSIG-D 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
      0 In Hg

APGV-300PSIG-D 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
1/4" Female NPT
Digital pressure gauge, 300 PSIG Pressure

APGV-4GBW 300 PSI
Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
1/4" Male NPT
1/2" Female BSPP (G1/2)
None
  Quick-test Hose, Brass ends, 3ft / 0.9m long
Air
Inert Gas
Natural Gas
Petroleum Based Oil
Water
