Easily Take Low Pressure Gas Samples

Ralston SP0V Gas Sampling Pump

  • Hard Anodized aluminum body and stainless steel fittings so no issues with corrosion, cracking or cross contamination of the sample
  • Inlet and outlet hose has Nylon inner core tube which does not affect the sample
  • Low compression rate will not adversely affect the sample by bringing the gas close to the hydrocarbon dew point
  • Hydrocarbon-free lubricant does not contaminate the sample with any foreign hydrocarbons
  • Designed in accordance with API MPMS Chapter 14.1 on natural gas sampling

Taking Better Gas Samples From Low Pressure Gas Wells

The Ralston SP0V gas sampling pump can take a gas sample from a low pressure or low flow pipeline or well and putting it into a sample cylinder without changing the gas composition or reaching the hydrocarbon dewpoint.

Download Spec Sheet

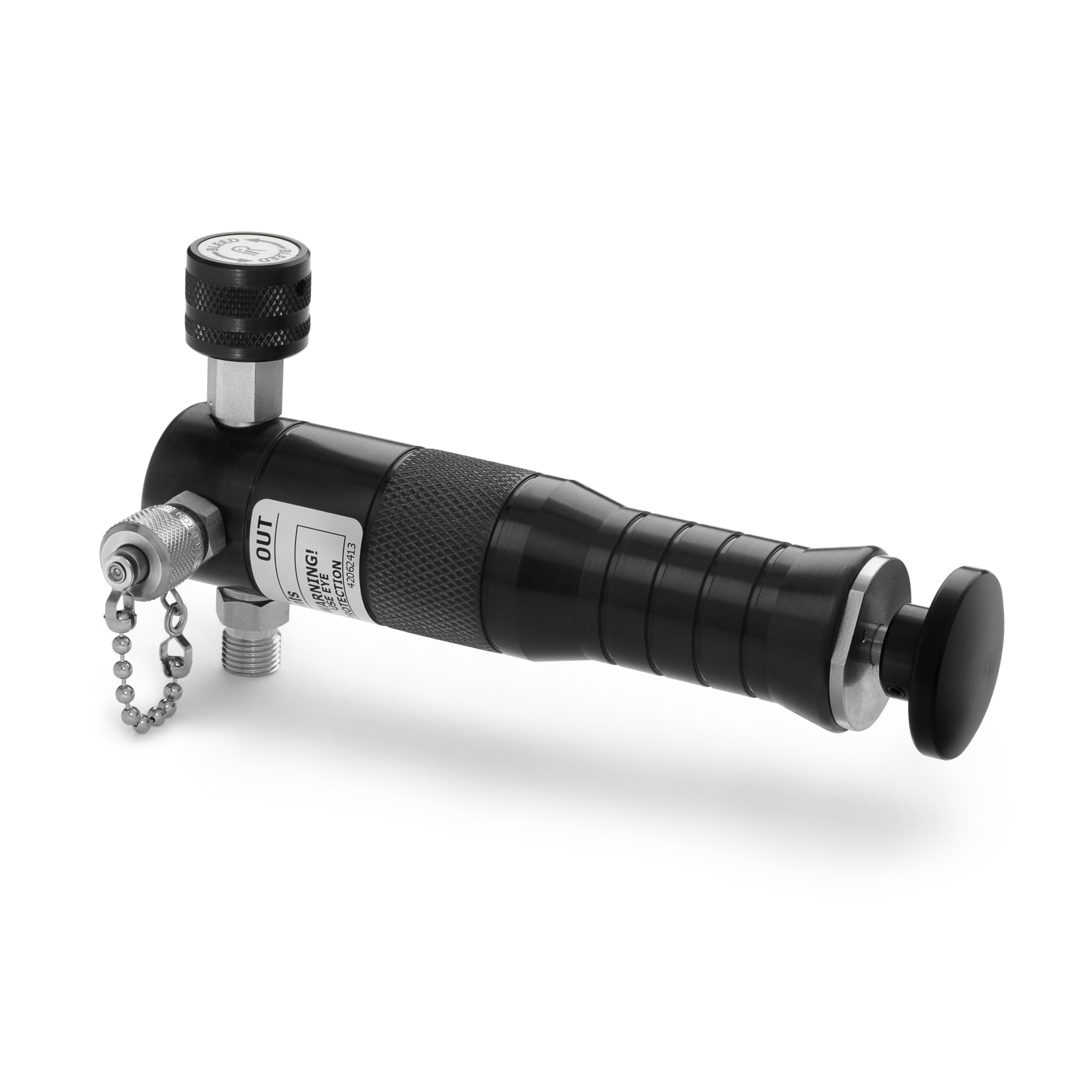

Sp0 V

Gas Sampling Pumps with Gauge Connection

  • 0 - 100 PSI pressure range
  • 6 ft hose 1 & 3 ft hose 2 included
  • Made in US
Model Process Connection
SP0V-1MSA-6-3 1/4
SP0V-2FSA-6-3 1/4
SP0V-2MSA-6-3 1/4
group-5514c2f08cb45 320

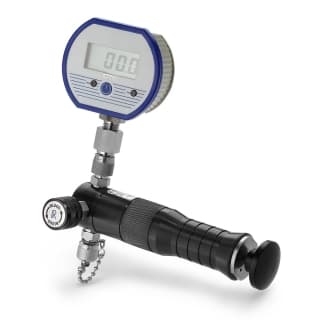

Gas Sampling Pumps Full Calibration Kits - Digital

  • 1/4" Female NPT
  • 6 ft hose 1 & 3 ft hose 2 included
  • Made in USA
Model Max Pressure
SP0V-1MSA-6-3 100 PSI / 7 bar / 700 kPa
SP0V-2FSA-6-3 100 PSI / 7 bar / 700 kPa
SP0V-2MSA-6-3 100 PSI / 7 bar / 700 kPa
Looking for product pricing and availability?
Contact us for a quote and we'll be in touch.
Get a Quote
