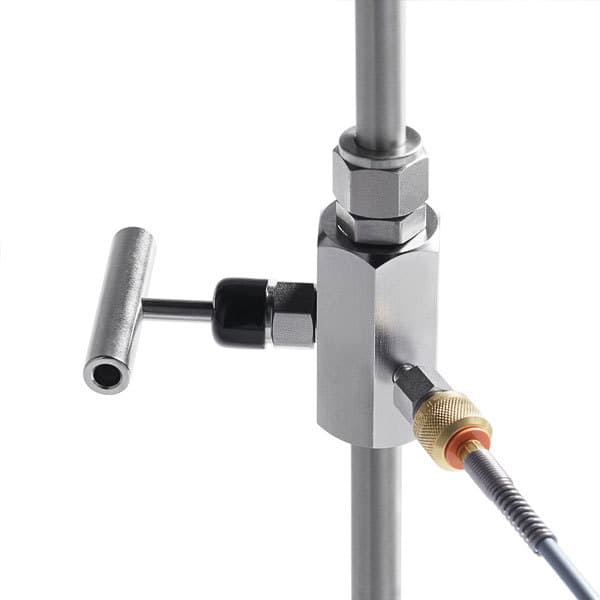

Bleeder Screw Adapters

A new range of Bleeder Screw Adapters allow users to access pressure transmitters without removing them from the process. These adapters thread into the block and bleed valve where the bleeder screw normally goes. They can then be used to pressurize a transmitter for calibration and testing after it has been isolated from the process.



Rosemount 306 In-line Series

Model Max Pressure Connection Connection Materials
QTHA-RGS0 5,000 psi / 345 bar / 34 MPa M8 x 1.0 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTFT-RGS0 5,000 psi / 345 bar / 34 MPa M8 x 1.0 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel


Anderson Greenwood M25 and M251 Series

Model Max Pressure Connection Connection Materials
QTHA-FRS0 5,000 psi / 345 bar / 34 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTFT-FRS0 5,000 psi / 345 bar / 34 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
XTHA-FRS0 10,000 psi / 689 bar / 69 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test XT Stainless Steel
XTFT-FRS0 10,000 psi / 689 bar / 69 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test XT Stainless Steel


Noshok 600 Series, 700 Series, 2070 Series, 2170 Series

Model Max Pressure Connection Connection Materials
QTHA-NPS0 5,000 psi / 345 bar / 34 MPa 1/4-20 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTFT-NPS0 5,000 psi / 345 bar / 34 MPa 1/4-20 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel


Parker PGI V-526 and V-527 Series

Model Max Pressure Connection Connection Materials
QTHA-NPS0 5,000 psi / 345 bar / 34 MPa 1/4-20 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTFT-NPS0 5,000 psi / 345 bar / 34 MPa 1/4-20 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
