Part Number: QTVC-1KPSIG-FL

Calibration kit, QTVC volume controller, 1000 psi / 70 bar / 7 MPa FieldLab (0.1% of Reading Accuracy)

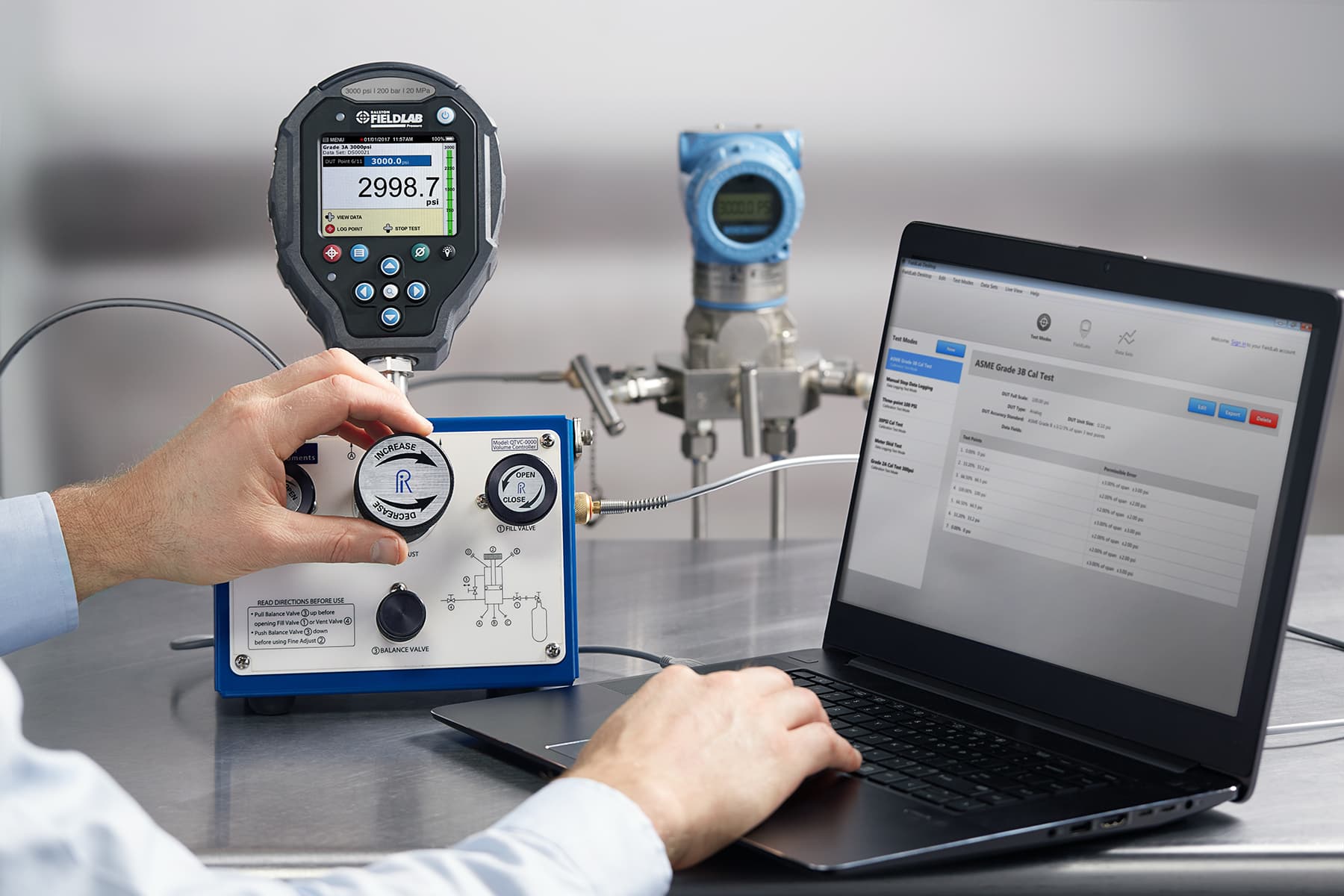

Connect to and calibrate both very low or high pressure instrumentation using included volume controller and pressure gauge

  • Volume Controller: QTVC Volume Controller
  • Pressure Reference: Pressure FieldLab, 1000 psi / 70 bar / 7 MPa, Female Quick-test bottom connection
  • Process Connection 1: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Process Connection 2: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose 1: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
  • Hose 2: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
