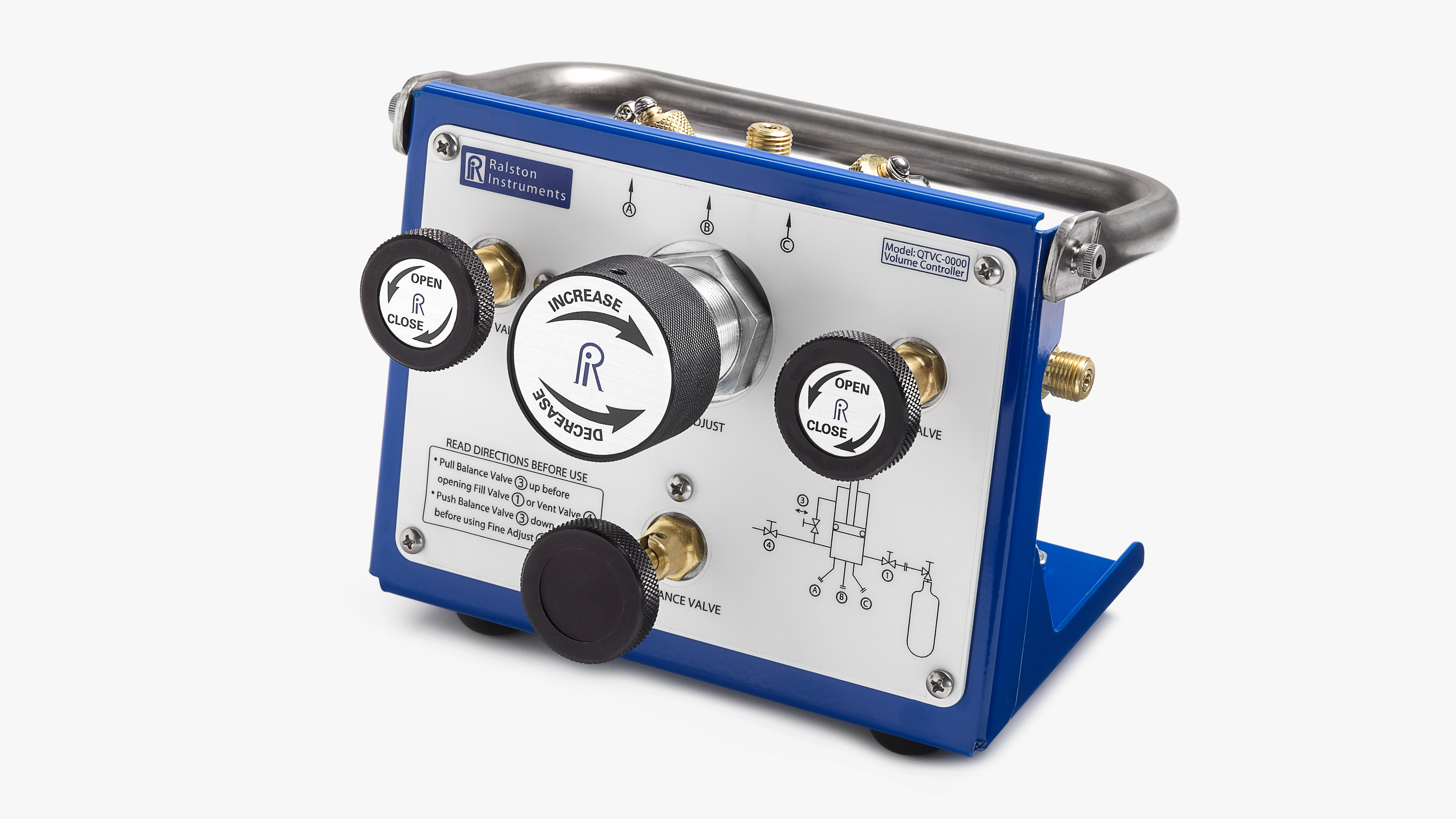

Volume Controllers

Perform both ultra-precise low-pressure differential or high-pressure static pressure calibrations with nitrogen using the same device with an external pressure calibrator

  • Proprietary pressure balanced fine adjustment piston allows for extremely precise, finger-tip control of pressure at 0.03 psi (2 mbar) or 3000 psi (210 bar) or any range in between.
  • Fine adjust piston, fill, balance and vent valves are in one light weight, compact unit
  • Includes handle, Quick-test Systemâ„¢ outlet connections, hoses and adapters
  • Low volume Quick-test hose, gauge adapter and process connection can be attached to QTVC without thread sealant or a wrench
  • Soft-seated valves make filling and venting the system very precise
  • Included stand for laboratory or table top use (QTVC-LKIT)
  • Optional padded strap for field use (NPAK-STRP)
  • Made in U.S.A.

Volume Controller Models

Model Max Pressure Reference Connection Process Connection Hose 1 Hose 2
QTVC-0000-0-0 3,000 psi / 207 bar / 21 MPa None None None None

Volume Controller with hoses (ft) and adapters

Model Max Pressure Reference Connection Process Connection Hose 1 Hose 2
QTVC-1MBA-6-3 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
QTVC-2MBA-6-3 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
QTVC-2FBA-6-3 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long

Volume Controller with hoses (m) and adapters

Model Max Pressure Reference Connection Process Connection Hose 1 Hose 2
QTVC-1MBA-2m-1m 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT 1/4" Male NPT Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long
QTVC-2MBA-2m-1m 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT 1/4" Male NPT Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long
QTVC-2FBA-2m-1m 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT 1/4" Male NPT Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long
QTVC-2FBA-RG-2m-1m 3,000 psi / 207 bar / 21 MPa 1/4" Female BSPP (G1/4) 1/4" Female BSPP (G1/4) Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long
QTVC-3FBA-RG-2m-1m 3,000 psi / 207 bar / 21 MPa 3/8" Female BSPP (G3/8) 1/4" Female BSPP (G1/4) Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long
QTVC-4FBA-RG-2m-1m 3,000 psi / 207 bar / 21 MPa 1/2" Female BSPP (G1/2) 1/4" Female BSPP (G1/4) Quick-test Hose, Brass ends, 2m long Quick-test Hose, Brass ends, 1m long

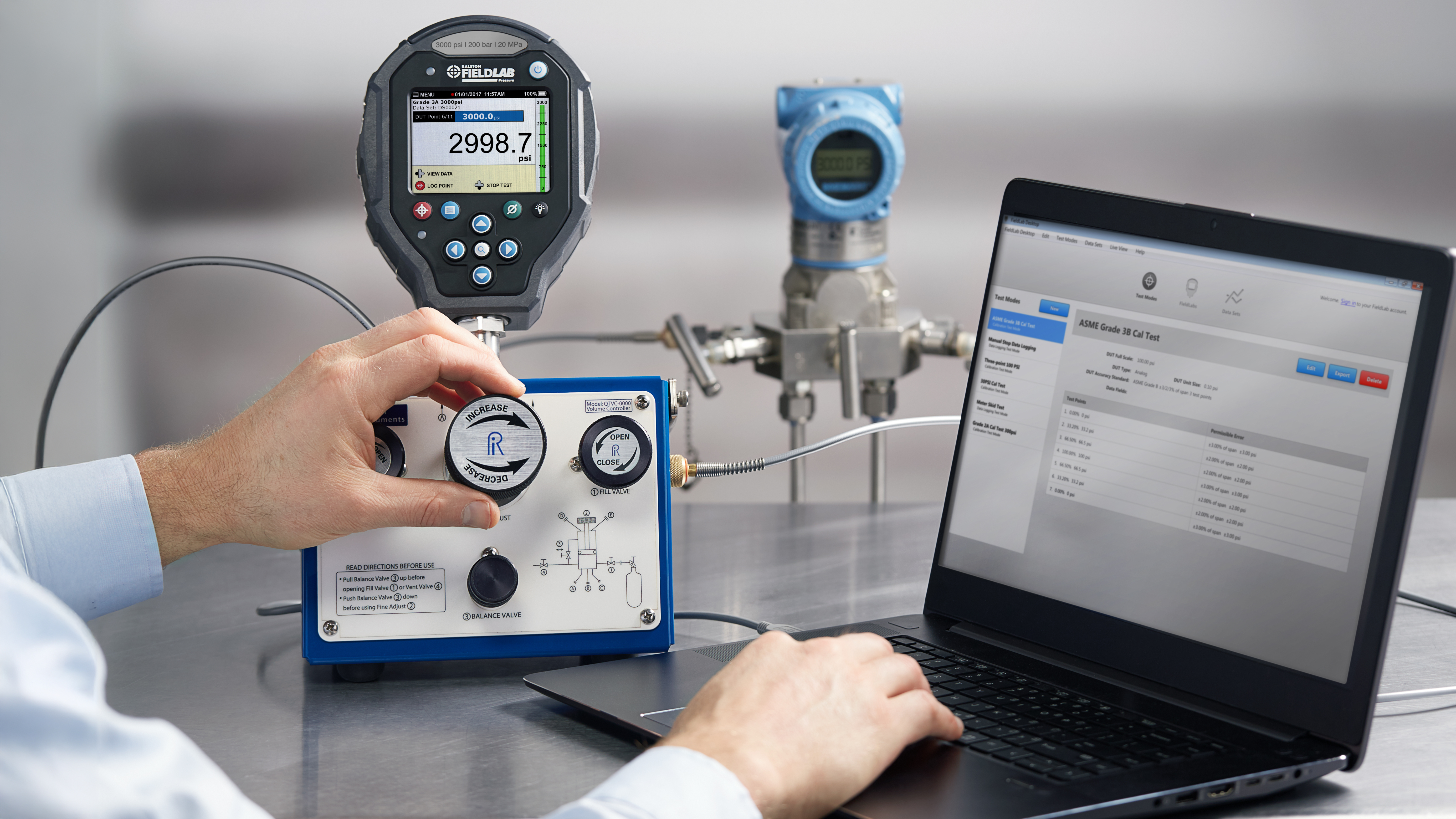

Volume Controller with FieldLab Gauge

Model Max Pressure Process Connection Hose 1 Hose 2
QTVC-500PSIG-FL 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
QTVC-1KPSIG-FL 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
QTVC-3KPSIG-FL 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long

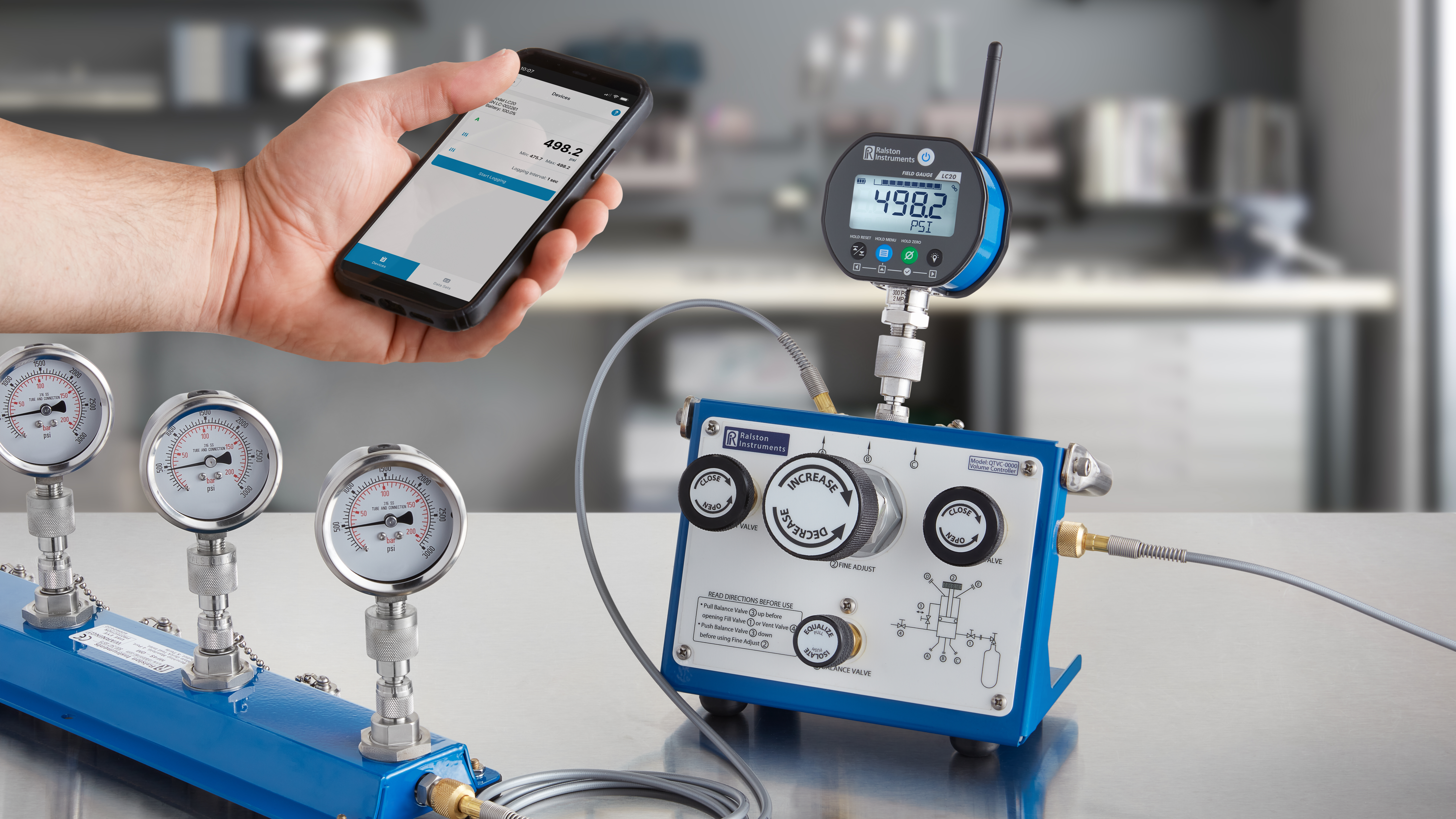

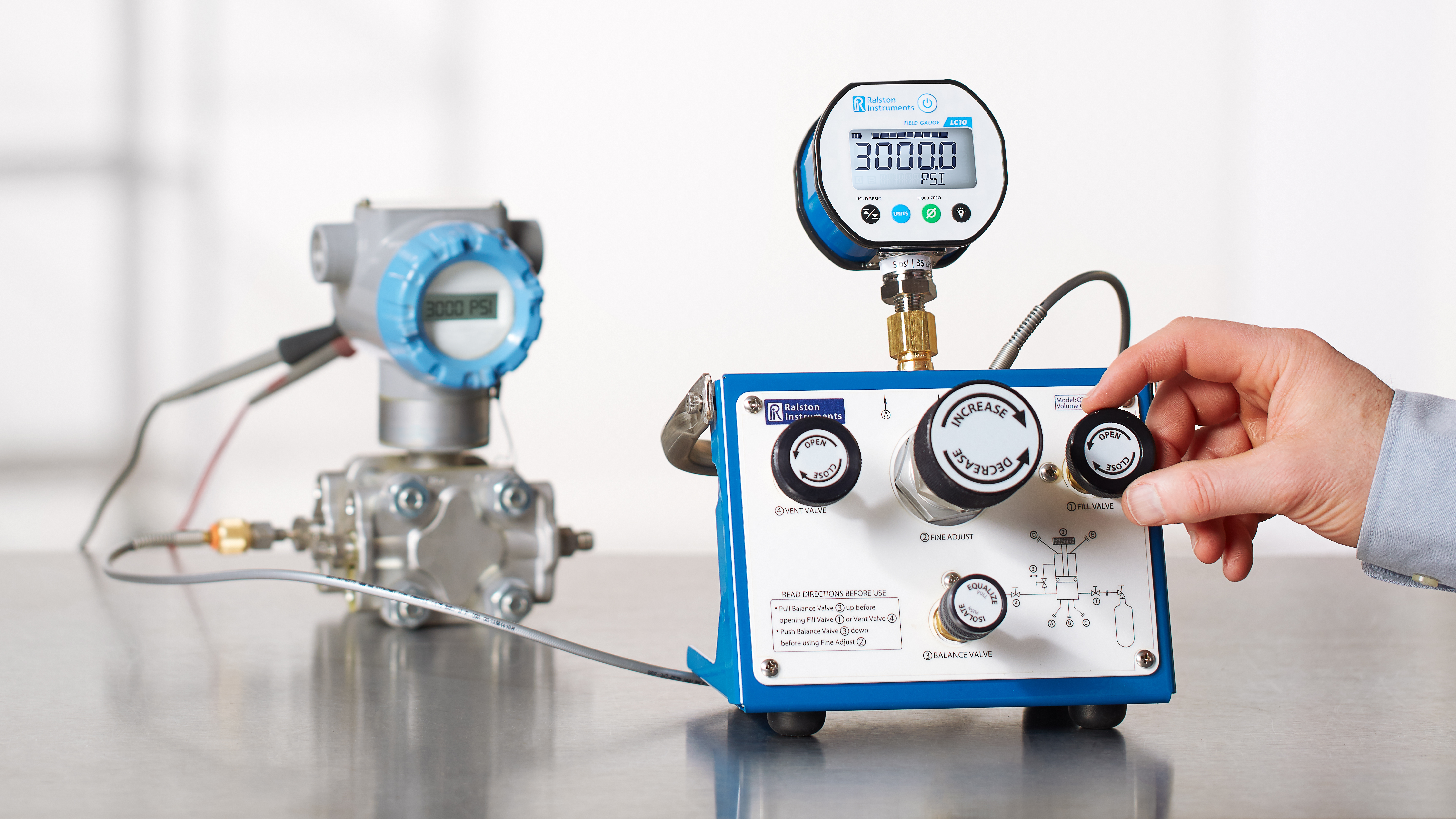

Volume Controller with Digital Gauge

Model Max Pressure Reference Connection Process Connection Hose 1 Hose 2
QTVC-1KPSIG-D 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
QTVC-3KPSIG-D 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT 1/4" Male NPT Quick-test Hose, Brass ends, 6ft / 1.9m long Quick-test Hose, Brass ends, 3ft / 0.9m long
