How to Improve Traceability and Consistency in Calibration

What is Traceability?

Traceability is how your results are traceable back to International standards. This includes:

  1. The calibration of your reference
  2. The frequency of calibrations
  3. The standardized workflow and documentation

Keeping Up with Increased Traceability Requirements

Regulatory demands have made the maintenance and calibration of process control instrumentation harder and harder. As the requirements of traceability have increased it has put more burden on those who manage these systems to keep track of more information on both the reference device, device under test, serial numbers and other data. This greater scrutiny has fallen on the instrumentation used on pipelines, refineries, pharmaceutical plants and other process control industries to measure the flow of liquids and gasses. Because of this added traceability requirement, it has grown more difficult to manage instruments in these industries.

Ralston FieldLab Digital Pressure Calibrator System

Whether you are calibrating analog pressure gauges, digital transducers or transmitters the Ralston FieldLab Digital Pressure Calibrator system produces better pressure calibrations. Calibrations have more traceable results using our test templates, custom labels and the ability to export PDF and CSV reports. A complete, end to end digital workflow helps eliminate pencil and paper while standardizing workflows across your team.

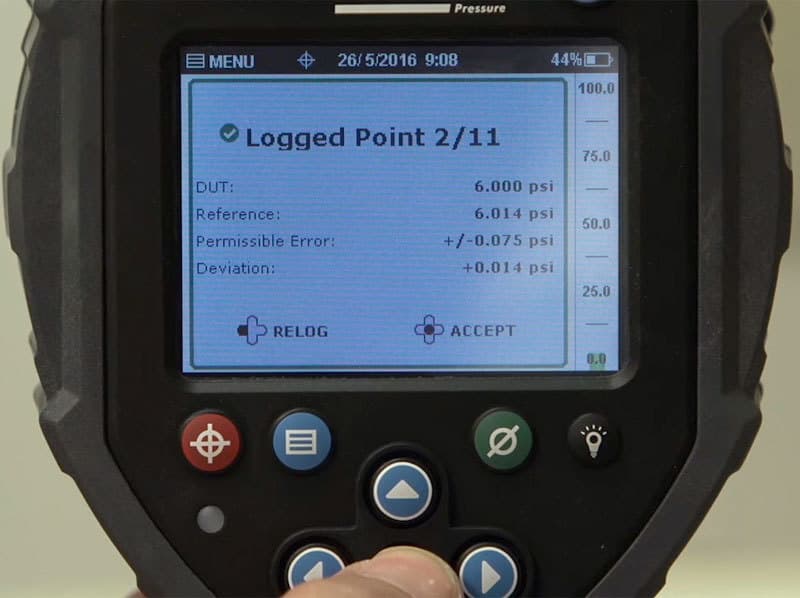

Fieldlab Log Point

Load your Test Templates directly onto a FieldLab with Test Modes

Standardize pressure calibration using Test Mode templates that are consistent across your company. The Ralston FieldLab Digital Pressure Calibrator system allows users to create pressure calibration templates for each type of pressure device. This allows every technician at a company to be consistent in how they perform calibration of pressure instruments. Templates allow measurement supervisors to create specific templates for each type of device whether analog, digital and with either percent of span or percent of reading stated accuracy.

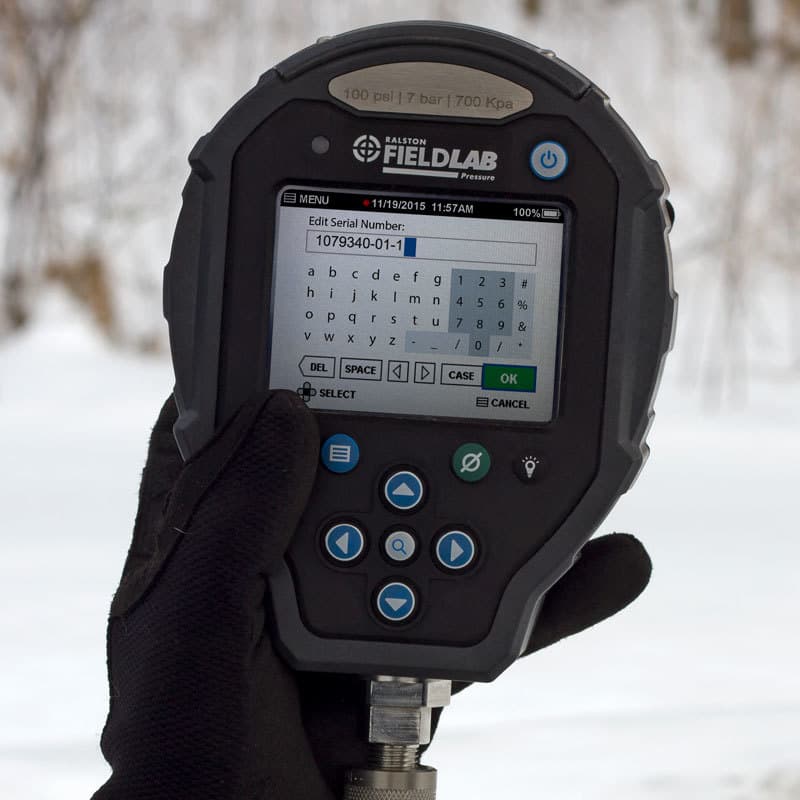

Fieldlab Custom Labels

Get Greater Information Visibility with Custom Labels

Test Modes can be customized with Custom Labels for data fields that are important to your workflow and documentation system. Custom Labels allow the field technician to enter information about the Device Under Test directly into the FieldLab while in the field. Information such as Serial number, location, tag number, or any information that the company decides is required can be entered using the on-screen keyboard. This assures that data collected for one test is not mixed up with data from another test.

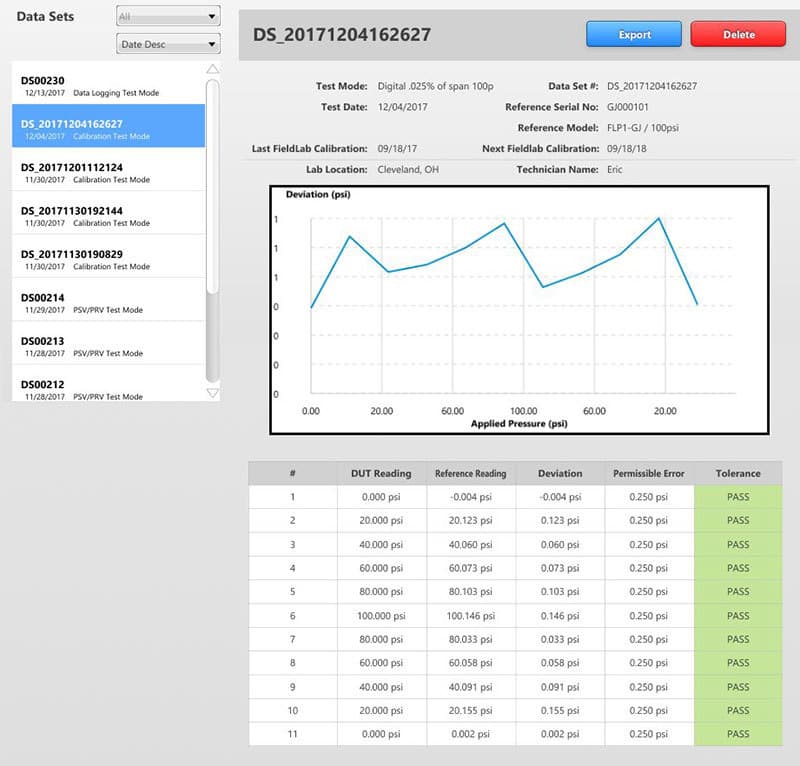

Fieldlab Calibration Test

Exporting Results

When data is imported back into the Desktop software at the end of a day of performing calibrations all the information on each device calibrated appears in the report along with the pressure reference traceability information, a graph and chart of the results. Additional custom information such as the technician performing the test, customer name, tag or serial number information also appears. Data can be exported in PDF or CSV format that is customized to the customer's requirements.

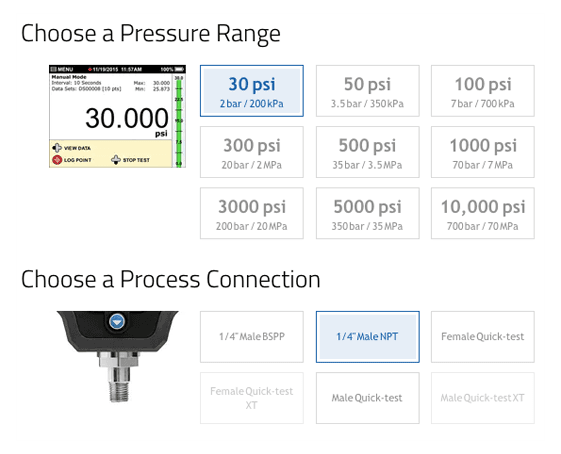

Customize Your Ralston FieldLab Model

Digital Pressure Calibrator

With 0.1% accuracy, you can cover a wide range of reference accuracy requirements. Find the FieldLab model that matches your calibration needs. Models available from 30 psi through 10,000 psi

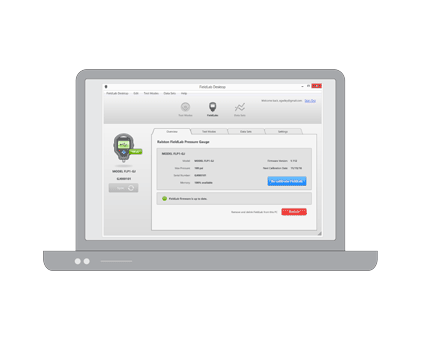

Ralston FieldLab Desktop Calibration Software

Calibration Software

The Ralston FieldLab Desktop Calibration Software for Windows is used to manage your Test Modes and Custom Labels. This is a FREE companion tool to create and manage your Test Modes. Give it a try.
