LC10 temp probe

Field Gauge LC10-TA Digital Probe Thermometer

No Glass. No Mercury. No Problem.

The new Field Gauge LC10-TA Digital Probe Thermometer is a handheld, general-purpose digital temperature probe that generates reliable, accurate readings across a wide range of temperatures. Featuring a rugged, stainless steel probe, the LC10-TA thermal probe is a practical alternative to glass temperature probes, which can break easily, putting field techs and operations at risk for mercury exposure.

Designed as a portable, easy-to-use device, the LC10-TA Digital Probe Thermometer is an ideal choice for lab personnel, I&E and hydrostatic technicians, and anyone involved in temperature monitoring in non-hazardous locations.

Field Gauge LC10-TA Digital Probe Thermometer Applications

  • General temperature monitoring where live reading and logging is required

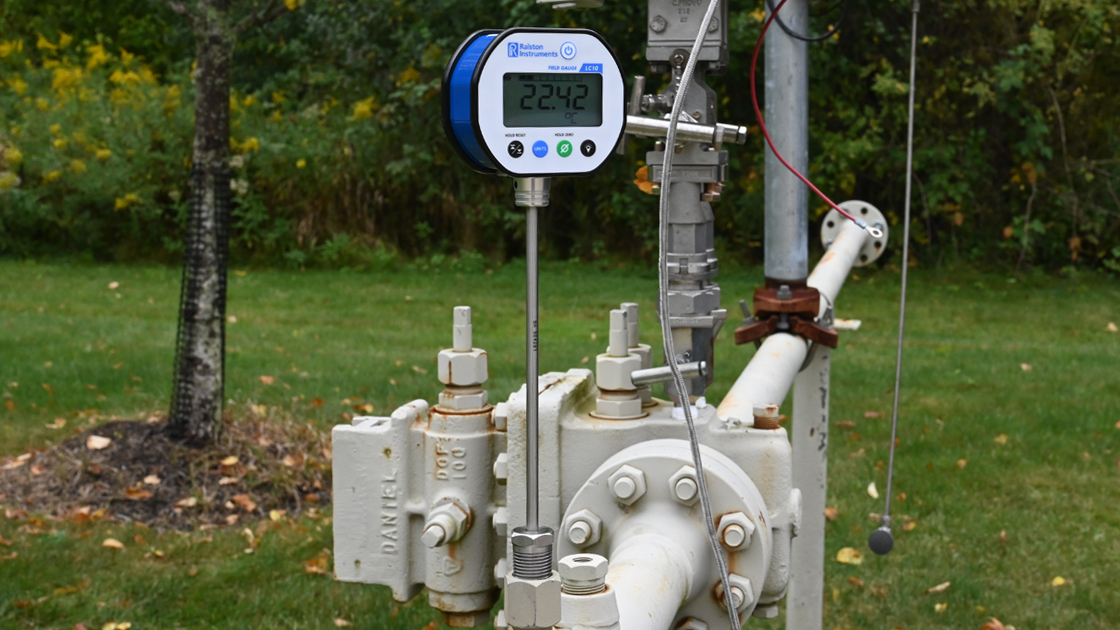

  • Temperature and pressure logging during hydrostatic and leak testing

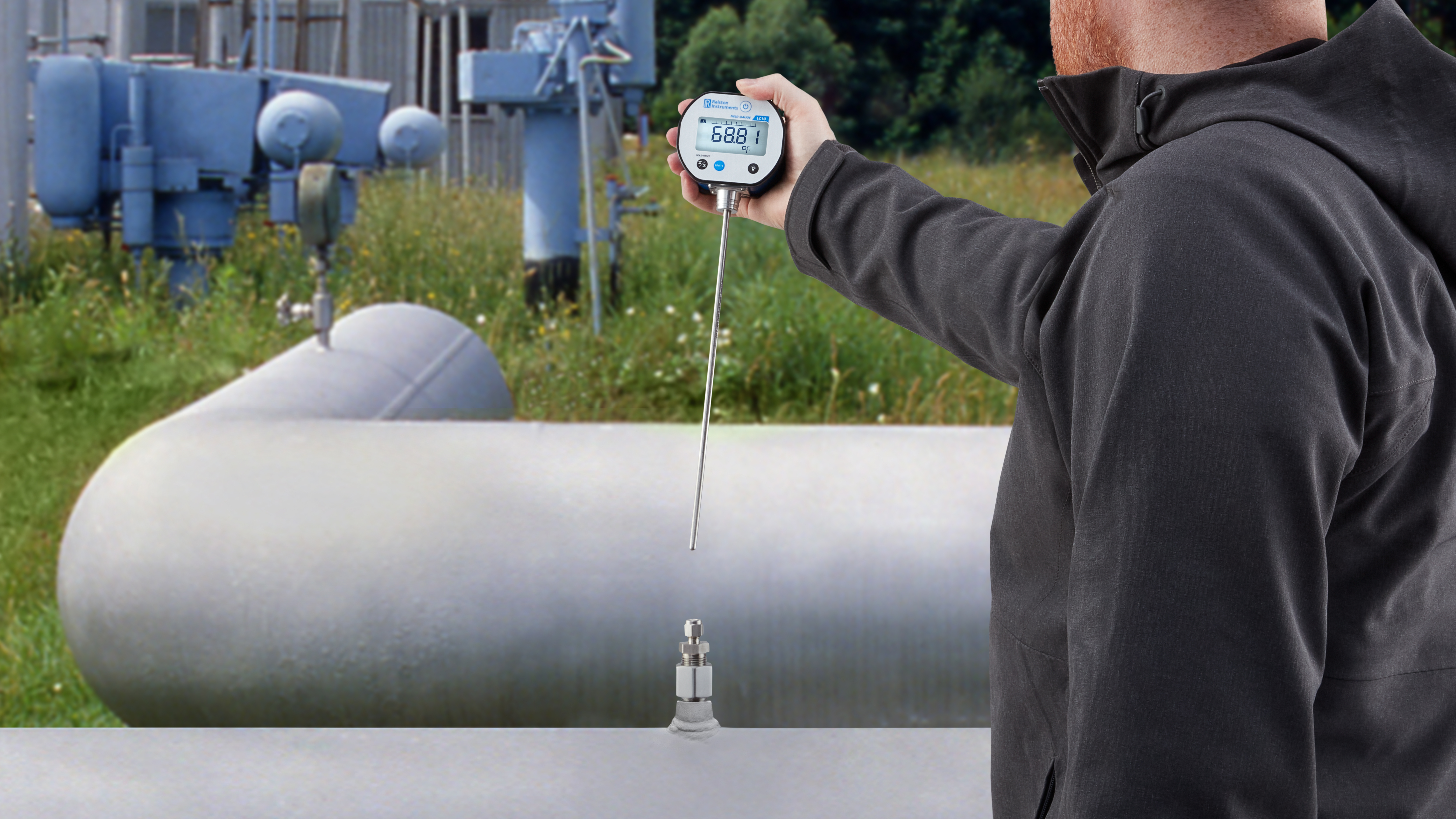

  • Temperature measurement during pressure calibration in non-hazardous locations
RI LP Digital Probe Thermometer

Field Gauge LC10-TA Digital Probe Thermometer Features

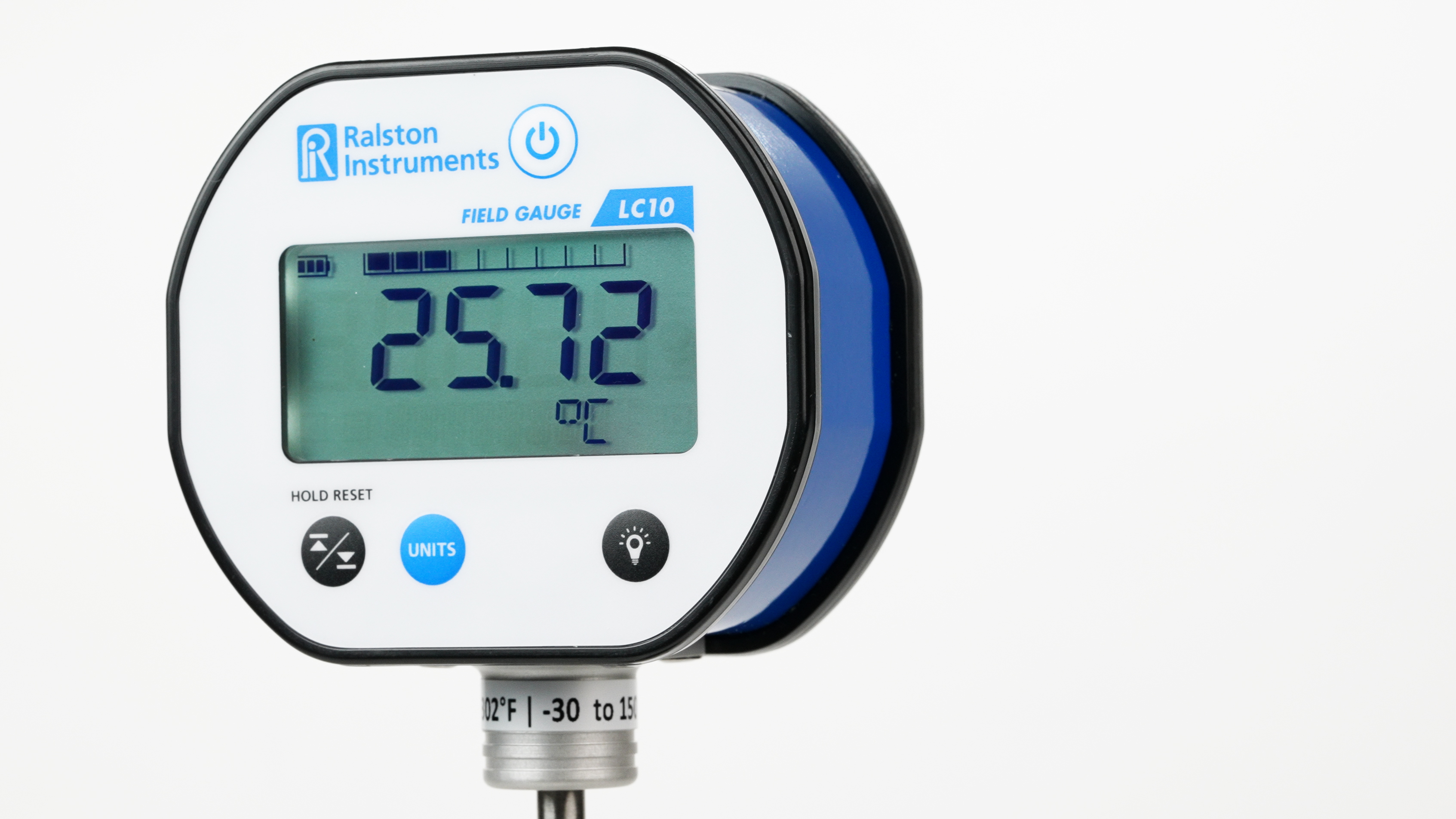

  • Large, easy-to-read display with intuitive controls and bright backlight
  • Exceptional durability - It withstands abuse and cracking and is waterproof to 1 meter (IP67)

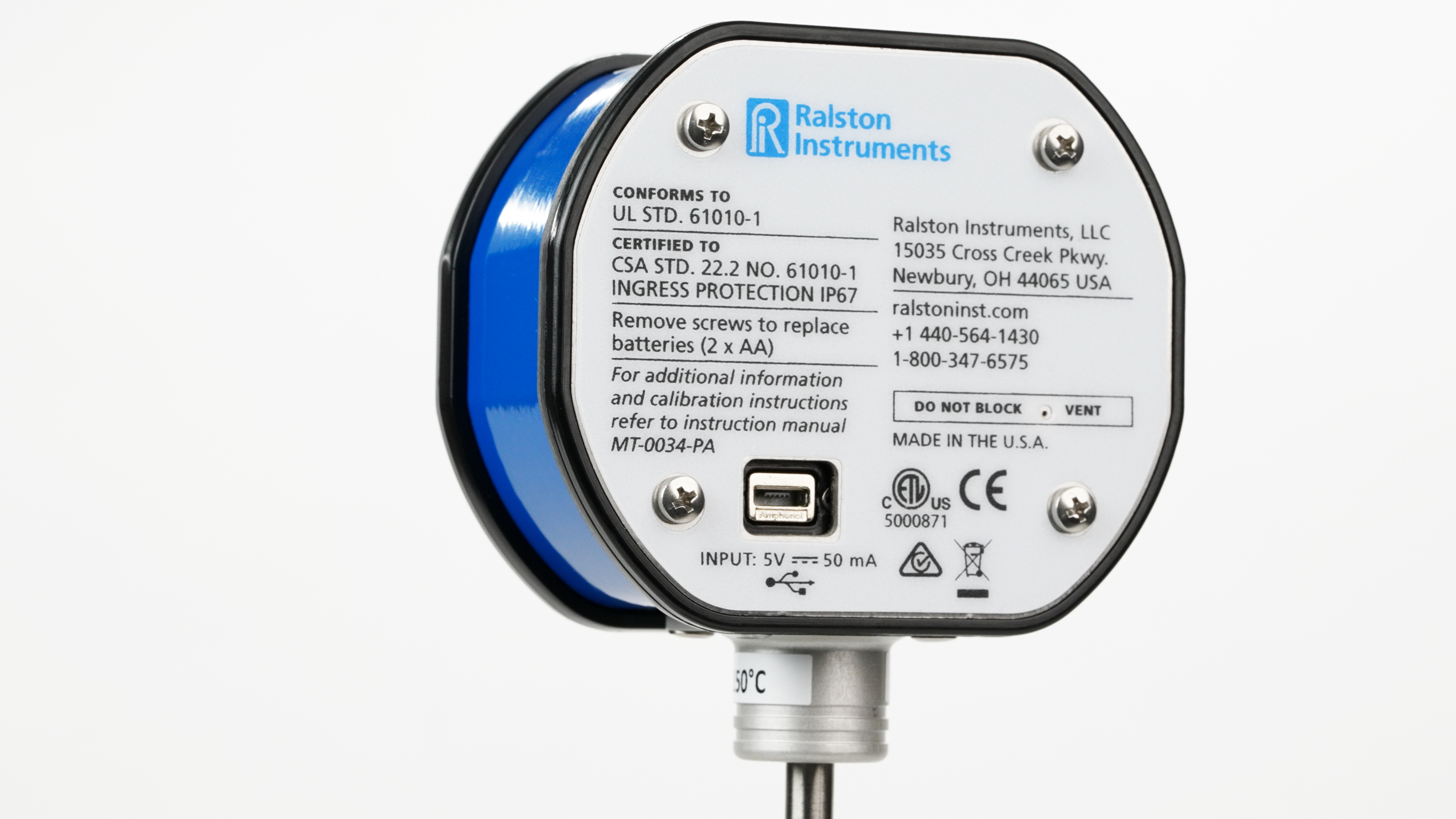

  • USB connectivity allows you to log temperature and view live readings on your PC via USB using the included FieldLab Desktop software
  • Customization options that make it easy to switch from among 4 standard engineering units
  • Convenient High / Low function that clearly displays the highest and lowest pressure reached
  • Temperature Accuracy of IEC 60751 Class A (+/- (0.15 +0.002*|t|)°C)
  • Wide temperature range of -30 to 150°C (-22 to 302°F)
  • Certified to CSA Standard 22.2 61010-1
  • Made in the USA

Configure a Digital Probe Thermometer

Digital Probe Thermometers come in a variety of different configurations. Choose which bundle is right for your application.

Configure Your Model

Benefits of Using the LC10-TA

Speed

In general, digital probe thermometers provide instant results on the spot. But the LC10-TA thermal probe also provides real-time feedback through USB - a huge advantage when you’re measuring temperature during test for live data logging.

Safety

Mercury is a potent neurotoxin which is a dangerous contaminant, and glass is extremely fragile, so the risks in using a traditional glass thermometer probe are high. Using an industrial thermometer like the LC10-TA completely eliminates the possibility of mercury contamination, not to mention the high cost involved in cleanup.

Accuracy

When it comes to accuracy in temperature measurement, digital technology far outweighs its glass/mercury counterparts. With its large, bright LCD, readings on the LC10-TA temperature gauge are front and center - there’s no guesswork involved. And with an accuracy level of IEC 60751 Class A (+/- (0.15 +0.002*|t|)°C), you can expect clear, precise readings every time.
