In-line Vent Valves

  • Features
  • Models
  • Specifications
  • Certifications

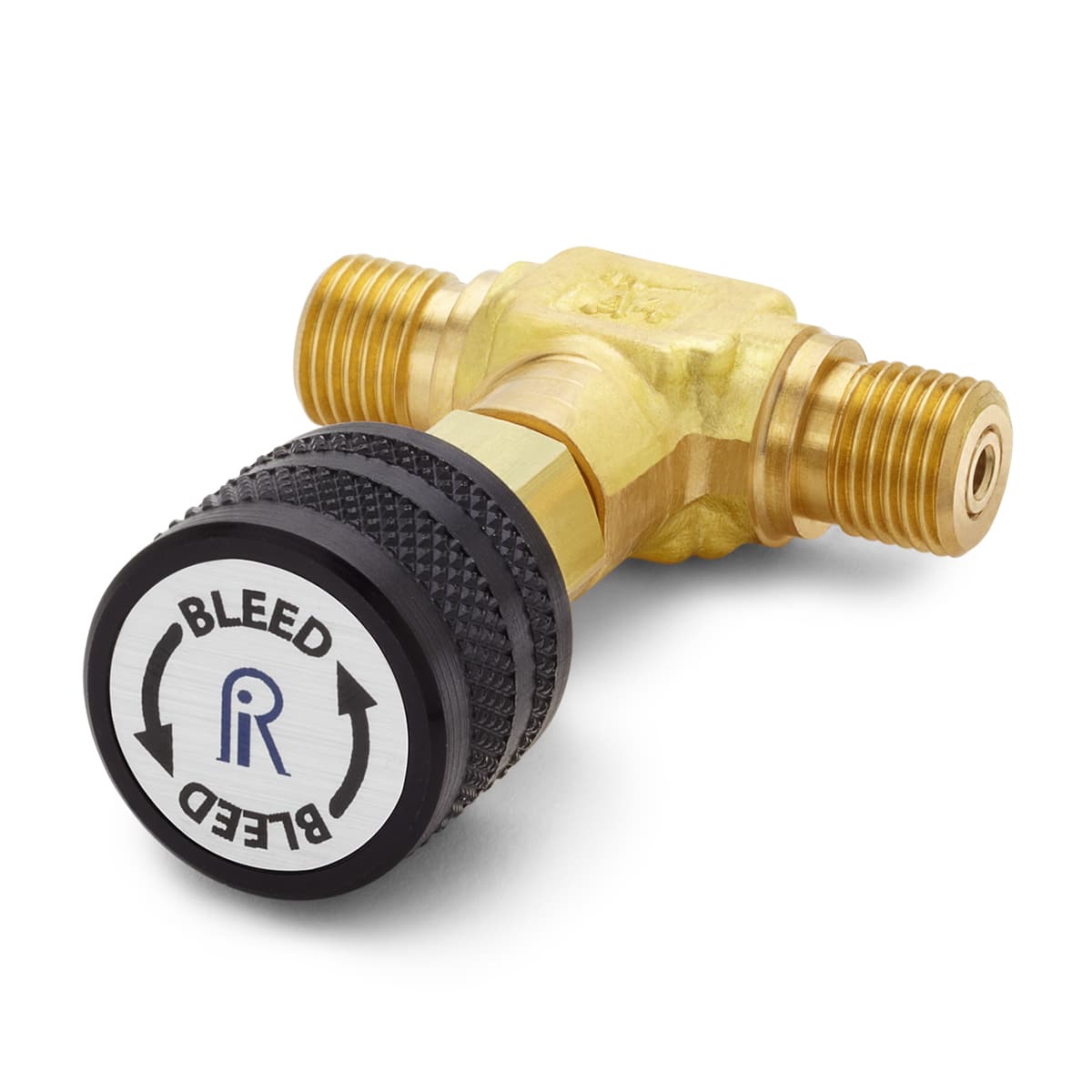

Part Number: QTHA-TVLB

Male Quick-test x male Quick-test in-line vent valve, brass

Use to slowly or quickly bleed pressure from a line after a calibration is complete

Download DatasheetNeed help? Contact Us

Specifications

Weight3.87 oz / 110 grams
Length2.47 in / 63 mm
Width1.83 in / 47 mm
Height1 in / 26 mm
Country of originUSA
Has Vent ValveYes
MaterialsBrass
Max Operating Temperature225 °F / 105 °C
Max Pressure3000 PSI / 200 bar / 20 MPa
Max Vacuum0 InHg / 0.0 kPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N, Delrin
End 1 Connector
Male Quick-test
End 1 DirectionLeft
End 2 Connector
Male Quick-test
End 2 DirectionLeft

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
