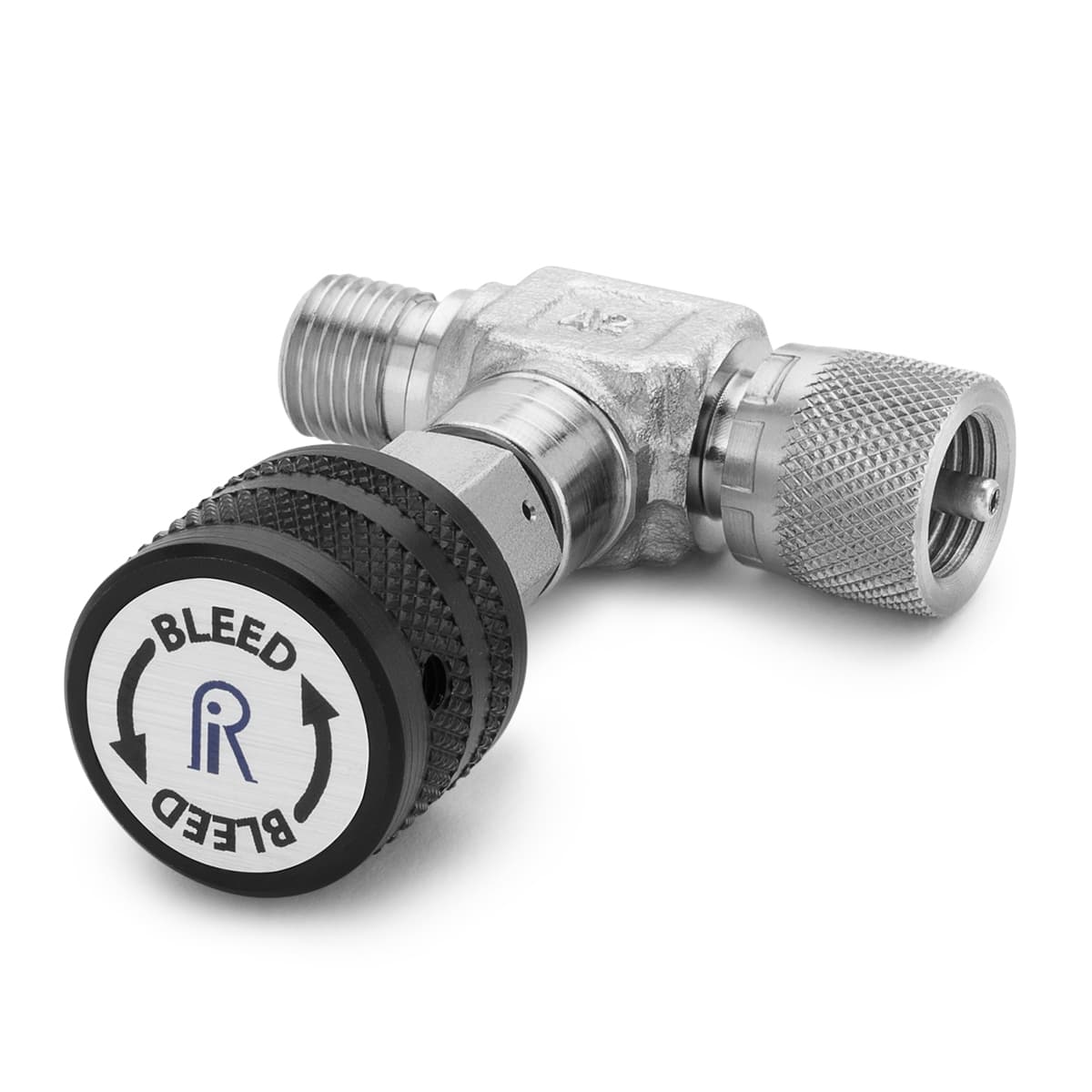

Part Number: QTHA-TVLS-HC
Male Quick-test x female Quick-test in-line vent valve, S.S.
Use to slowly or quickly bleed pressure from a line after a calibration is complete
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 4.66 oz / 130 grams |
|---|---|
| Length | 2.52 in / 65 mm |
| Width | 2.03 in / 52 mm |
| Height | 1 in / 26 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Dimensions B | 0 In / 0.00 mm |
| Has Vent Valve | Yes |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N, Delrin, Teflon |
| End 1 Connector | Male Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Female Quick-test |
| End 2 Direction | Left |
