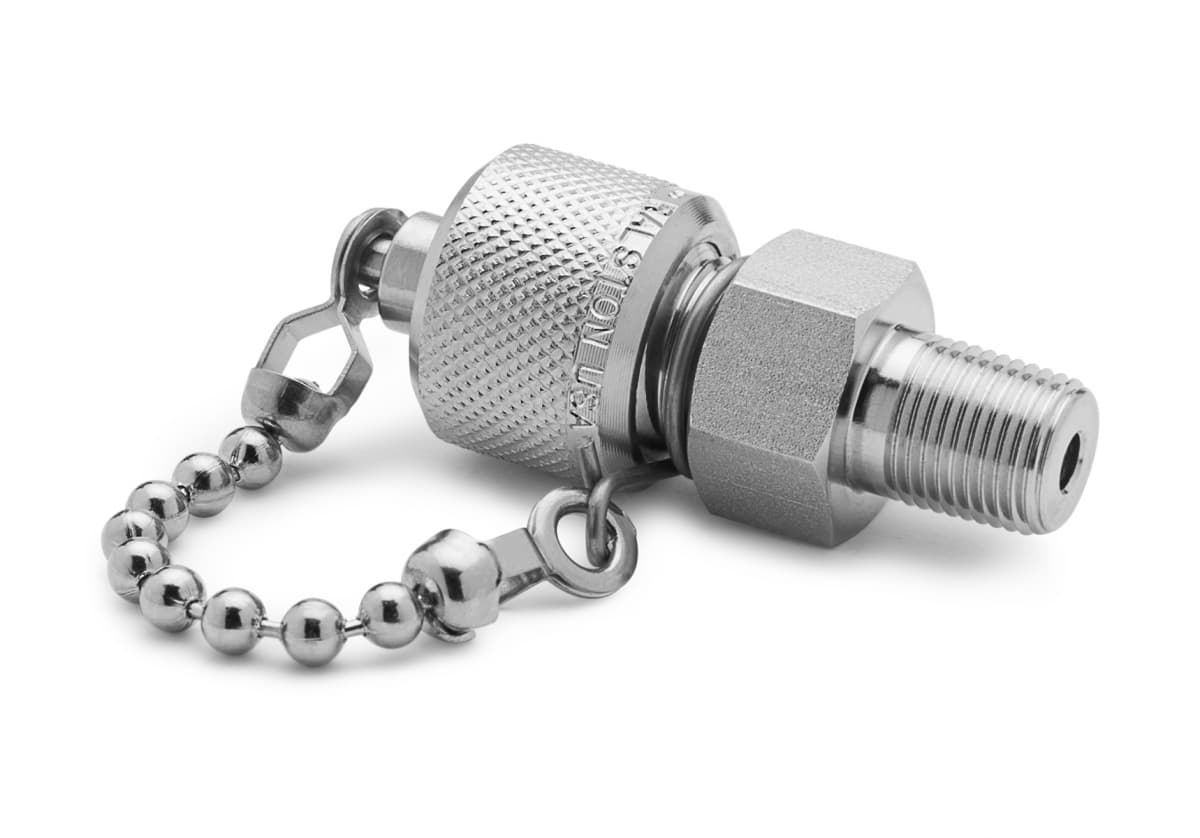

Part Number: XTFT-1MS0
1/8" male NPT x male Quick-test XT, no check-valve, with cap and chain, S.S.
Connects Female NPT to Quick-test XT 10,000 psi hoses for permanent installation
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 8.48 oz / 240 grams |
|---|---|
| Length | 2.47 in / 63 mm |
| Width | 2.45 in / 63 mm |
| Height | 2.09 in / 54 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 5/8 In / 16 mm |
| Wrench Size | 16 mm / 5/8 in |
| End 1 Connector | Male Quick-test XT |
| End 1 Cap and Chain | Yes |
| End 1 Direction | Left |
| End 2 Connector | 1/8" Male NPT (ASME B1.20.1) |
| End 2 Direction | Left |
