Pressure / Temperature Gauges

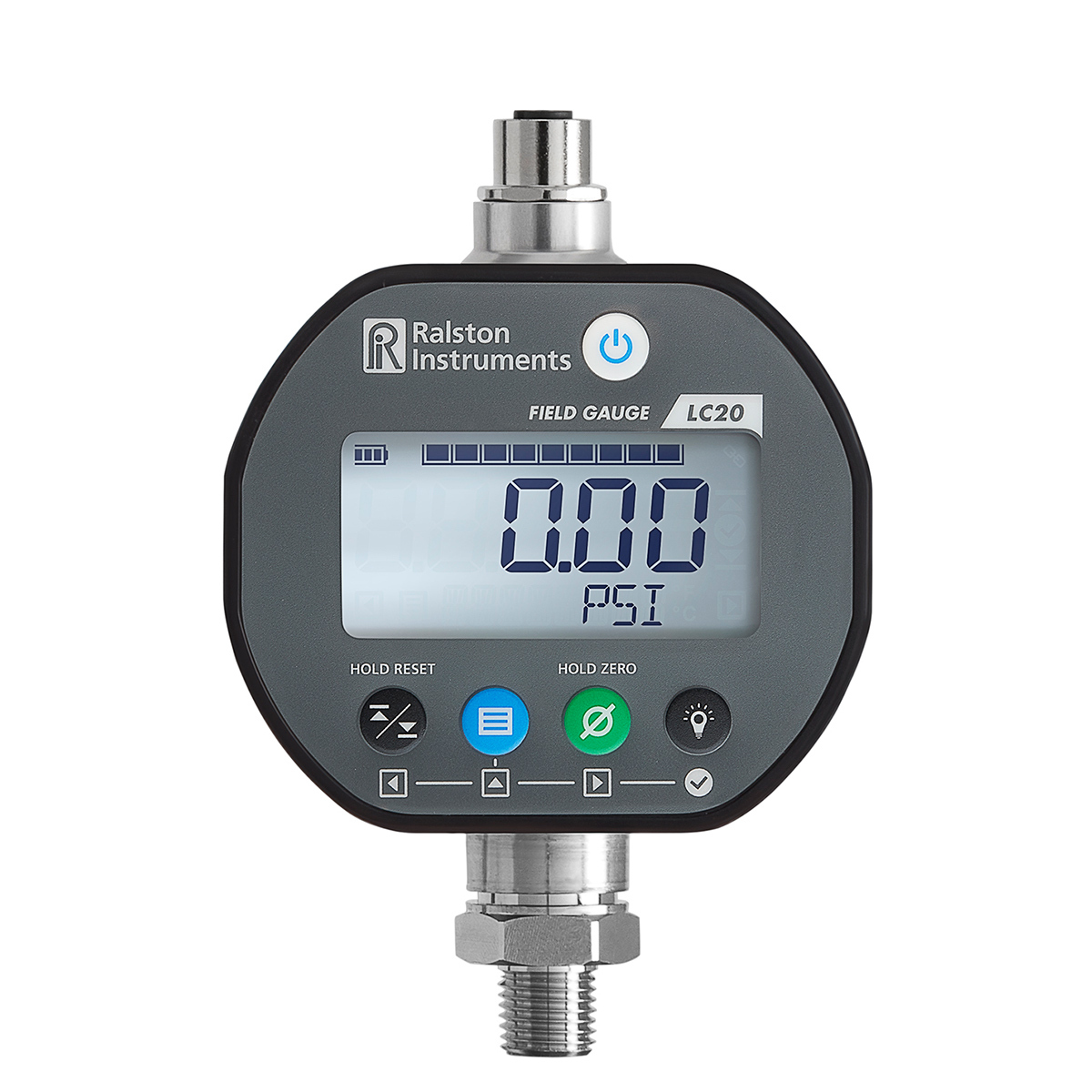

Field Gauge LC20
Process Meter LC30
| Specifications | Field Gauge LC20 | Process Meter LC30 |
|---|---|---|
| Accuracy | ± 0.1% of Full Scale | ± 0.1% of Full Scale |
| Pressure Range | ±15 psi (35 kPa) to 30,000 psi (205 Mpa) | ±15 psi (35 kPa) to 30,000 psi (205 Mpa) |
| Temperature Range | -22 to 302°F (-30 to 150°C) | -22 to 302°F (-30 to 150°C) |
| Process Connection Location | Top & Bottom | Back |
| Mounting | Process Connection Mounted | Panel Mounted |
| Power Source | AA Alkaline | 120/240 VAC with battery backup |
| Calibration Certificate | Included | Included |
