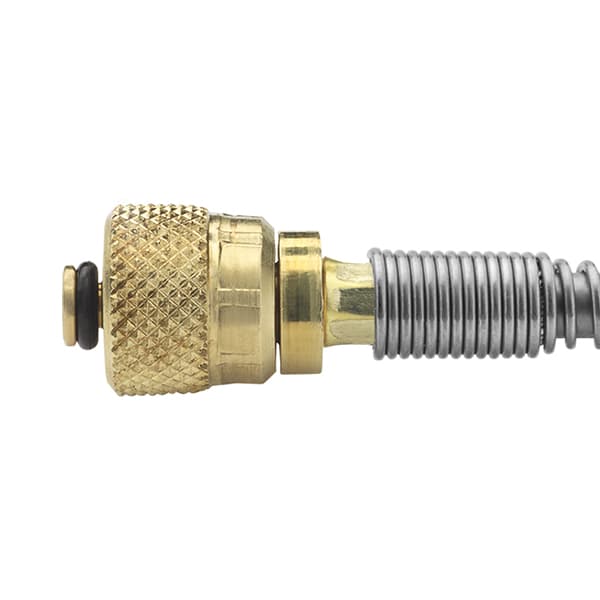

2T2T-HOS-10ft

Quick-connect hose with 1/4" Quick-connect tube hose, 10 feet long

2T2T-HOS-10ft

Connect directly to 1/4" Swagelok, Parker, Hoke or equivalent tube fittings using the unique hand-tight connection

Specifications

Length 5 ft / 1.52 m
Burst Pressure 27,000 psi / 1,862 bar / 185 MPa
Color Silver
Hose Length 10 ft / 3.05 m
Inner Diameter 0.08 in / 0.20 cm
Materials Brass
Reinforced Polyamide
Max Pressure 6,900 psi / 476 bar / 48 MPa
Max Temperature 140 °F / 60 °C
Media Compatibility Air
Inert Gas
Natural Gas
Petroleum Based Oil
Water
Min Temperature -40 °F / -40 °C
Minimum Bend Radius 1.00 in / 2.54 cm
Outer Diameter 0.20 in / 0.51 cm
Seal Materials Buna-N
Type QT
Hose End 1 2T hose end - 1/4" Quick-connect tube, brass
Hose End 2 2T hose end - 1/4" Quick-connect tube, brass
End 1 Connector 1/4" Male Tube Fitting
End 1 Bulkhead Seal No
End 1 Cap and Chain No
End 1 Quick Disconnect Yes
