Part Number: QSQS-HOS-20ft

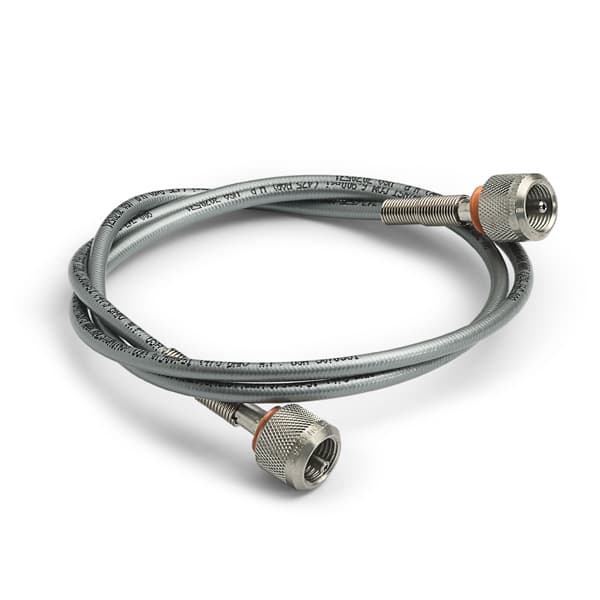

Quick-test 6900 psi hose, S.S. hose ends, 20 ft (6.10 m) long

Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight5.41 oz / 155 grams
Width0.69 in / 18 mm
Height0.69 in / 18 mm
Burst Pressure27000 PSI / 1860 bar / 185 MPa
ColorSilver
Country of originUSA
Fluid MediaAir,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length20 ft / 6.10 m
Inner Diameter0.08 In / 3.00 mm
Length20 ft / 7.00 m
MaterialsStainless Steel
Max Operating Temperature140 °F / 60 °C
Max Pressure6900 PSI / 475 bar / 48 MPa
Max Vacuum-30 InHg / -101.6 kPa
Media CompatibilityAir, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature-40 °F / -40 °C
Minimum Bend Radius1 In / 26 mm
Outer Diameter0.2 In / 6.00 mm
TypeQT
Hose End 1
Female Quick-test, stainless steel
Hose End 2
Female Quick-test, stainless steel
