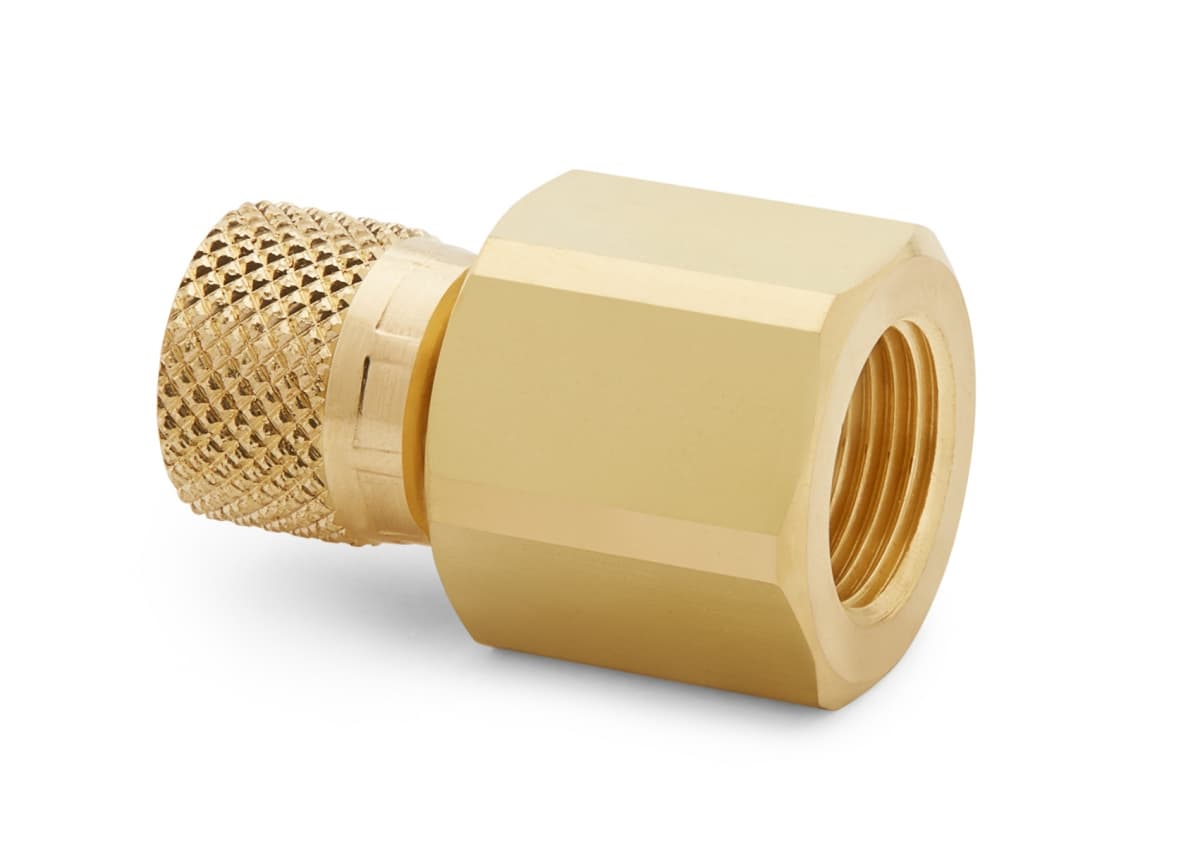

Part Number: QTHA-3FBA-RG

G 3/8" female BSPP (ISO 228/1) x female Quick-test, no check-valve, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect Male BSPP (ISO 228/1) parallel thread pressure gauge or other Male BSPP device to a Ralston hand pump or nitrogen calibration equipment

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.98 oz / 84 grams
Length	1.65 in / 42 mm
Width	0.95 in / 25 mm
Height	0.95 in / 25 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Wrench Size	15/16 In / 24 mm
Wrench Size	24 mm / 15/16 in
End 1 Connector	G 3/8 Female BSPP (ISO 228)
End 1 Direction	Left
End 2 Connector	Female Quick-test
End 2 Direction	Left
