Part Number: DGAU-0123

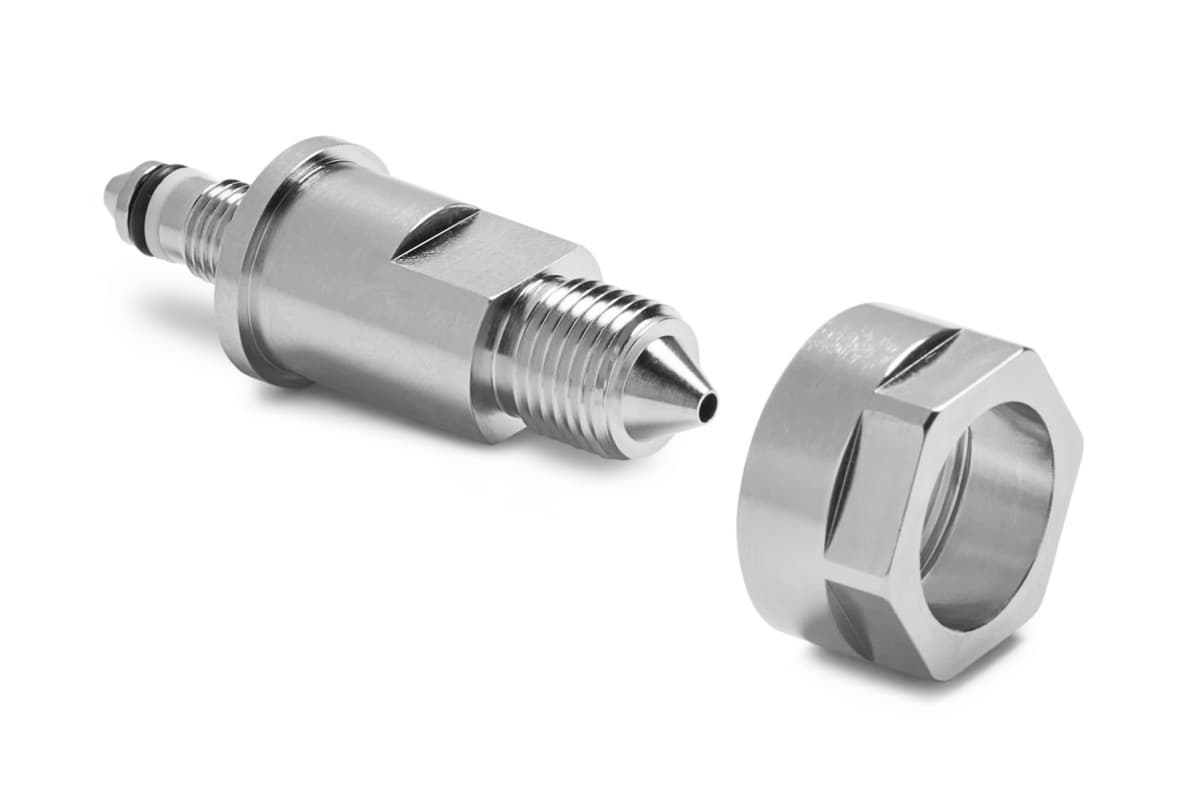

FieldLab 1/4" Male High Pressure (XH) bottom connection, 316 S.S., Viton seals
Process Connections for FieldLabs
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.91 oz / 82 grams |
|---|---|
| Length | 2.61 in / 67 mm |
| Width | 0.88 in / 23 mm |
| Height | 0.88 in / 23 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Materials | 316 Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 9/16-18 (1/4" HM4) Male High Pressure |
| End 1 Direction | Left |
