  1. Home
  2. Products
  3. FieldLab Digital Pressure Calibrator Process Connections
  4. DGAU-0124
Part Number: DGAU-0124

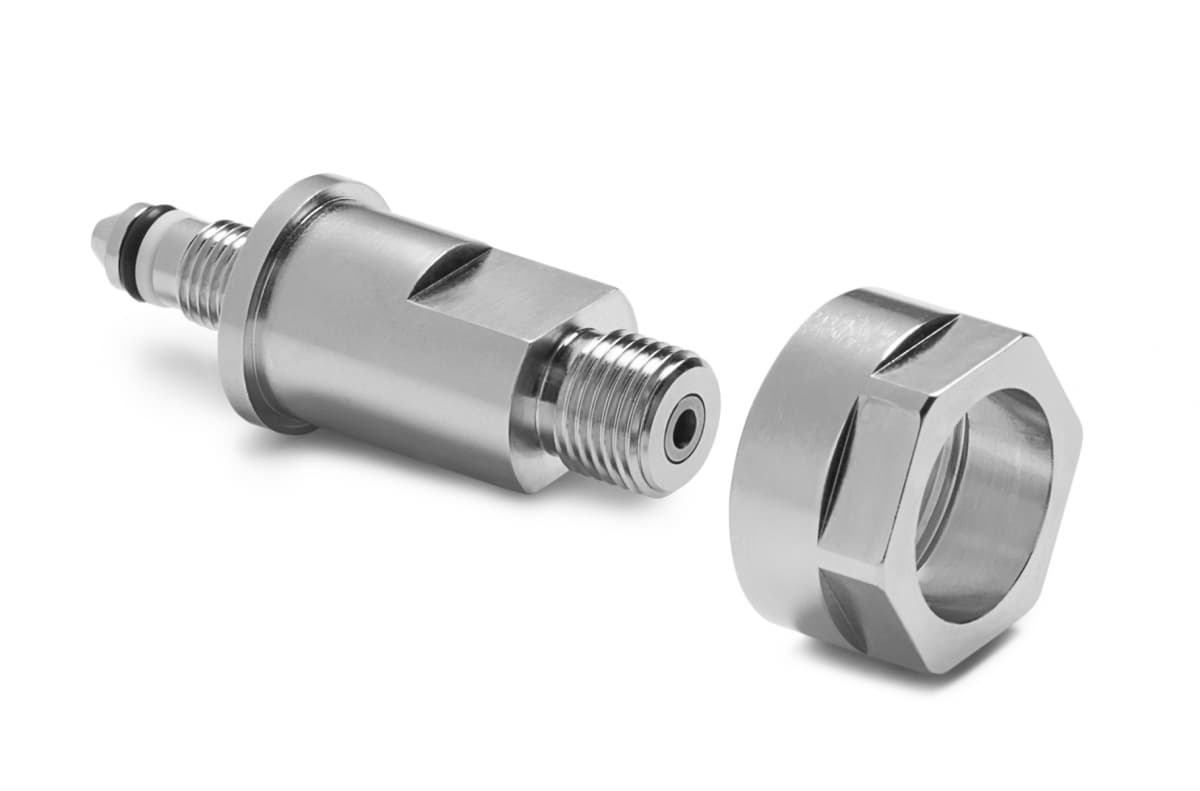

FieldLab Male Quick-test (QM) bottom connection, 316 S.S., Viton seals

Process Connections for FieldLabs

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
Download DatasheetNeed help? Contact Us

Specifications

Weight2.7 oz / 77 grams
Length2.39 in / 61 mm
Width0.88 in / 23 mm
Height0.88 in / 23 mm
Country of originUSA
Dimensions A0 In / 0.00 mm
Dimensions B0 In / 0.00 mm
Materials316 Stainless Steel
Max Operating Temperature140 °F / 60 °C
Max Pressure5000 PSI / 350 bar / 35 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsTeflon, Viton
Wrench Size9/16 In / 15 mm
Wrench Size15 mm / 9/16 in
End 1 Connector
Male Quick-test
End 1 DirectionLeft
