Part Number: QTHA-TEVR-HC

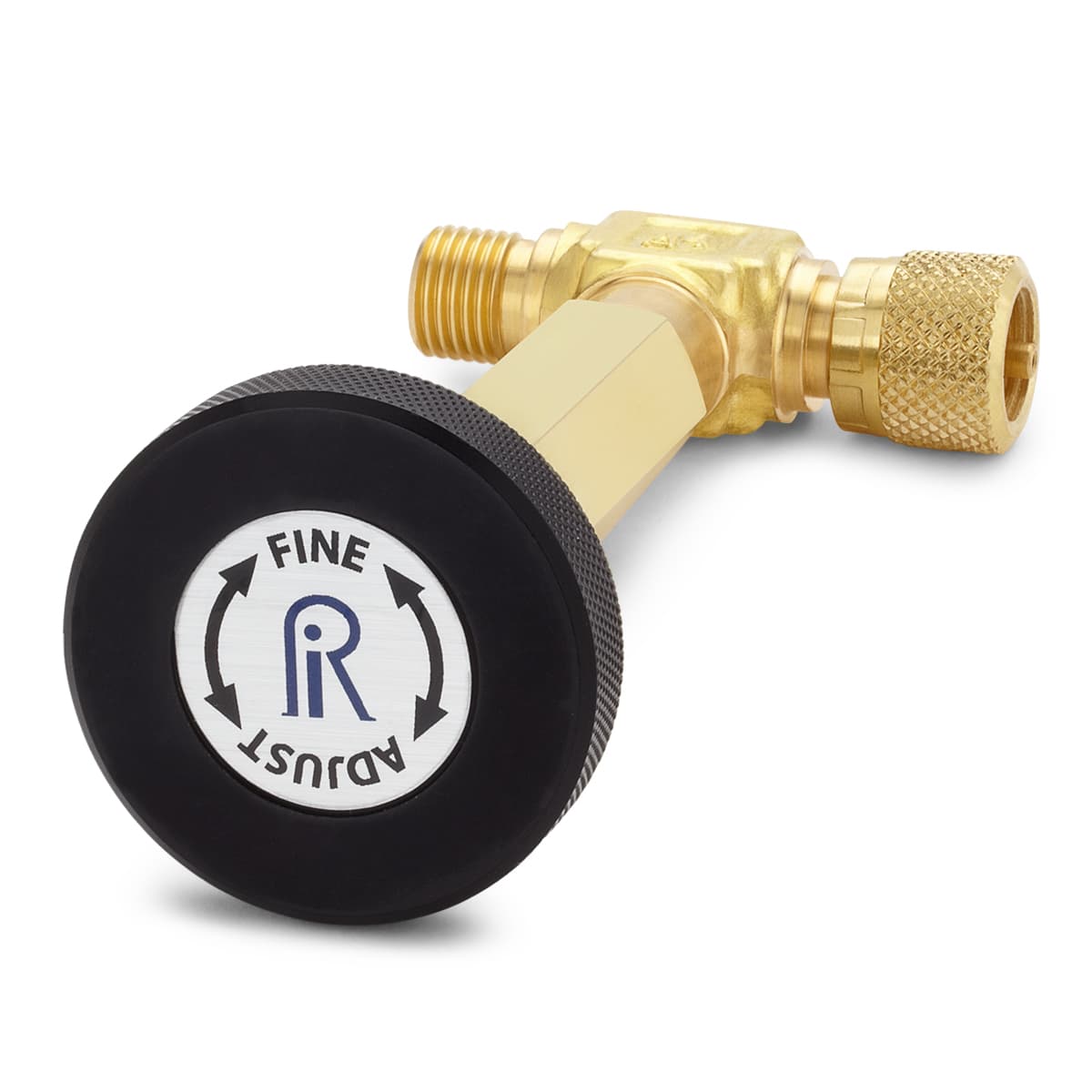

In-line fine adjust vernier piston - male Quick-test x female Quick-test, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect one end to a Quick-test hose and the other to the process connection then turn the knob to control the pressure

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	7.6 oz / 215 grams
Length	4.15 in / 11 cm
Width	2.03 in / 52 mm
Height	1.74 in / 45 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	Male Quick-test
End 1 Direction	Left
End 2 Connector	Female Quick-test
End 2 Direction	Left
