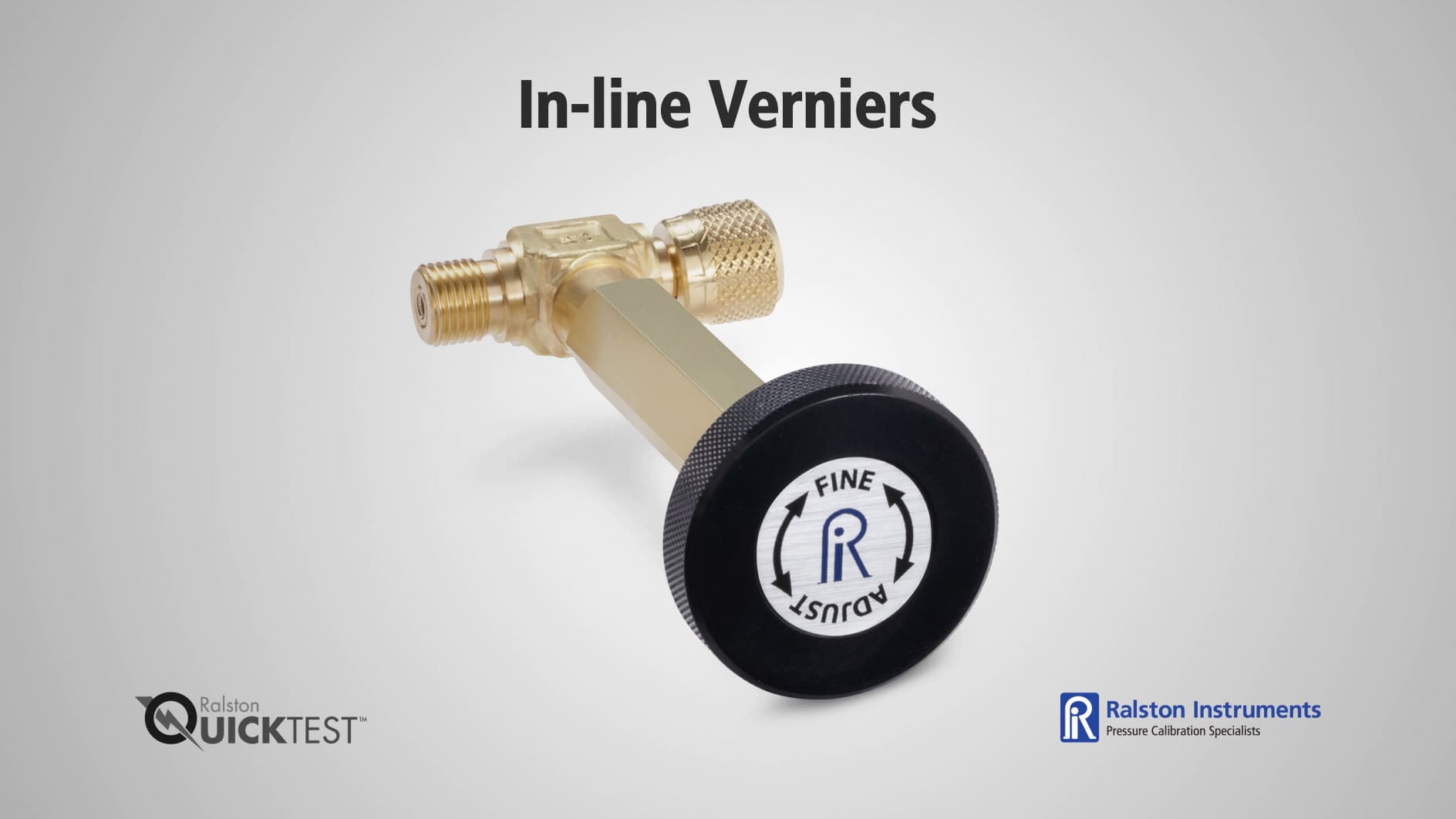

In-line Verniers

Connect one end to a Quick-test hose and the other to the process connection then turn the knob to control the pressure

  • Easily control pressure of a closed system
  • Fine tune pressure to a precise number
  • Easily attach and remove from a system

In-line Vernier Models

Model Max Pressure Materials Seal Materials End 1 Connector End 2 Connector
QTHA-TEVR 5,000 psi / 345 bar / 34 MPa Brass Buna-N Male Quick-test Male Quick-test
QTHA-TEVR-HC 5,000 psi / 345 bar / 34 MPa Brass Buna-N Male Quick-test Female Quick-test
QTHA-TEVR-SS 5,000 psi / 345 bar / 34 MPa Stainless Steel Buna-N
Teflon
Male Quick-test Male Quick-test
QTHA-TEVR-HC-SS 5,000 psi / 345 bar / 34 MPa Stainless Steel Buna-N
Teflon
Male Quick-test Female Quick-test
