Part Number: QTHA-TEVR-HC-SS

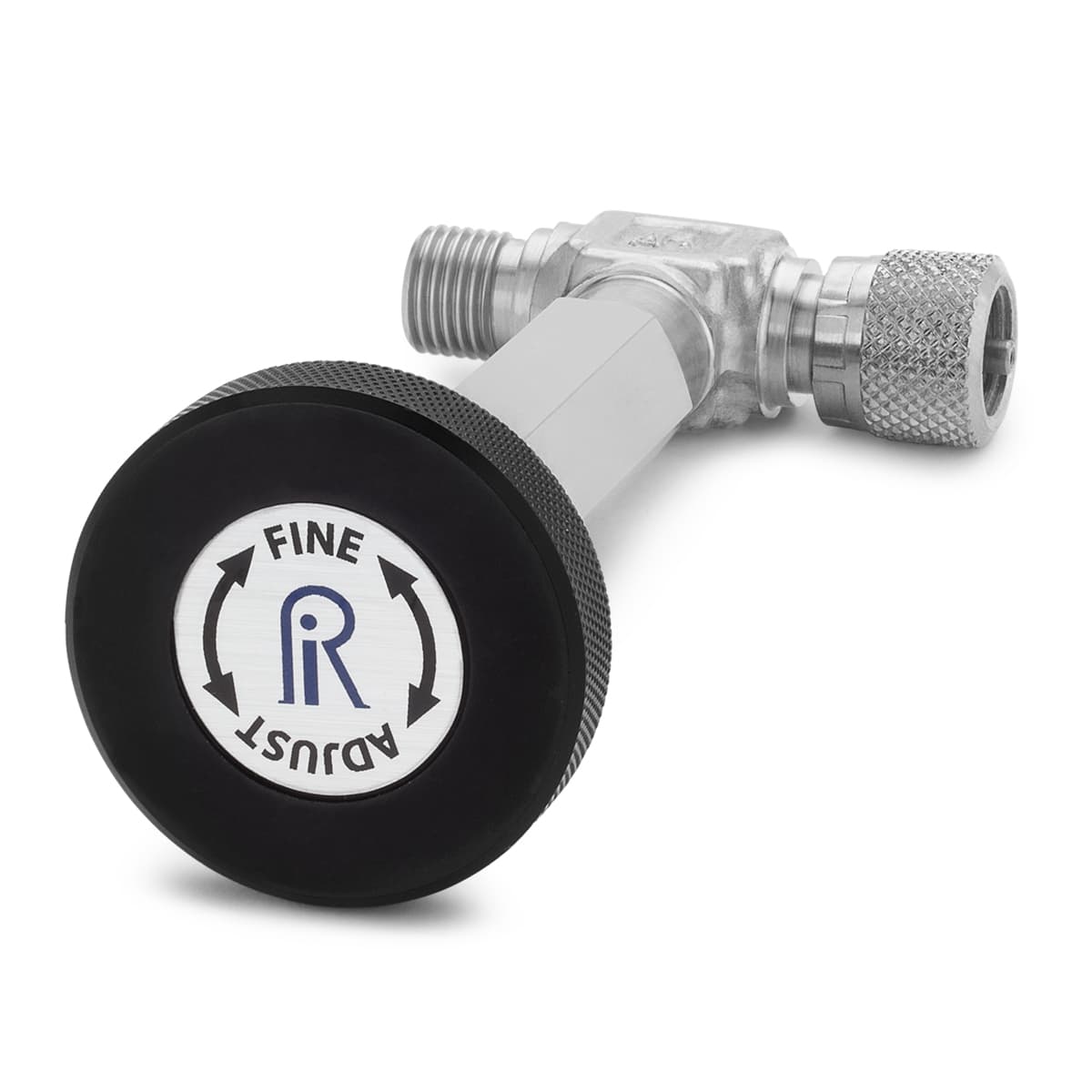

n-line fine adjust vernier piston - male Quick-test x female Quick-test, Stainless Steel
Connect one end to a Quick-test hose and the other to the process connection then turn the knob to control the pressure
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 7.39 oz / 210 grams |
|---|---|
| Length | 4.35 in / 12 cm |
| Width | 1.86 in / 48 mm |
| Height | 1.74 in / 45 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N, Teflon |
| End 1 Connector | Male Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Female Quick-test |
| End 2 Direction | Left |
