Part Number: XTFT-2MS0-MP

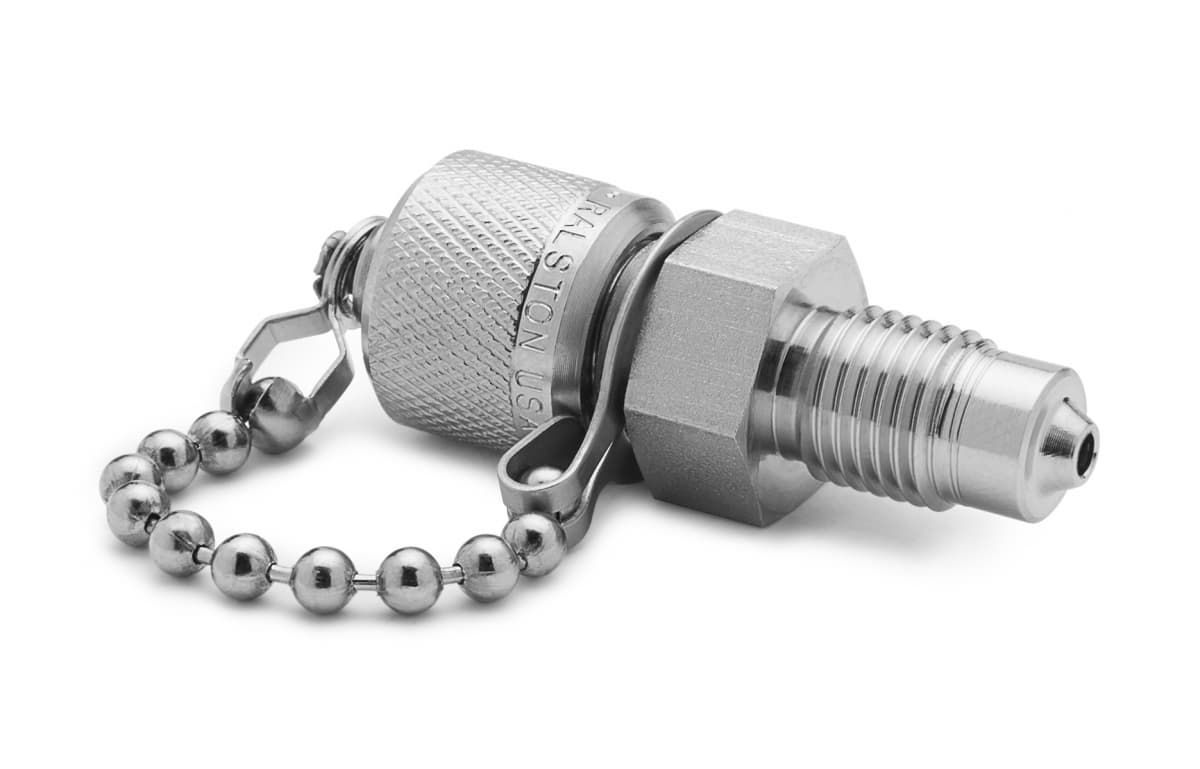

7/16-20 Male Medium Pressure x Male Quick-test XT fitting with cap and chain, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to devices under test, pressure calibrators and hand pumps with medium pressure connections up to 10,000 psi (700 bar)

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.08 oz / 59 grams
Length	2.05 in / 53 mm
Width	0.75 in / 20 mm
Height	0.75 in / 20 mm
Compatible with	Ametek Crystal Series XP2i Series Pressure Gauges, Ametek Crystal Series m1 Pressure Gauges, Ametek Crystal nVision Series Pressure Recorders, Ametek Crystal 30 Series Pressure Calibrators, Ametek Crystal HPC40 Series Pressure Calibrators, Ametek Crystal HPC50 Series Pressure Calibrators
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
End 1 Connector	Male Quick-test XT
End 1 Cap and Chain	Yes
End 1 Direction	Left
End 2 Connector	7/16-20 (1/4" LM4) Male Medium Pressure
End 2 Direction	Left
