Part Number: XTHA-1FS0-QD

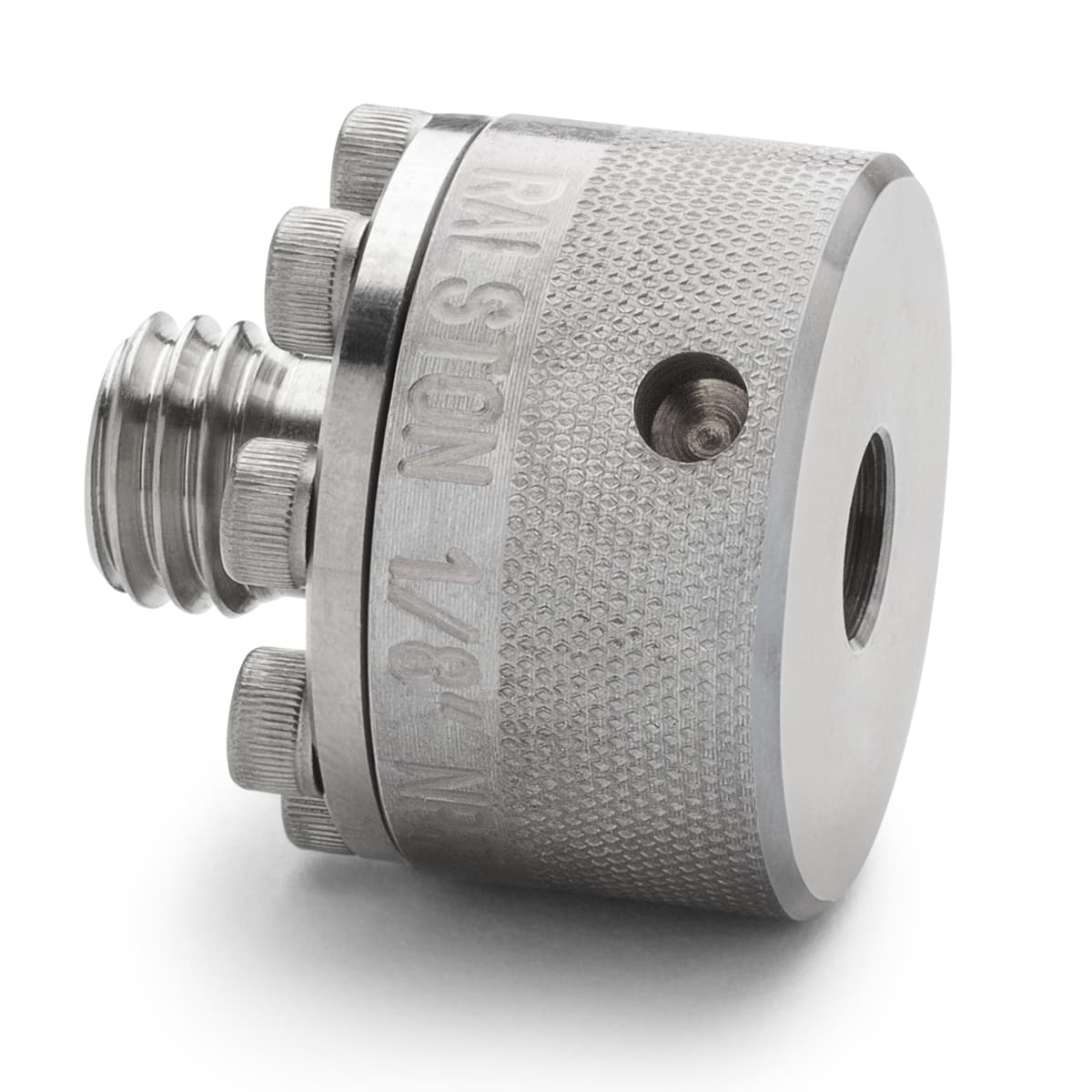

1/8" female NPT Quick-connect x male Quick-test XT, S.S.

Connect Quick-test XT hoses to a male NPT pressure gauge. It allows one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.


Weight6.21 oz / 175 grams
Length1.74 in / 45 mm
Width1.4 in / 36 mm
Height1.4 in / 36 mm
Country of originUSA
Dimensions A0 In / 0.00 mm
Dimensions B0 In / 0.00 mm
MaterialsStainless Steel
Max Operating Temperature400 °F / 205 °C
Max Pressure15000 PSI / 1000 bar / 100 MPa
Min Operating Temperature-15 °F / -26 °C
Seal MaterialsTeflon, Viton
End 1 Connector
1/8" Female NPT (ASME B1.20.1)
End 1 Quick DisconnectYes
End 1 DirectionLeft
End 2 Connector
Male Quick-test XT
End 2 DirectionLeft
