NPT Female Quick-connect x Quick-test XT Adapters

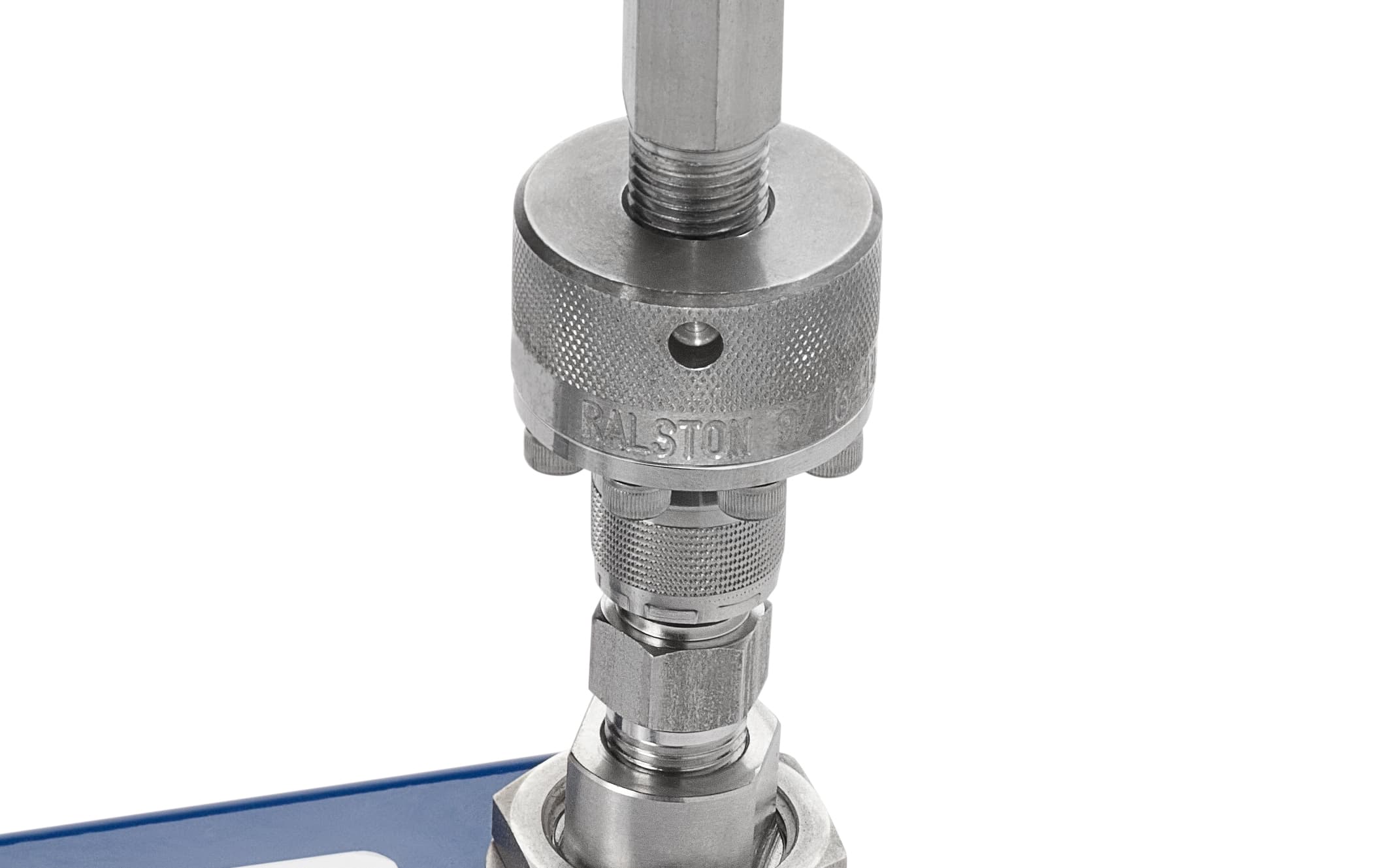

Connect Quick-test XT hoses to a male NPT pressure gauge. It allows one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant.

  • A unique design allows connection to any male NPT pressure gauge connection using a pressure-assisted o-ring seal
  • Pressure helps to seal the fitting better
  • Stainless steel construction
  • Made in USA

NPT Female Quick-connect x Quick-test XT Adapter Models

Model Max Pressure Connection Connection Materials
XTHA-1FS0-QD 15,000 psi / 1,034 bar / 105 MPa 1/8" Female NPT (ASME B1.20.1) Male Quick-test XT Stainless Steel

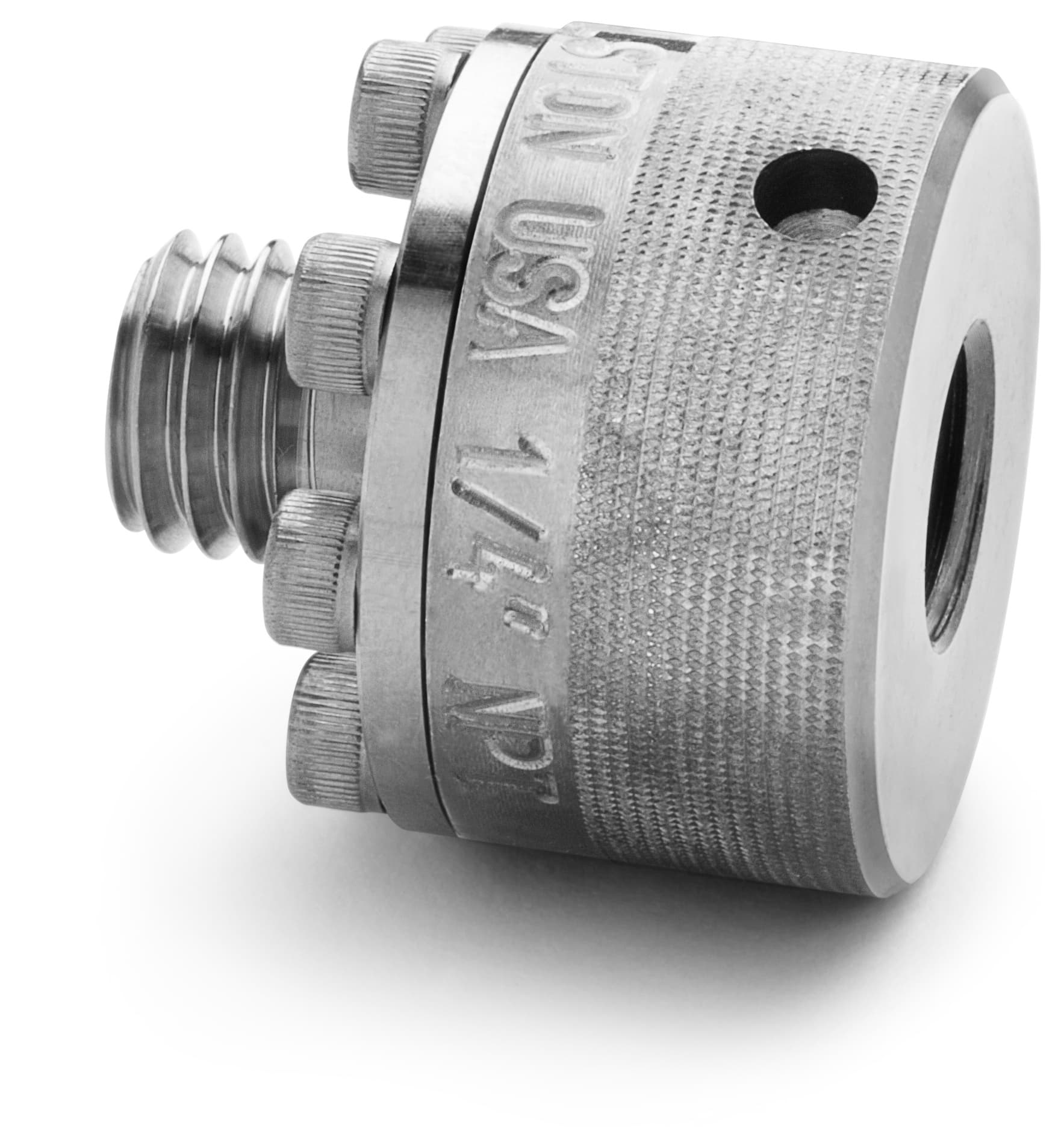

XTHA-2FS0-QD 15,000 psi / 1,034 bar / 105 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test XT Stainless Steel
XTHA-4FS0-QD 10,000 psi / 689 bar / 69 MPa 1/2" Female NPT (ASME B1.20.1) Male Quick-test XT Stainless Steel
