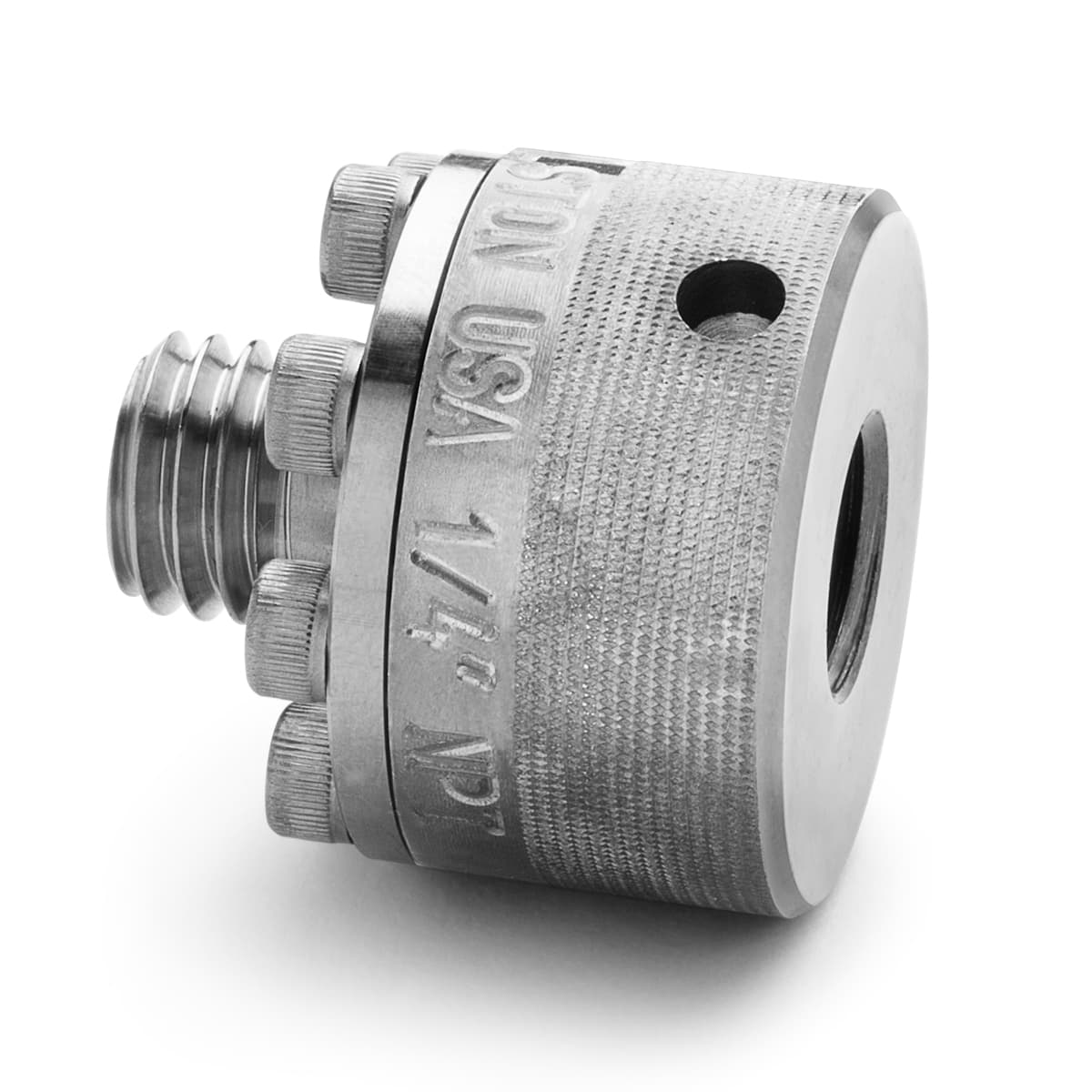

Part Number: XTHA-2FS0-QD
1/4" female NPT Quick-connect x male Quick-test XT, S.S.
Connect Quick-test XT hoses to a male NPT pressure gauge. It allows one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 6.06 oz / 170 grams |
|---|---|
| Length | 1.72 in / 44 mm |
| Width | 1.41 in / 36 mm |
| Height | 1.41 in / 36 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Dimensions B | 0 In / 0.00 mm |
| Materials | Stainless Steel |
| Max Operating Temperature | 400 °F / 205 °C |
| Max Pressure | 15000 PSI / 1000 bar / 100 MPa |
| Min Operating Temperature | -15 °F / -26 °C |
| Seal Materials | Teflon, Viton |
| End 1 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 1 Quick Disconnect | Yes |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
