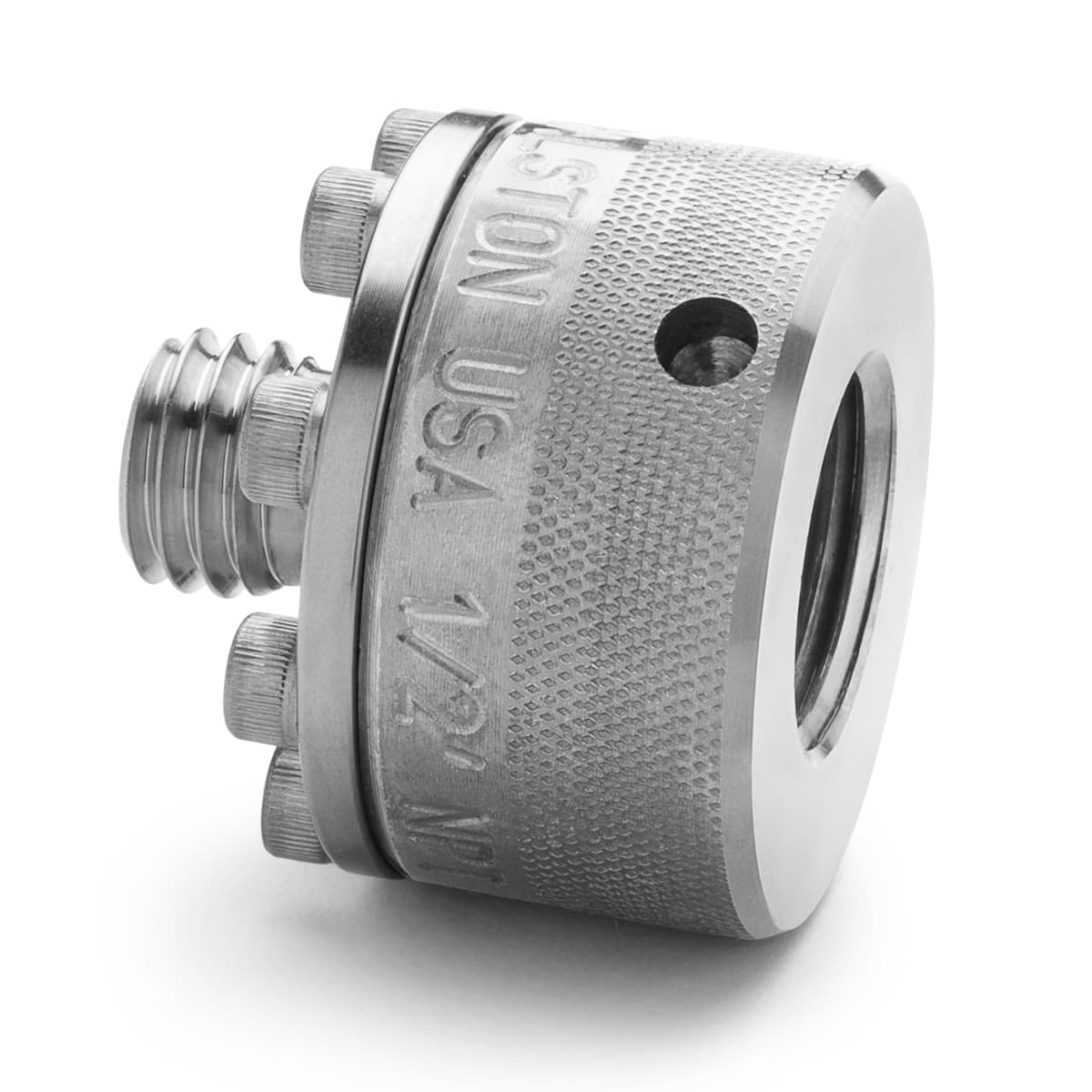

Part Number: XTHA-4FS0-QD
1/2" female NPT Quick-connect x male Quick-test XT, S.S.
Connect Quick-test XT hoses to a male NPT pressure gauge. It allows one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant.
Specifications
| Weight | 8.42 oz / 240 grams |
|---|---|
| Length | 1.89 in / 49 mm |
| Width | 1.6 in / 41 mm |
| Height | 1.6 in / 41 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Dimensions B | 0 In / 0.00 mm |
| Materials | Stainless Steel |
| Max Operating Temperature | 400 °F / 205 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | -15 °F / -26 °C |
| Seal Materials | Teflon, Viton |
| End 1 Connector | 1/2" Female NPT (ASME B1.20.1) |
| End 1 Quick Disconnect | Yes |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
