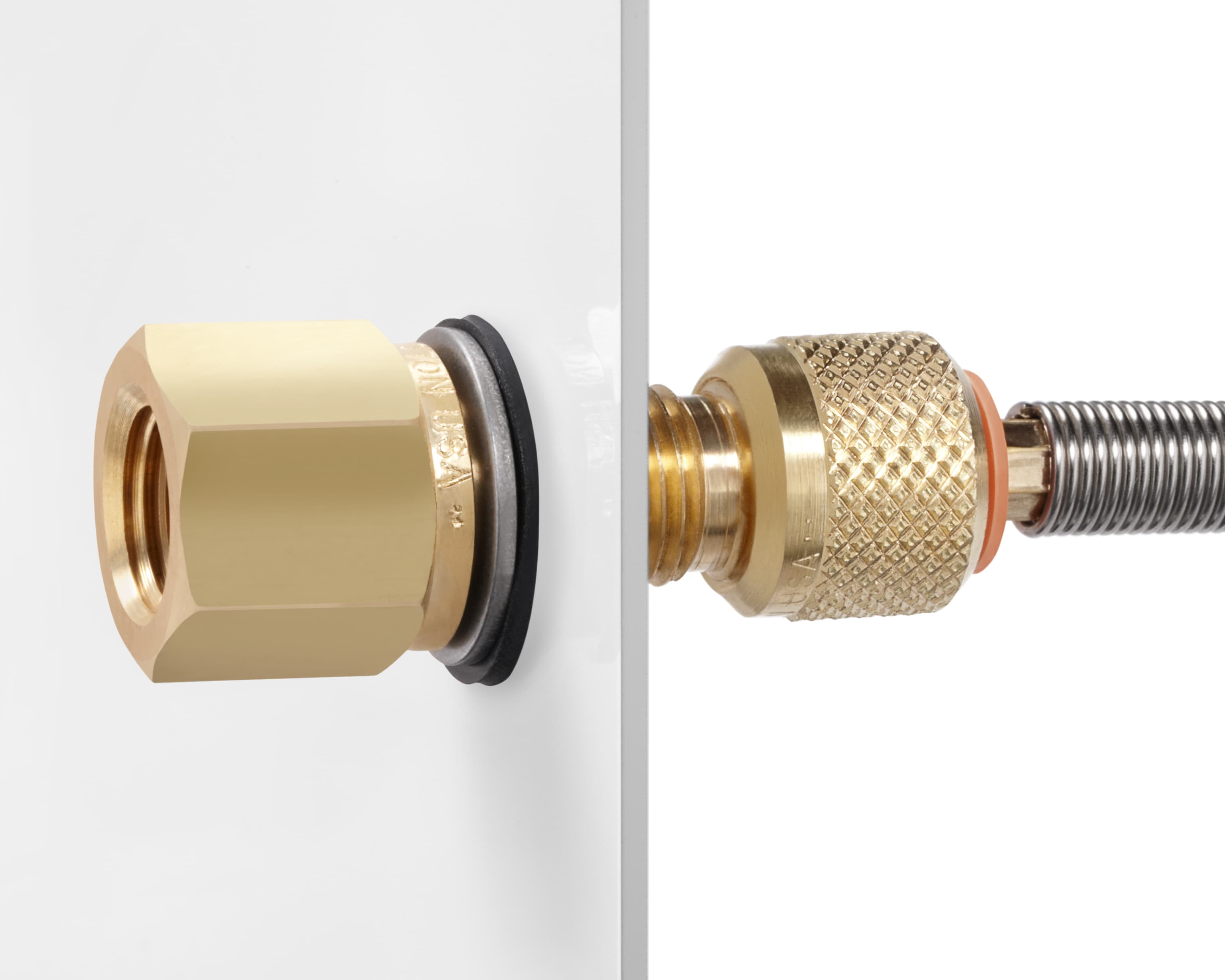

NPT Female Quick-test Bulkhead Unions

Connect a hose on one side of a panel, wall or enclosure with female NPT on the other side

  • Bulkhead seals so no liquid or moisture can get into a control panel or enclosure
  • Use to connect fittings on the inside of an enclosure to a Quick-test hose on the outside of the enclosure
  • Will connect through a wall that is up to 0.5 in (1.3 cm) thick
  • Made in USA

NPT Female Quick-test Bulkhead Union Models

Model Max Pressure Connection Connection Quick-connect Has Check Valve Cap and Chain Bulkhead Materials

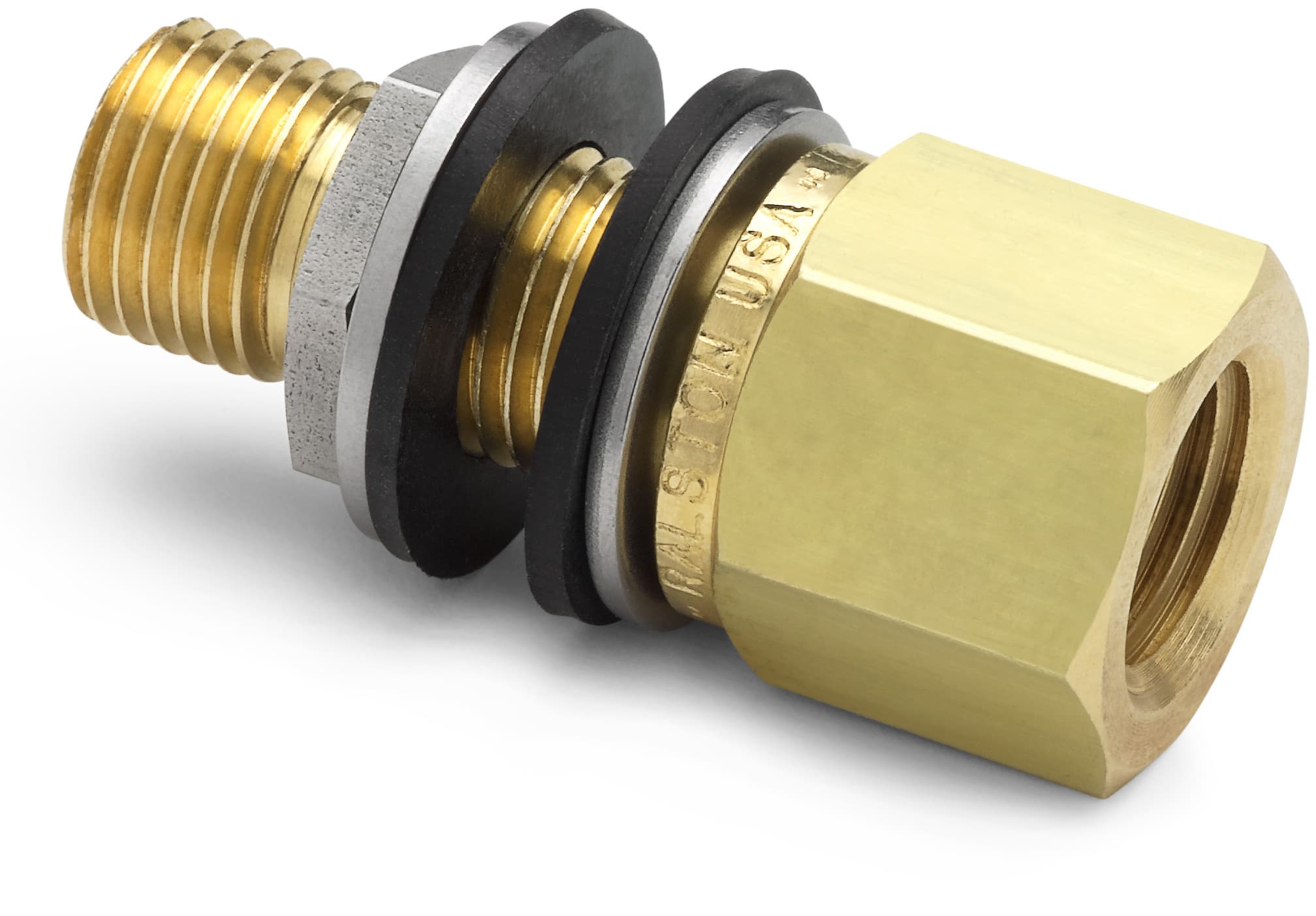

QTHA-HFBB-2F 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test No No No Yes Brass
QTHA-HFSB-2F 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test No No No Yes Stainless Steel
QTFT-HFBB-2F 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test No No Yes Yes Brass
QTFT-HFSB-2F 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test No No Yes Yes Stainless Steel
