Part Number: XTHA-1MS0

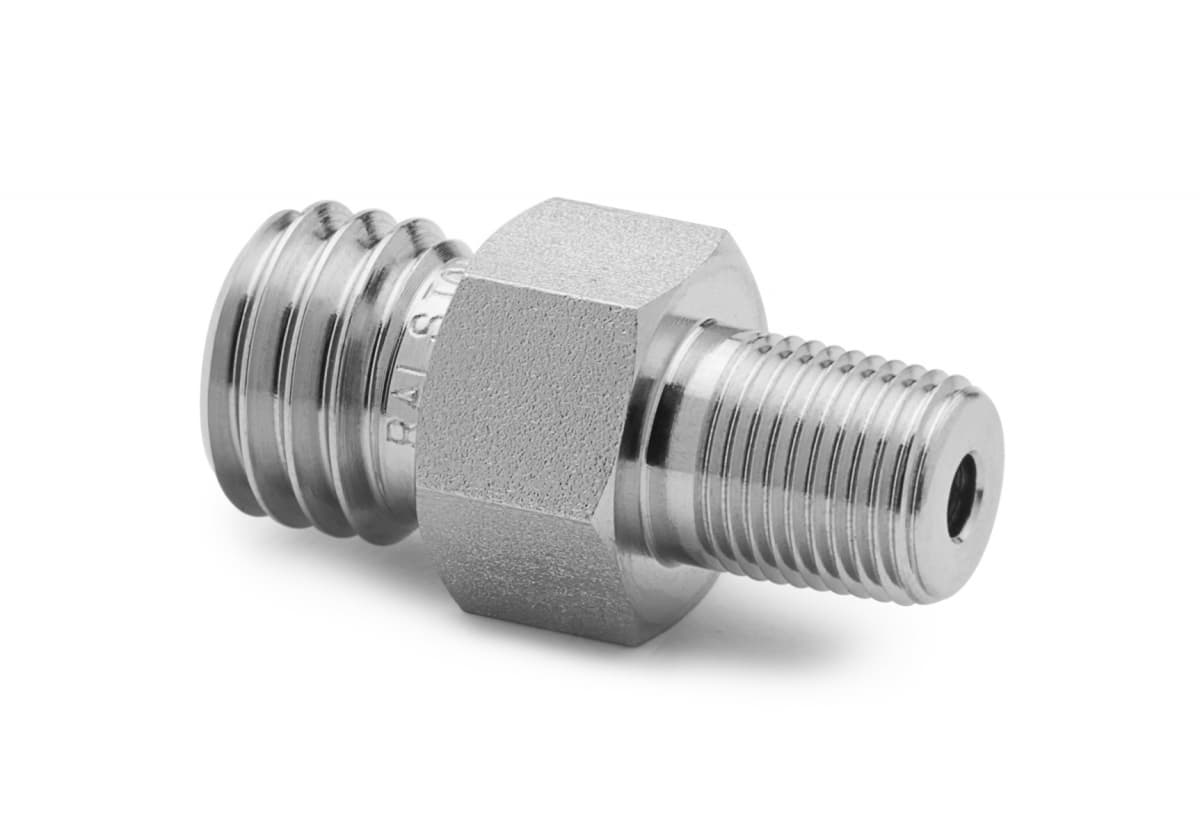

1/8" male NPT x male Quick-test XT Adapter, S.S.
Connect to pressure transmitters, gauges or pressure regulators
Specifications
| Weight | 1.1 oz / 31 grams |
|---|---|
| Length | 1.43 in / 37 mm |
| Width | 0.71 in / 19 mm |
| Height | 0.71 in / 19 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 5/8 In / 16 mm |
| Wrench Size | 16 mm / 5/8 in |
| End 1 Connector | 1/8" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
