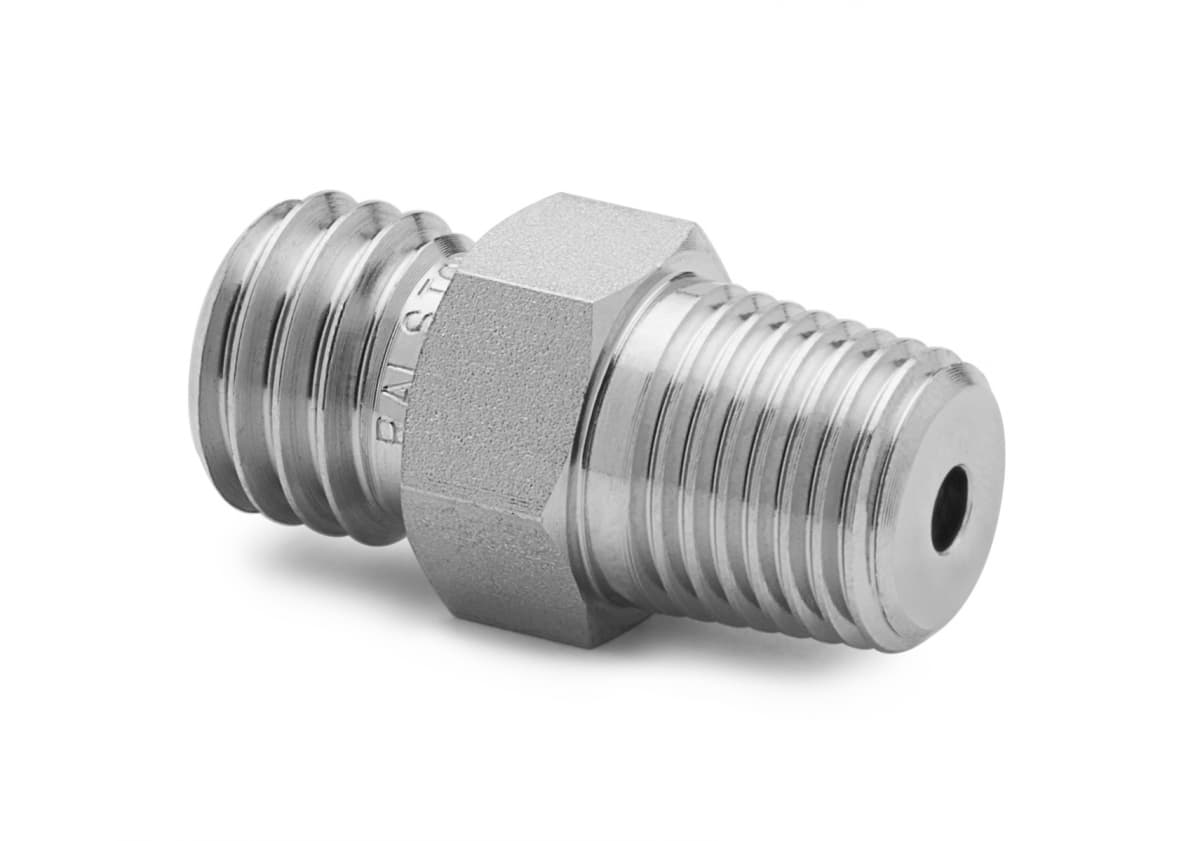

Part Number: XTHA-2MS0
1/4" male NPT x male Quick-test XT Adapter, S.S.
Connect to pressure calibrators, gauges or pressure transmitters to 10,000 psi
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.23 oz / 35 grams |
|---|---|
| Length | 1.43 in / 37 mm |
| Width | 0.7 in / 18 mm |
| Height | 0.7 in / 18 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 5/8 In / 16 mm |
| Wrench Size | 16 mm / 5/8 in |
| End 1 Connector | 1/4" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
