Part Number: QTHA-PMSA-0.125-1.5

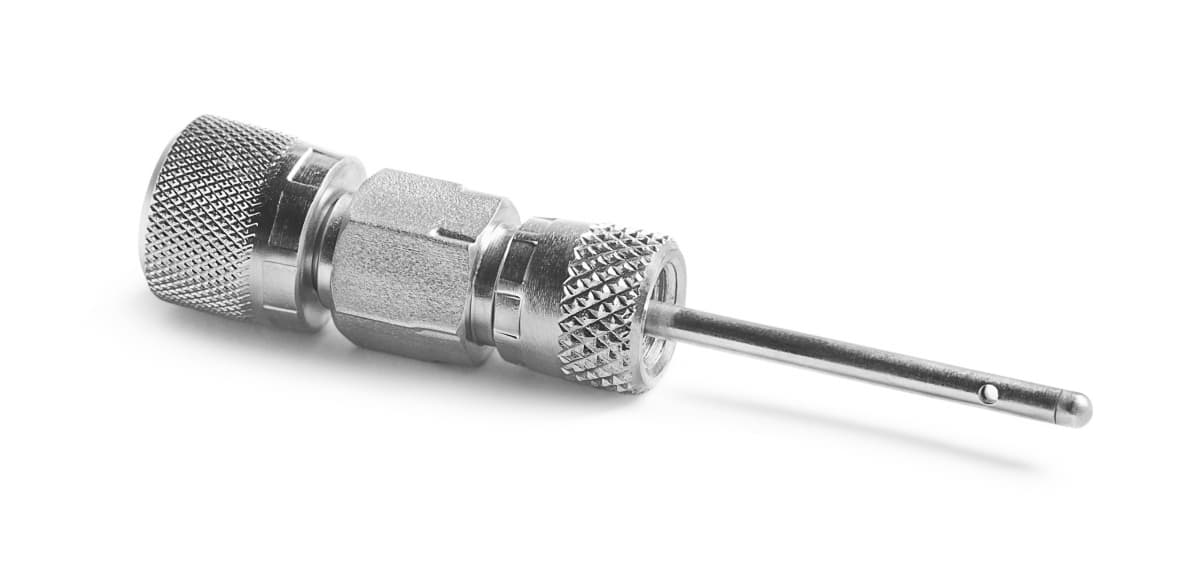

1/8" Petes Plug II Probe (1/8" dia x 1.5 long) x female Quick-test, S.S.

Connect to any Size Petes Plug for testing, sampling or reading a pressure.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
Download DatasheetNeed help? Contact Us

Specifications

Weight1.82 oz / 52 grams
Length3.44 in / 88 mm
Width0.68 in / 18 mm
Height0.68 in / 18 mm
Country of originUSA
Dimensions A0 In / 0.00 mm
Dimensions B0 In / 0.00 mm
MaterialsStainless Steel
Max Operating Temperature140 °F / 60 °C
Max Pressure1000 PSI / 70 bar / 7.00 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N
End 1 Connector
1/8" Male Petes Plug Probe
End 1 DirectionLeft
End 2 Connector
Female Quick-test
End 2 DirectionLeft
