Part Number: 1S1S-HOS-10m

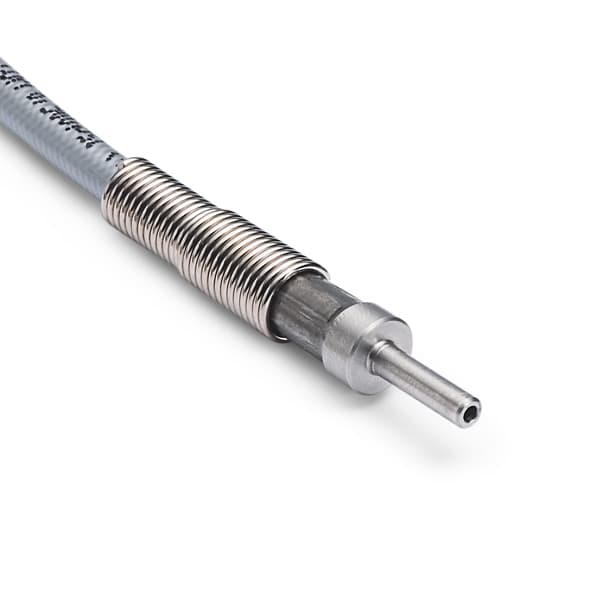

Quick-test hose, 1/8" S.S. tube stub hose ends, 10 meters long
Connect to 1/8" tube fittings or Quick-connects with 1/8" tube connections
Specifications
| Weight | 8.7 oz / 245 grams |
|---|---|
| Length | 393.7 in / 10 m |
| Width | 0.43 in / 11 mm |
| Height | 0.43 in / 11 mm |
| Burst Pressure | 20000 PSI / 1380 bar / 140 MPa |
| Color | Silver |
| Country of origin | USA |
| Hose Length | 10 m / 32.80 ft |
| Inner Diameter | 0.08 In / 3.00 mm |
| Materials | Reinforced Polyamide, Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | -30 InHg / -101.6 kPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.2 In / 6.00 mm |
| Type | QT |
| Hose End 1 | 1/8" Tube stub, stainless steel |
| Hose End 2 | 1/8" Tube stub, stainless steel |
