Part Number: 1S1S-HOS-3ft

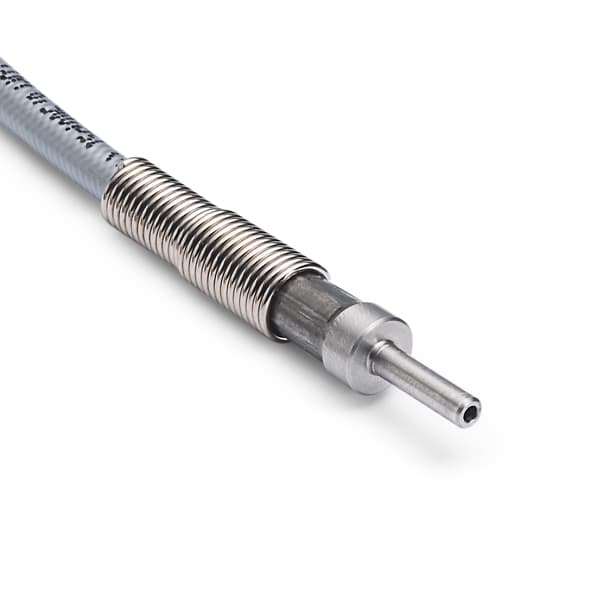

Quick-test hose, 1/8" S.S. tube stub hose ends, 3 ft (92 cm) long

Tub Stub hose compatible with 1/8" tube fitting connections, 3ft long

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight1.4 oz / 40 grams
Length36 in / 92 cm
Width0.43 in / 11 mm
Height0.43 in / 11 mm
Burst Pressure27000 PSI / 1860 bar / 185 MPa
ColorSilver
Country of originUSA
Fluid MediaWater,Petroleum Based Oil,Air,Inert Gas
Hose Length3ft / 0.91 m
Inner Diameter0.08 In / 3.00 mm
MaterialsReinforced Polyamide, Stainless Steel
Max Operating Temperature140 °F / 60 °C
Max Pressure6900 PSI / 475 bar / 48 MPa
Max Vacuum-30 InHg / -101.6 kPa
Media CompatibilityAir, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature-40 °F / -40 °C
Minimum Bend Radius1 In / 26 mm
Outer Diameter0.2 In / 6.00 mm
TypeQT
Hose End 1
1/8" Tube stub, stainless steel
Hose End 2
1/8" Tube stub, stainless steel
