Part Number: 2S2S-HOS-3ft

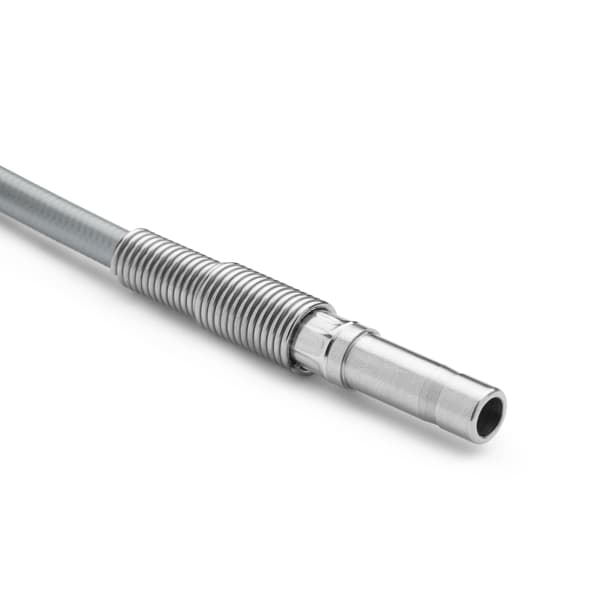

Quick-test hose, 1/4" S.S. tube stub hose ends, 3 ft (92 cm) long
Connect to 1/4" tube fittings or Quick-connects with 1/4" tube connections
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.4 oz / 40 grams |
|---|---|
| Length | 36 in / 92 cm |
| Width | 0.43 in / 11 mm |
| Height | 0.43 in / 11 mm |
| Burst Pressure | 27000 PSI / 1860 bar / 185 MPa |
| Color | Silver |
| Country of origin | USA |
| Hose Length | 3ft / 0.91 m |
| Inner Diameter | 0.08 In / 3.00 mm |
| Materials | Reinforced Polyamide, Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 6900 PSI / 475 bar / 48 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.2 In / 6.00 mm |
| Type | QT |
| Hose End 1 | 1/4" Tube stub, stainless steel |
| Hose End 2 | 1/4" Tube stub, stainless steel |
