DCAP

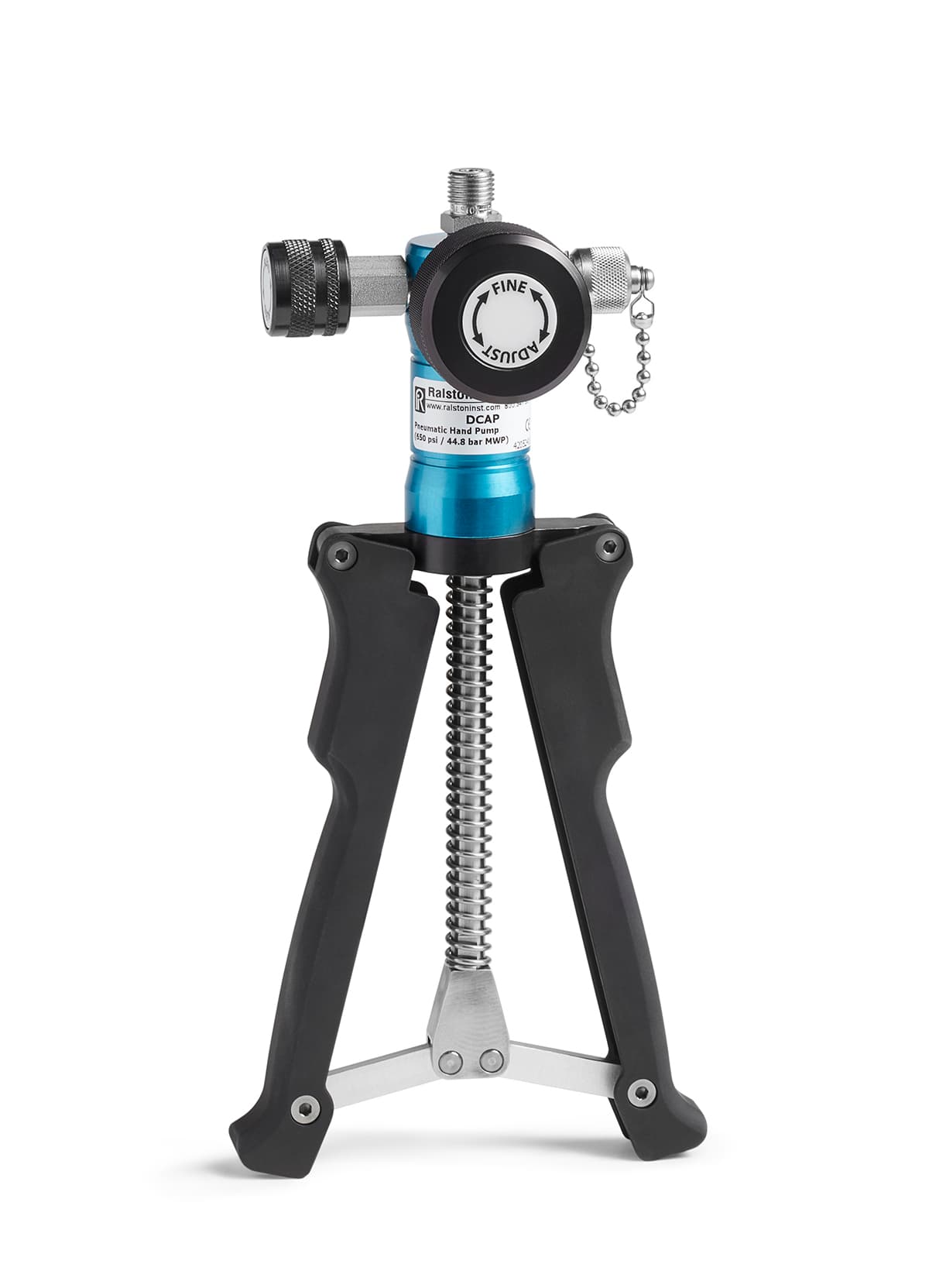

DCAP Pneumatic Hand Pump

DCAP

650 PSI /45 bar Hand pump with anodized Aluminum handles, Stainless Steel hardware

Specifications

Weight 1.75 lb / 793.79 g
Length 5.00 in / 12.70 cm
Width 3.00 in / 7.62 cm
Height 10.50 in / 26.67 cm
Pressure Media Air
Fine Adjustment Resolution 0.001 PSI
Media Compatibility Air
Inert Gas
Natural Gas
Fluid Media Air
Materials Anodized Aluminum
Brass
Stainless Steel
Max Pressure 650 psi / 45 bar / 4.48 MPa
Max Temperature 140 °F / 60 °C
Seal Materials Buna-N
Delrin
Outlet Port Male Quick-test
Male Quick-test with cap and chain

Replacement Parts

Repair kit for DCAP 600 psi pneumatic pumps

Repair kit for DCAP 600 psi pneumatic pumps

DCAP-REPK

DCAP pumping piston assembly

DCAP pumping piston assembly

DCAP-0020

DCAP handle link & coupling assembly

DCAP handle link & coupling assembly

DCAP-0025

DCAP Fine Adjust Vernier

DCAP Fine Adjust Vernier

DCAP-0030

Replacement pumping cylinder for DCAP pump

Replacement pumping cylinder for DCAP pump

DCAP-0035

Replacement handle for DCAP pump

Replacement handle for DCAP pump

DCAP-0055

Replacement handle bracket for DCAP pump

Replacement handle bracket for DCAP pump

DCAP-0060

Outlet check valve assembly for DCAP pumps

Outlet check valve assembly for DCAP pumps

DCAP-0065

Bleed valve assembly with short 3/8"-24 threads, stainless steel

Bleed valve assembly with short 3/8"-24 threads, stainless steel

QSCM-0020-ST

3/8-24 Male SAE X Male Quick-test outlet connection with low volume threads, stainless steel

3/8-24 Male SAE X Male Quick-test outlet connection with low volume threads, stainless steel

QTHA-3SS0-LV

3/8-24 Male SAE X Male Quick-test outlet connection, low volume, with cap and chain, stainless

3/8-24 Male SAE X Male Quick-test outlet connection, low volume, with cap and chain, stainless

QTFT-3SS0-LV
