DCAP-500PSIG-D

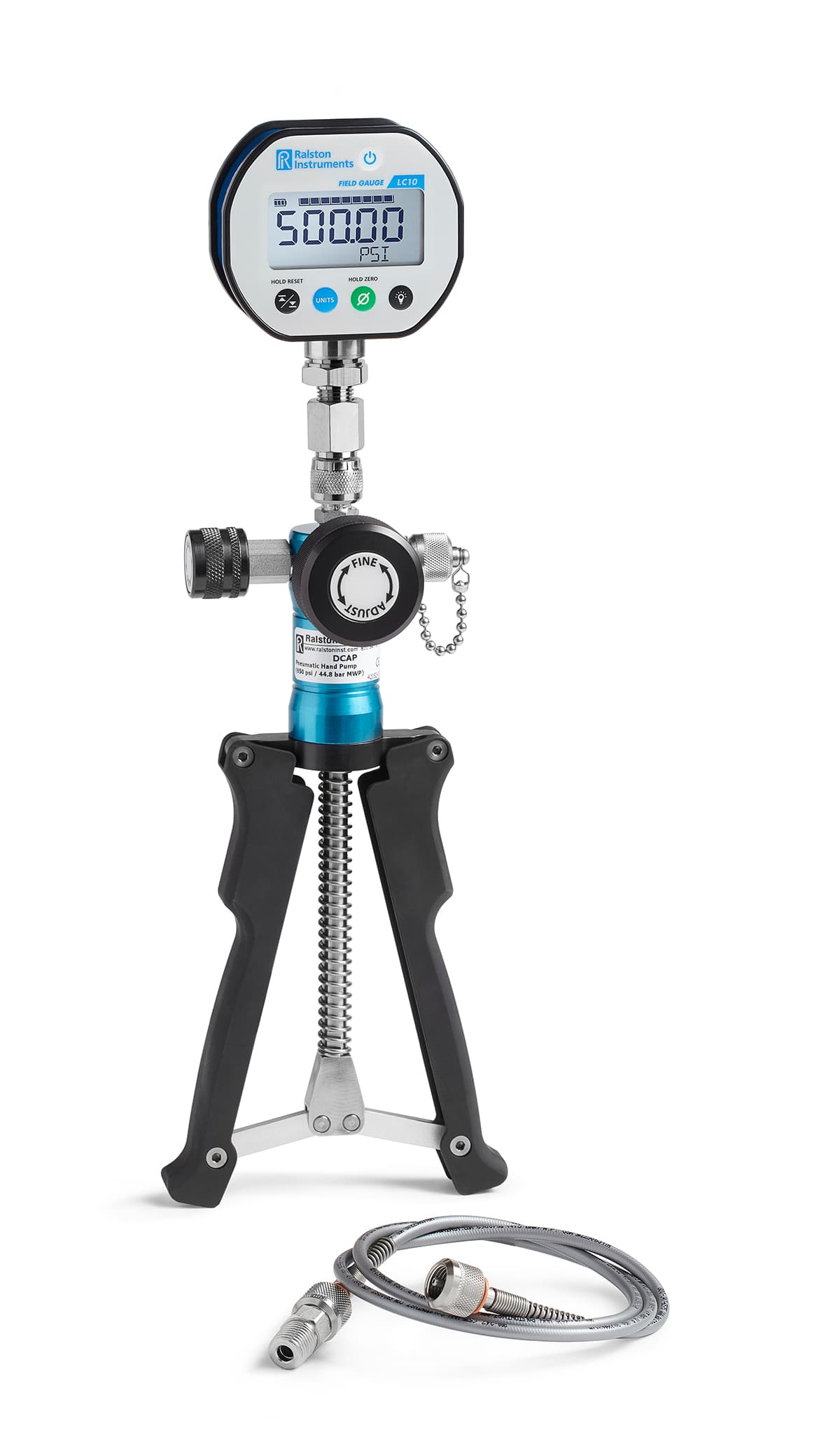

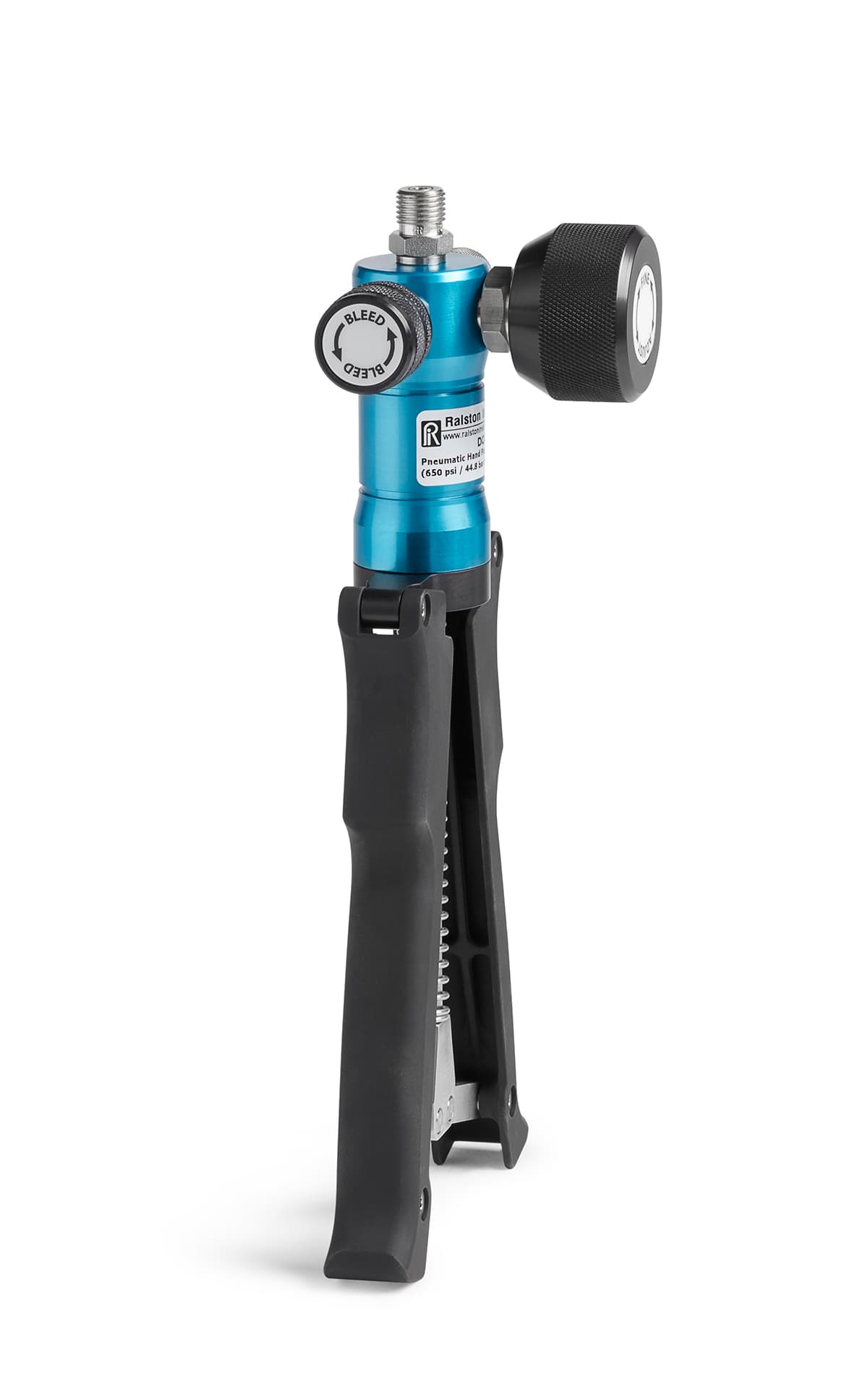

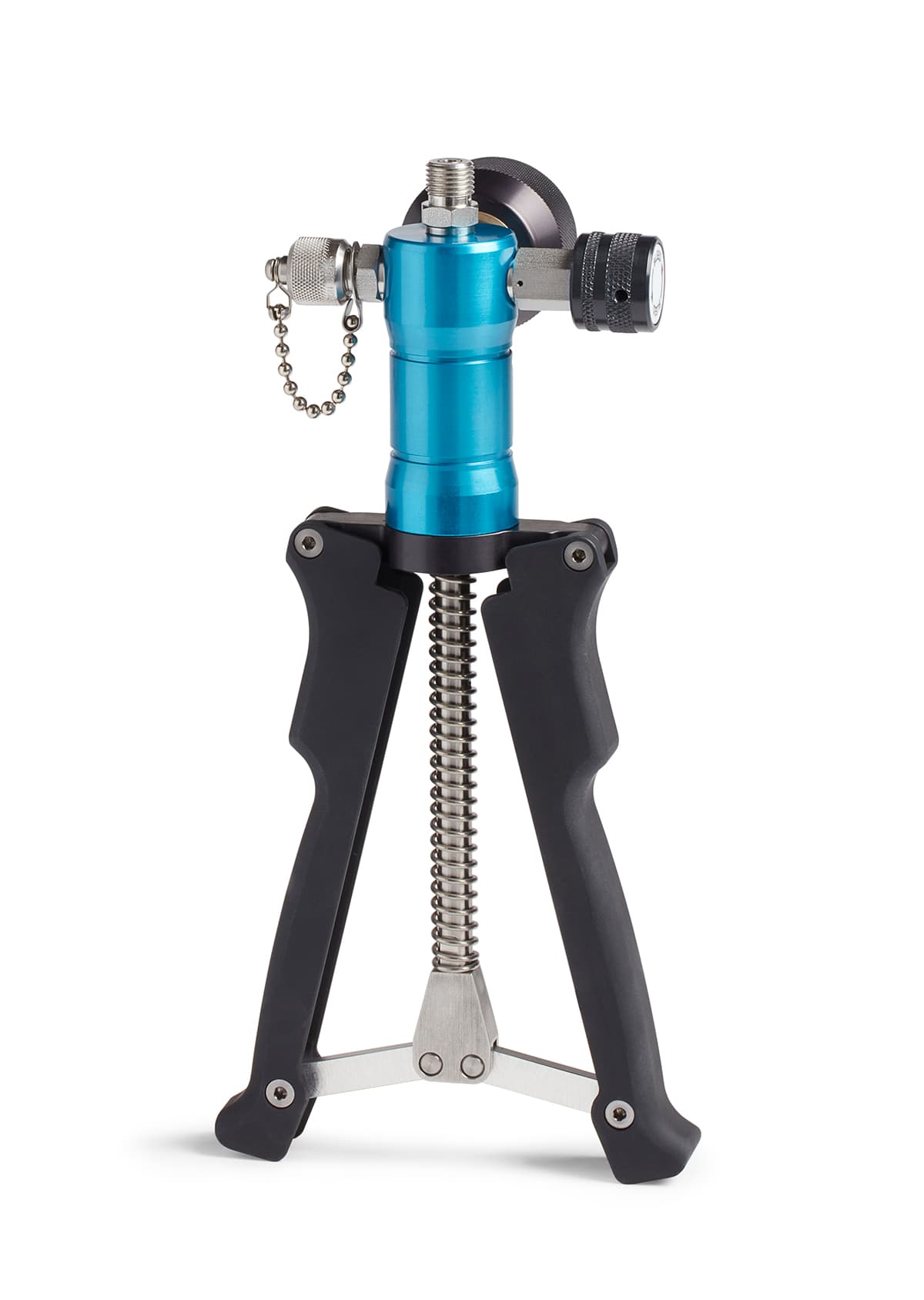

Ralston DCAP Pressure Test Pump with Digital Gauge

DCAP-500PSIG-D

650 psi pneumatic hand pump, 500 psi gauge (0.25% full scale), 3ft hose, process connection

Specifications

Weight 1.75 lb / 793.79 g
Length 3.53 in / 8.97 cm
Width 6.00 in / 15.24 cm
Height 1 ft 3 in / 38.10 cm
Accuracy ±0.25% of Full Scale ±1 least significant digit
Battery Count 2
Battery Life 2500 Hours
Battery Type AA
Burst Pressure 27,000 psi / 1,862 bar / 185 MPa
Color Silver
Dial Size 2.88 in / 7.32 cm
Fine Adjustment Resolution .001 PSI
Fluid Media Air, Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose 1 Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Inner Diameter 0.08 in / 0.20 cm
Length 3 ft / 91.44 cm
Materials Anodized Aluminum
Stainless Steel
Max Pressure 650 psi / 45 bar / 4.48 MPa
Max Temperature 130 °F / 54 °C
Media Compatibility Air
Inert Gas
Natural Gas
Minimum Bend Radius 1.00 in / 2.54 cm
Outer Diameter 0.20 in / 0.51 cm
Outlet Port Male Quick-test
Male Quick-test with cap and chain
Pressure Media Air
Pressure Reference Digital pressure gauge, 500 PSIG Pressure
Pressure Units PSIG
Process Connection 1/4" Male NPT
Reference Connection 1/4" Female NPT
Seal Materials Buna-N
Delrin
Teflon
Type QT
Wrench Size 3/4, 9/16 In
Wrench Size 19, 15 mm

Included Items

Replacement Parts

Repair kit for DCAP 600 psi pneumatic pumps

Repair kit for DCAP 600 psi pneumatic pumps

DCAP-REPK

DCAP pumping piston assembly

DCAP pumping piston assembly

DCAP-0020

DCAP handle link & coupling assembly

DCAP handle link & coupling assembly

DCAP-0025

DCAP Fine Adjust Vernier

DCAP Fine Adjust Vernier

DCAP-0030

Replacement pumping cylinder for DCAP pump

Replacement pumping cylinder for DCAP pump

DCAP-0035

Replacement handle for DCAP pump

Replacement handle for DCAP pump

DCAP-0055

Replacement handle bracket for DCAP pump

Replacement handle bracket for DCAP pump

DCAP-0060

Bleed valve assembly with short 3/8"-24 threads, stainless steel

Bleed valve assembly with short 3/8"-24 threads, stainless steel

QSCM-0020-ST

3/8-24 Male SAE X Male Quick-test outlet connection with low volume threads, stainless steel

3/8-24 Male SAE X Male Quick-test outlet connection with low volume threads, stainless steel

QTHA-3SS0-LV

3/8-24 Male SAE X Male Quick-test outlet connection, low volume, with cap and chain, stainless

3/8-24 Male SAE X Male Quick-test outlet connection, low volume, with cap and chain, stainless

QTFT-3SS0-LV
