FLP1-GR-QF-EH-SP

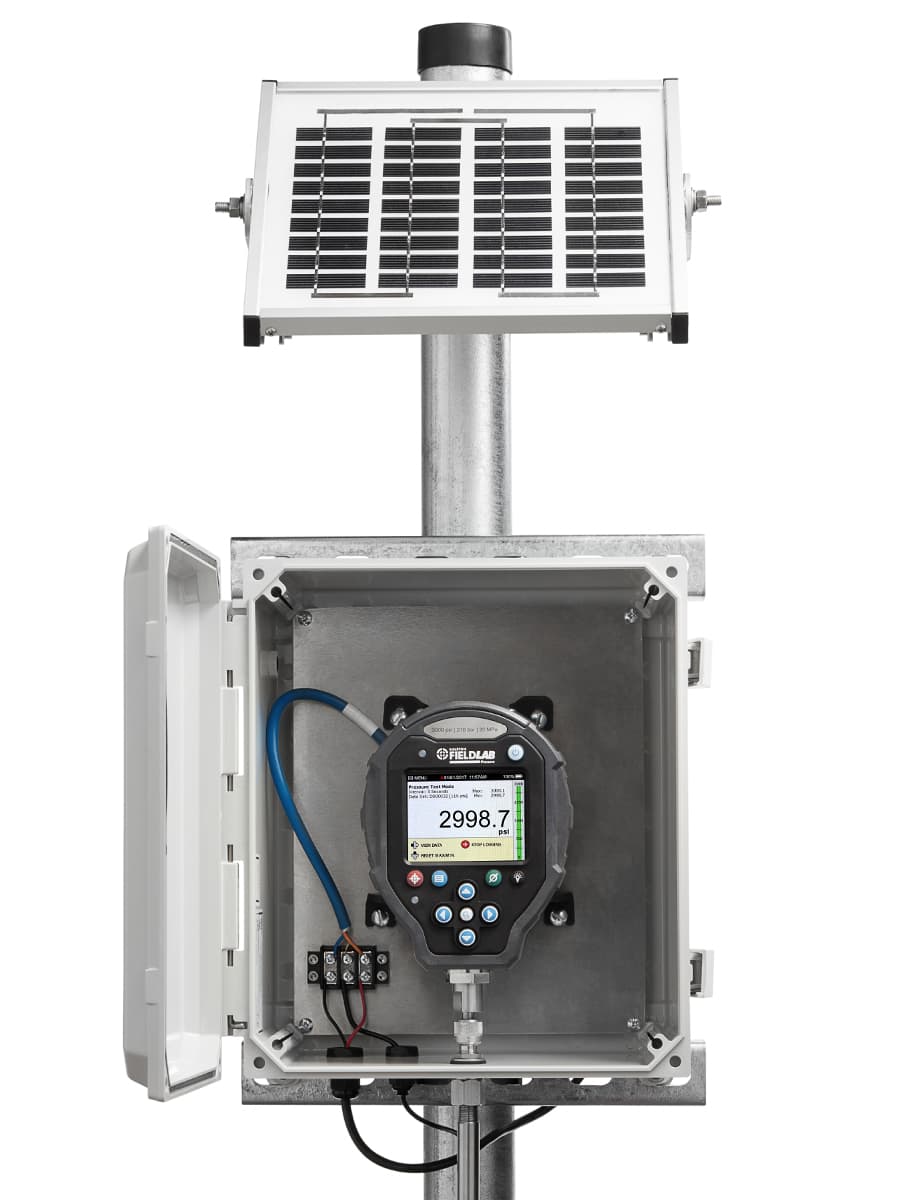

Pressure FieldLab, 3000 psi / 200 bar / 20 MPa in Weatherproof enclosure and solar panel with pole mounting hardware

FLP1-GR-QF-EH-SP

Pressure FieldLab, 3000 psi / 200 bar / 20 MPa in Weatherproof enclosure and solar panel with pole mounting hardware

Specifications

Weight 21.00 lb / 9.53 kg
Length 9.00 in / 22.86 cm
Width 11.30 in / 28.70 cm
Height 1 ft 5 in / 44.45 cm
Burst Pressure 4X
Certifications Certified to CSA Standard C22.2 No. 61010-1
Conforms to UL Standard No. 61010-1
North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C)
ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50 °C)
IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50 °C)
Complies with Pressure Equipment Directive 2014/68/EU
Complies with Low Voltage Directive 2014/35/EU
Complies with Electromagnetic Compatibility Directive 2014/30/EU
Charging AC Power (Australia, China, Europe, North America, UK adapters included)
DC Auto power (Optional)
Datalogging 2 million points
Hose 1 Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
Ingress Protection NEMA 4X
LCD Display 3.5 in / 90mm Color TFT LCD Display
Materials ABS Plastic
Stainless Steel
Max Pressure 3,000 psi / 207 bar / 21 MPa
Max Storage Temperature 167 °F / 75 °C
Max Temperature 130 °F / 54 °C
Measurement Type Gauge Pressure
Media Compatibility Air
Inert Gas
Natural Gas
Petroleum Based Oil
Water
Min Storage Temperature -20 °F / -29 °C
Mounting Holes 3 x M5 Inserts (10 mm deep)
Pressure Measurement Uncertainty +/- 0.02% of Full Scale (0-20% of Full Scale)
+/- 0.1% of Reading (20-100% of Full Scale)
+/- 0.25% of Full Scale (Vacuum)
Pressure Reference None
Process Connection 1/4" Female NPT
Reference Connection 1/2
Relative Humidity 0% to 90% (-10 to 35°C)
0% to 70% (35 to 50°C)
Seal Materials Viton
USB Connection USB (Type B)
Wetted Materials 316 Stainless Steel

Included Items

FieldLab AC Power Charger Kit

FieldLab AC Power Charger Kit

DGAU-0163

USB cable, Straight A x Right Angle B, shielded, grey, 2 meters long

USB cable, Straight A x Right Angle B, shielded, grey, 2 meters long

DGAU-0191

FieldLab Carrying Case

FieldLab Carrying Case

DGAU-0370

FieldLab Solar Panel

Solar Panel

DGAU-0372

FieldLab Outdoor Enclosure

Weatherproof Enclosure

DGAU-0373

Pressure FieldLab, 3000 psi / 200 bar / 20 MPa, Female Quick-test bottom connection

Pressure FieldLab, 3000 psi / 200 bar / 20 MPa, Female Quick-test bottom connection

FLP1-GR-QF
