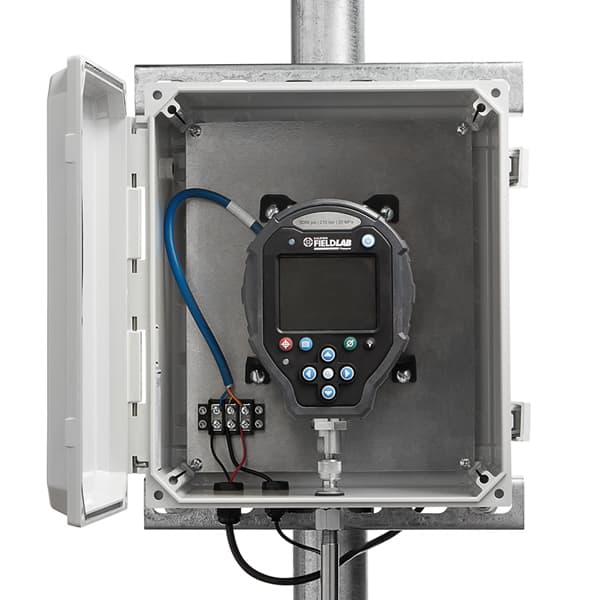

Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa in NEMA 4X Weatherproof enclosure
| Weight | 8.70 lb / 3.95 kg |
|---|---|
| Length | 7.50 in / 19.05 cm |
| Width | 11.30 in / 28.70 cm |
| Height | 1 ft 1 in / 34.29 cm |
| Burst Pressure | 4X |
| Certifications |
Certified to CSA Standard C22.2 No. 61010-1 Conforms to UL Standard No. 61010-1 North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C) ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50 °C) IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50 °C) Complies with Pressure Equipment Directive 2014/68/EU Complies with Low Voltage Directive 2014/35/EU Complies with Electromagnetic Compatibility Directive 2014/30/EU |
| Charging |
AC Power (Australia, China, Europe, North America, UK adapters included) DC Auto power (Optional) |
| Datalogging | 2 million points |
| Hose 1 | Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long |
| Ingress Protection | NEMA 4X |
| LCD Display | 3.5 in / 90mm Color TFT LCD Display |
| Materials |
ABS Plastic Stainless Steel |
| Max Pressure | 10,000 psi / 689 bar / 69 MPa |
| Max Storage Temperature | 167 °F / 75 °C |
| Max Temperature | 130 °F / 54 °C |
| Measurement Type | Gauge Pressure |
| Media Compatibility |
Air Inert Gas Natural Gas Petroleum Based Oil Water |
| Min Storage Temperature | -20 °F / -29 °C |
| Mounting Holes | 3 x M5 Inserts (10 mm deep) |
| Outlet Port | Female Quick-test XT |
| Pressure Measurement Uncertainty |
+/- 0.02% of Full Scale (0-20% of Full Scale) +/- 0.1% of Reading (20-100% of Full Scale) +/- 0.25% of Full Scale (Vacuum) |
| Pressure Reference | Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa |
| Process Connection | 1/4" Female NPT |
| Relative Humidity |
0% to 90% (-10 to 35°C) 0% to 70% (35 to 50°C) |
| Seal Materials | Viton |
| USB Connection | USB (Type B) |
| Wetted Materials | 316 Stainless Steel |
Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa
FLP1-GV-XF
