FLP1-GV-XF-EH

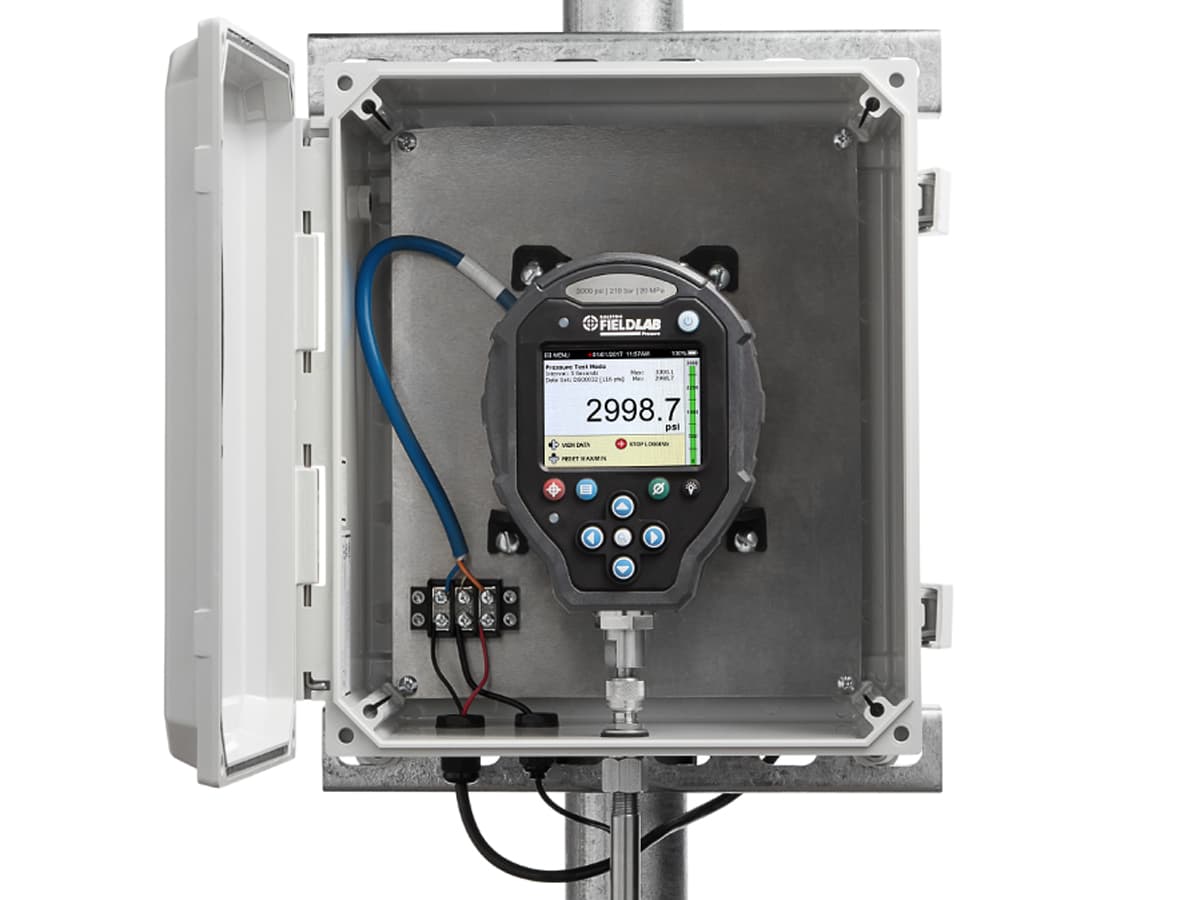

Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa in Weatherproof enclosure with pole mounting hardware

FLP1-GV-XF-EH

Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa in Weatherproof enclosure with pole mounting hardware

Specifications

Weight 10.75 lb / 4.88 kg
Length 9.00 in / 22.86 cm
Width 11.30 in / 28.70 cm
Height 1 ft 2 in / 36.83 cm
Burst Pressure 4X
Charging AC Power (Australia, China, Europe, North America, UK adapters included)
DC Auto power (Optional)
Complies with CSA C22.2 #157
CSA C22.2 #213
CSA C22.2 #61010-1
ISA 12.12.01
UL 913
UL 61010-1
Class 1 Division 1 Groups A,B,C,D
Ex ia IIC t4 Ga (-10 < Ta < 50 C)
CE Approval
Datalogging 2 million points
Hose 1 Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
Ingress Protection NEMA 4X
LCD Display 3.5 in / 90mm Color TFT LCD Display
Materials ABS Plastic
Stainless Steel
Max Pressure 10,000 psi / 689 bar / 69 MPa
Max Storage Temperature 167 °F / 75 °C
Max Temperature 130 °F / 54 °C
Measurement Type Gauge Pressure
Media Compatibility Air
Inert Gas
Natural Gas
Petroleum Based Oil
Water
Min Storage Temperature -20 °F / -29 °C
Mounting Holes 3 x M5 Inserts (10 mm deep)
Outlet Port Female Quick-test XT
Pressure Measurement Uncertainty +/- 0.02% of Full Scale (0-20% of Full Scale)
+/- 0.1% of Reading (20-100% of Full Scale)
+/- 0.25% of Full Scale (Vacuum)
Pressure Reference Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa
Process Connection 1/4" Female NPT
Reference Connection 1/2
Relative Humidity 0% to 90% (-10 to 35°C)
0% to 70% (35 to 50°C)
Seal Materials Viton
USB Connection USB (Type B)
Wetted Materials 316 Stainless Steel

Included Items

Fieldlab pole mounting kit for Outdoor Enclosure, 2 in (5 cm) pole

Outdoor Enclosure pole mounting kit

DGAU-0368-2

FieldLab Outdoor Enclosure

Weatherproof Enclosure

DGAU-0373

FieldLab Pressure, 10,000 psi / 700 bar / 70 MPa, female Quick-test XT bottom connection

Pressure FieldLab, 10,000 psi / 700 bar / 70 MPa

FLP1-GV-XF
