QTFT-1MS1

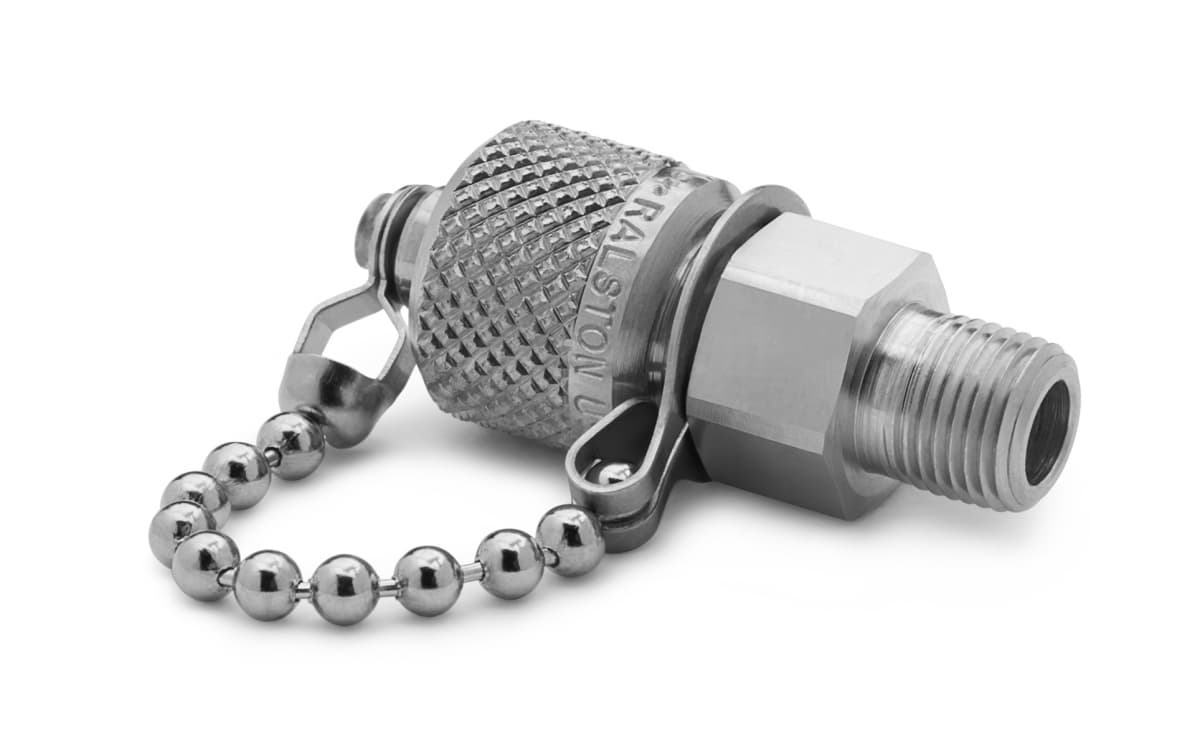

1/8" male NPT x male Quick-test, with check-valve, with cap and chain, S.S.

QTFT-1MS1

A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete

Specifications

Length 1.76 in / 45 mm
Width 0.71 in / 19 mm
Has Check Valve Yes
Materials Stainless Steel
Max Pressure 3000 PSI / 205 bar / 21 MPa
Max Temperature 225 °F / 105 °C
Max Vacuum 0 In Hg / 0.00 mm Hg
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector 1/8" Male NPT (ASME B1.20.1)
End 1 Bulkhead Seal No
End 1 Cap and Chain No
End 1 Quick Disconnect No
End 2 Connector Male Quick-test
End 2 Bulkhead Seal No
End 2 Cap and Chain Yes
End 2 Quick Disconnect No
