Part Number: QTFT-2MB0

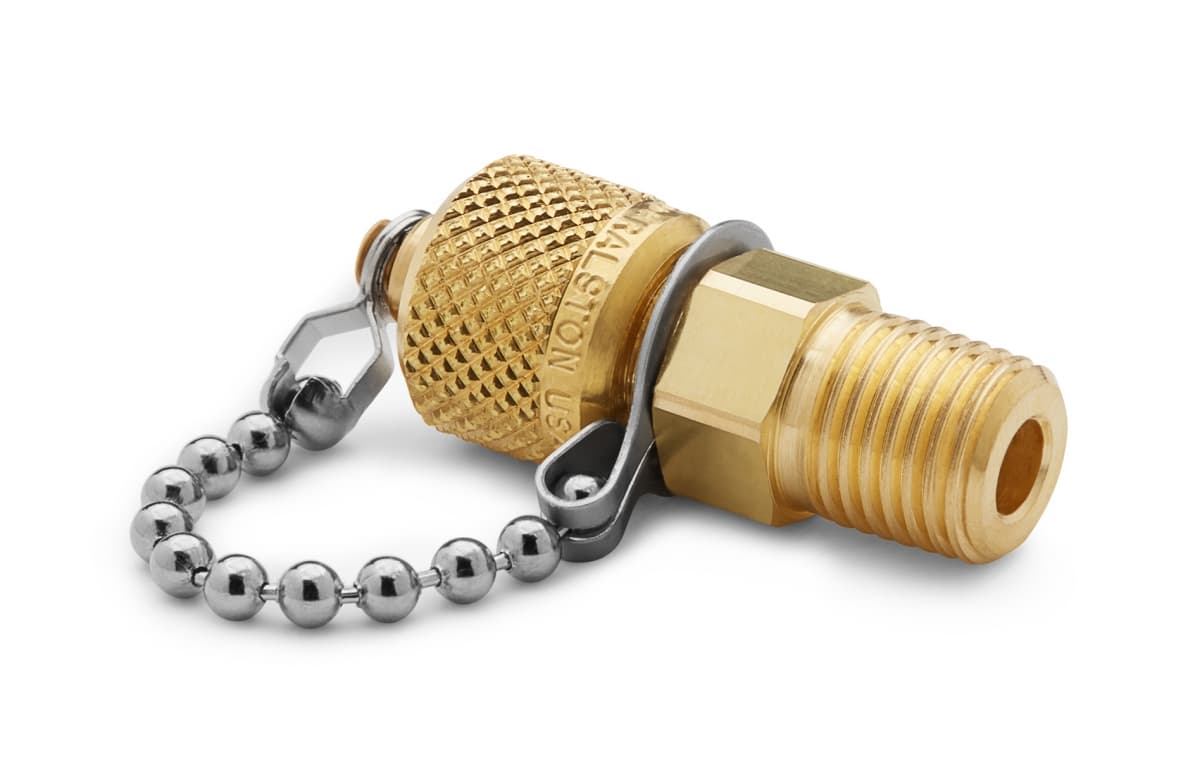

1/4" male NPT x male Quick-test, no check-valve, with cap and chain , brass
A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.95 oz / 55 grams |
|---|---|
| Length | 1.85 in / 47 mm |
| Width | 0.71 in / 19 mm |
| Height | 0.71 in / 19 mm |
| Country of origin | USA |
| Has Cap and Chain | Yes |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 1/4" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Cap and Chain | Yes |
| End 2 Direction | Right |
