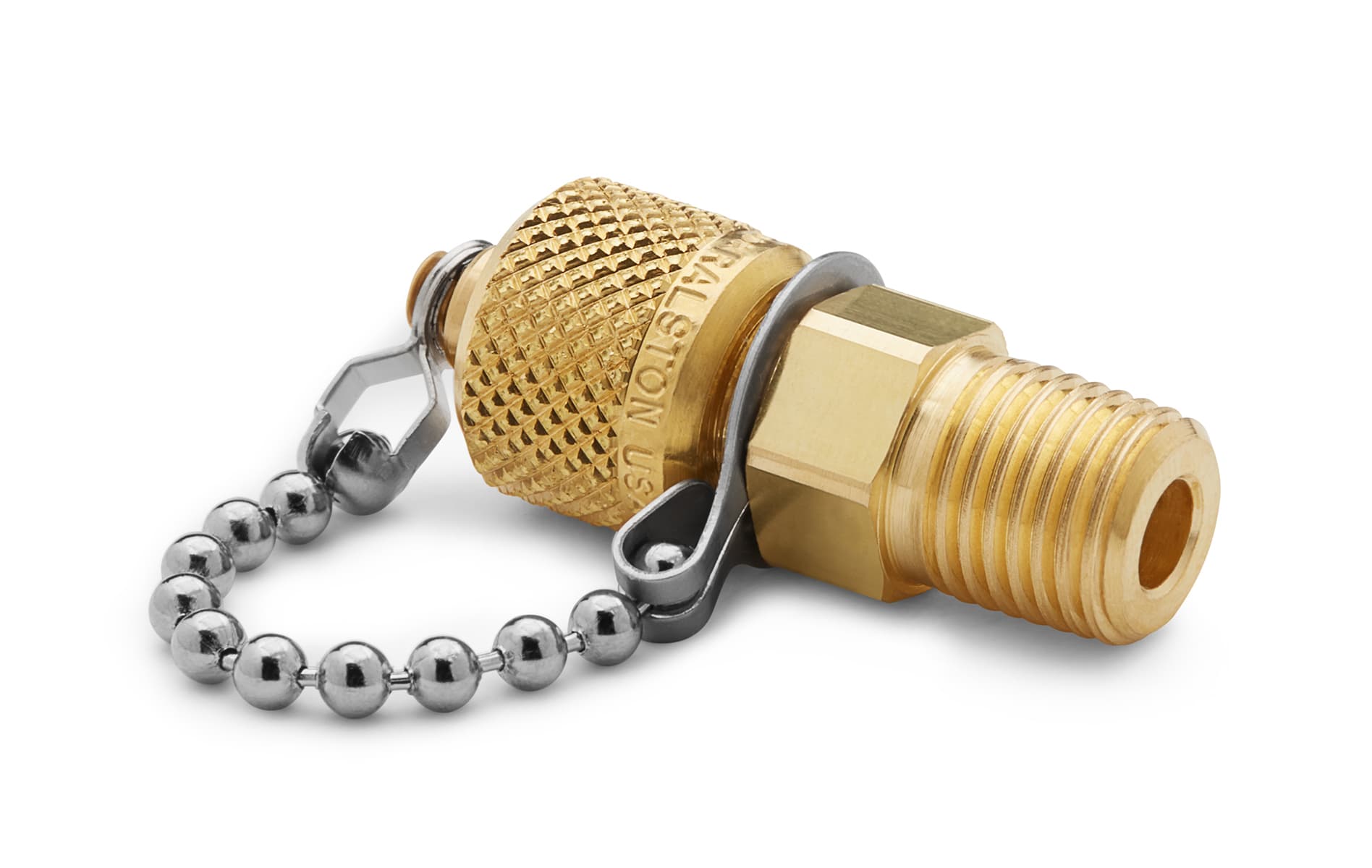

Part Number: QTFT-2MB1-LT
1/4" Male NPT x male QT, with check-valve, with cap and chain, brass, Low temperature seals
Connects Female NPT taper pipe thread to Quick-test hose using thread sealant and a wrench
Specifications
| Weight | 2 oz / 57 grams |
|---|---|
| Length | 1.85 in / 47 mm |
| Width | 0.71 in / 19 mm |
| Height | 0.71 in / 19 mm |
| Country of origin | USA |
| Has Check Valve | Yes |
| Materials | Brass |
| Max Operating Temperature | 450 °F / 230 °C |
| Max Pressure | 3000 PSI / 200 bar / 20 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | -175 °F / -115 °C |
| Seal Materials | Silicone |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 1/4" Male BSPT (ISO 7) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
