Part Number: QTFT-2MSL

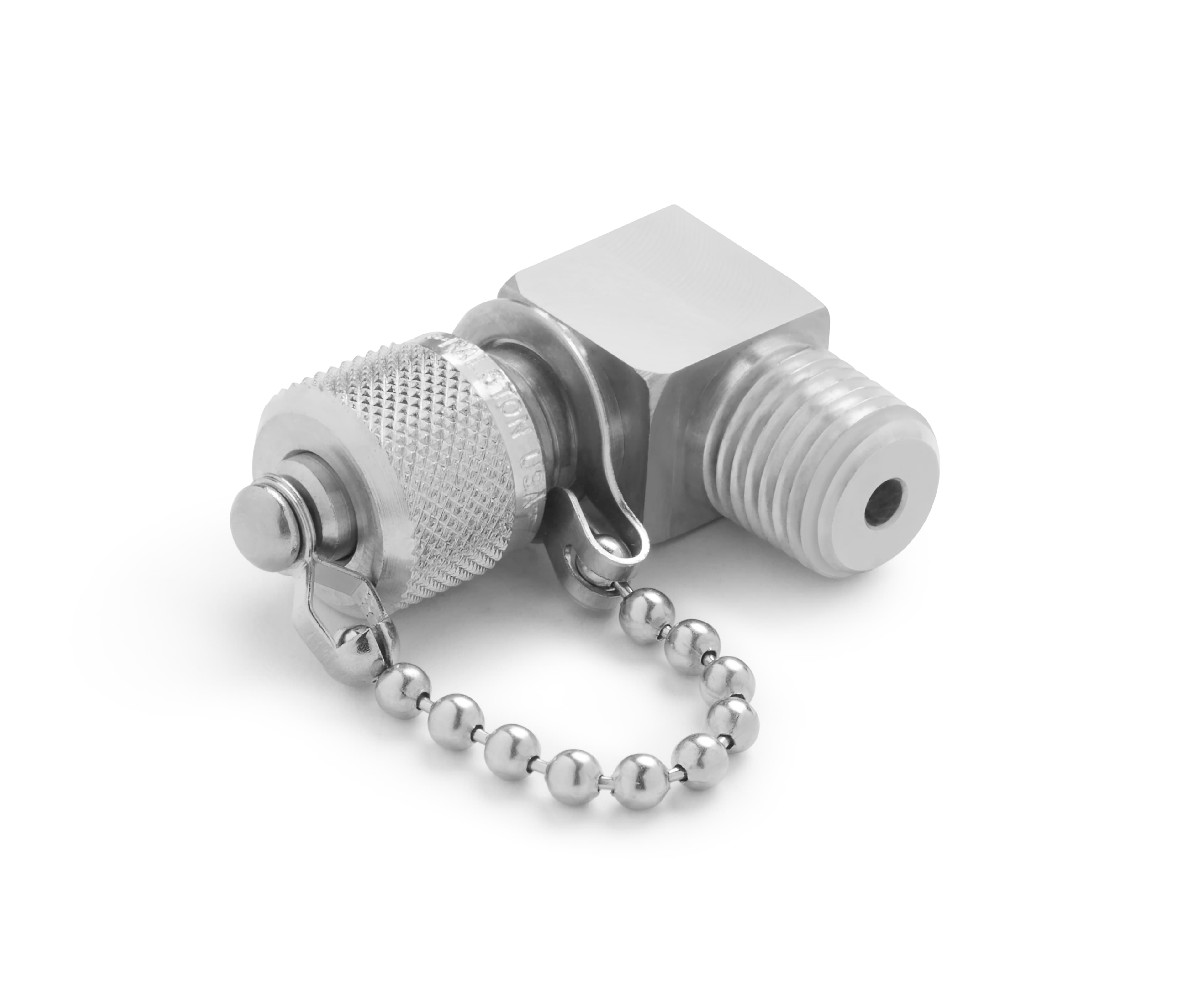

1/4" male NPT x male Quick-test with cap and chain 90 degree elbow, stainless steel
Connect a hose to an adapter that is in a hard to reach place
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.72 oz / 77 grams |
|---|---|
| Length | 1.84 in / 47 mm |
| Width | 1.23 in / 32 mm |
| Height | 0.56 in / 15 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| End 1 Connector | 1/4" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
