Part Number: QTFT-3MS0

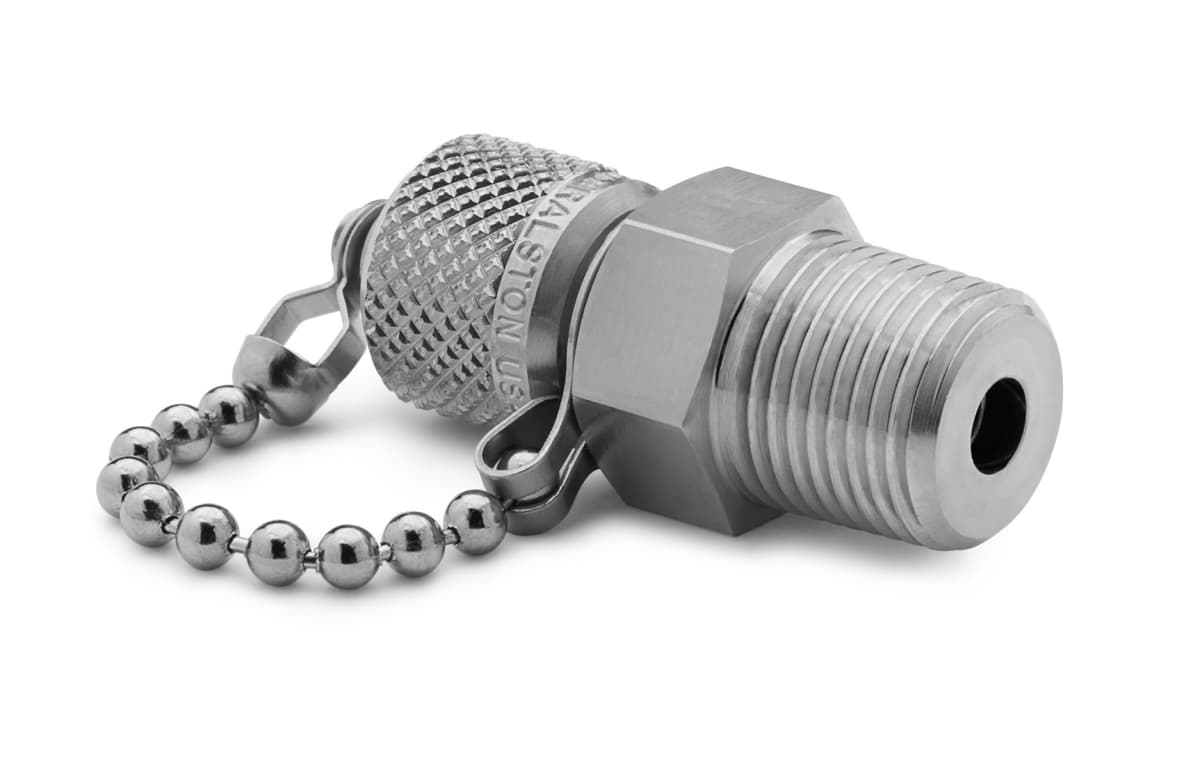

3/8" male NPT x male Quick-test, no check-valve, with cap and chain, S.S.
A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
Specifications
| Weight | 2.62 oz / 74 grams |
|---|---|
| Length | 1.97 in / 51 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | Male Quick-test |
| End 1 Cap and Chain | Yes |
| End 1 Direction | Left |
| End 2 Connector | 3/8" Male NPT (ASME B1.20.1) |
| End 2 Direction | Left |
