QTFT-4MB1

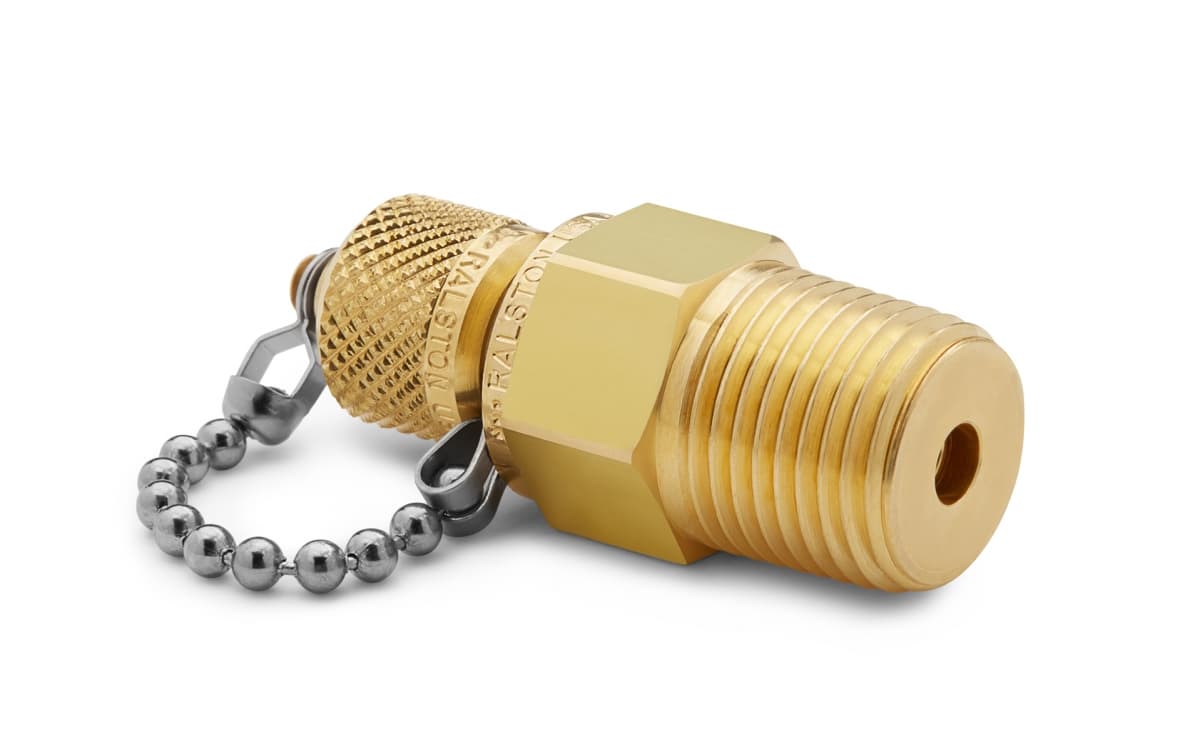

1/2" male NPT x male Quick-test, with check-valve, with cap and chain, brass

QTFT-4MB1

A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete

Specifications

Length 2.14 in / 55 mm
Width 0.87 in / 23 mm
Has Check Valve Yes
Materials Brass
Max Pressure 3000 PSI / 205 bar / 21 MPa
Max Temperature 225 °F / 105 °C
Max Vacuum 0 In Hg / 0.00 mm Hg
Seal Materials Buna-N
Wrench Size 7/8 In / 23 mm
Wrench Size 23 mm / 7/8 in
End 1 Connector 1/2" Male NPT (ASME B1.20.1)
End 1 Bulkhead Seal No
End 1 Cap and Chain No
End 1 Quick Disconnect No
End 2 Connector Male Quick-test
End 2 Bulkhead Seal No
End 2 Cap and Chain Yes
End 2 Quick Disconnect No
