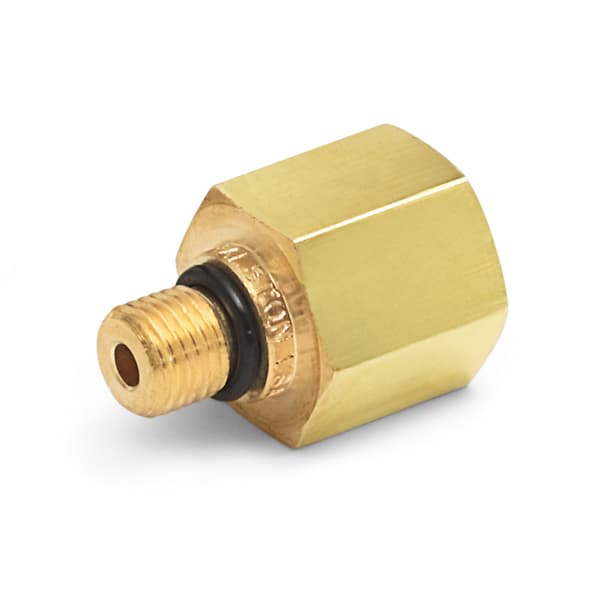

Part Number: QTHA-3S2F
1/4" Female NPT x 3/8" Male SAE (-03), brass
Outlet port used on hand pumps, nitrogen sources, volume controllers
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.52 oz / 43 grams |
|---|---|
| Length | 1.27 in / 33 mm |
| Width | 0.86 in / 22 mm |
| Height | 0.86 in / 22 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| End 1 Connector | 3/8-24 Male SAE/MS |
| End 1 Direction | Left |
| End 2 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 2 Direction | Left |
