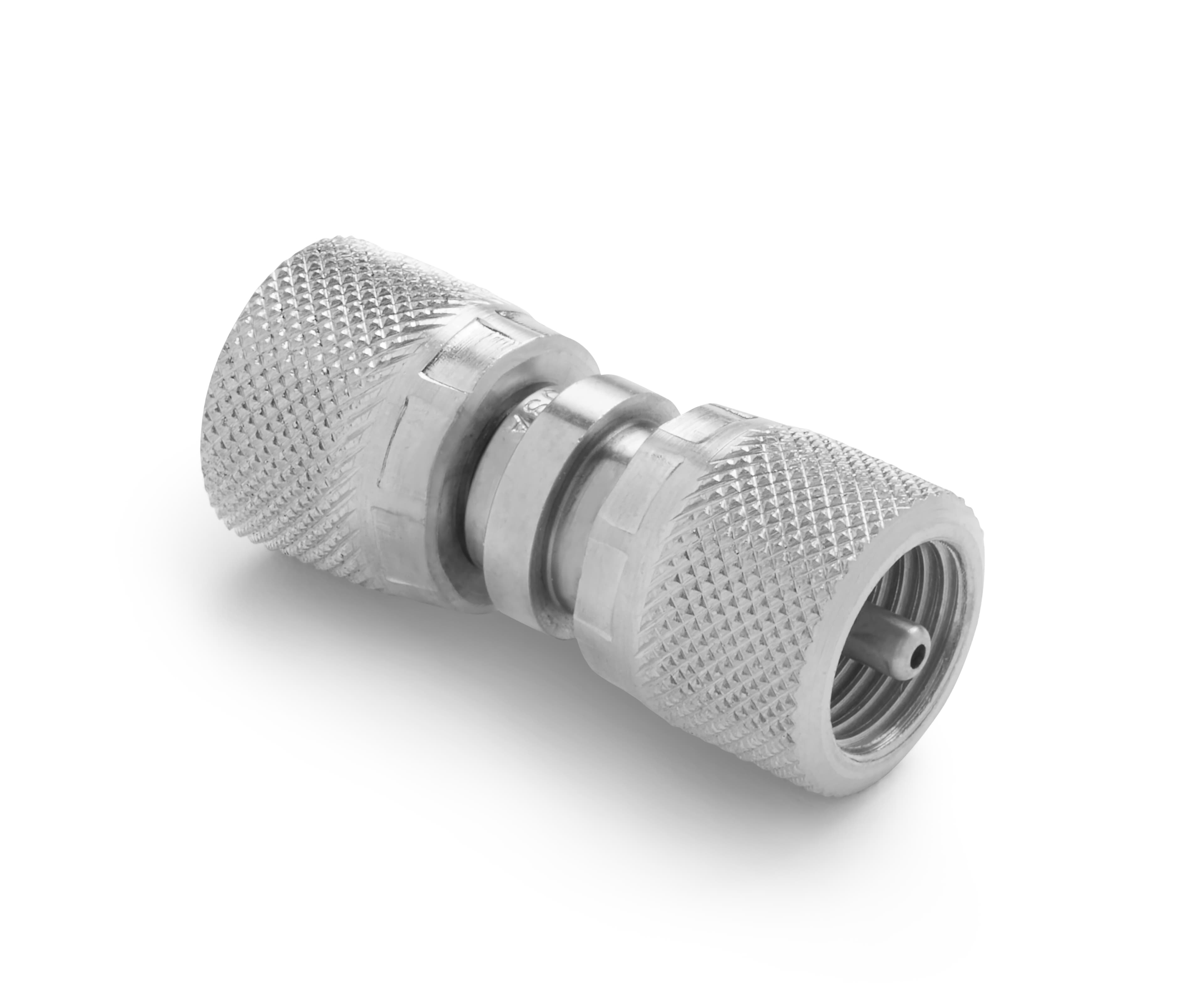

Part Number: QTHA-CCSU
Female Quick-test x female Quick-test hose union, stainless steel
Connect two male Quick-test adapters together
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.6 oz / 45 grams |
|---|---|
| Length | 1.72 in / 44 mm |
| Width | 0.7 in / 18 mm |
| Height | 0.7 in / 18 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| End 1 Connector | Female Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Female Quick-test |
| End 2 Direction | Left |
