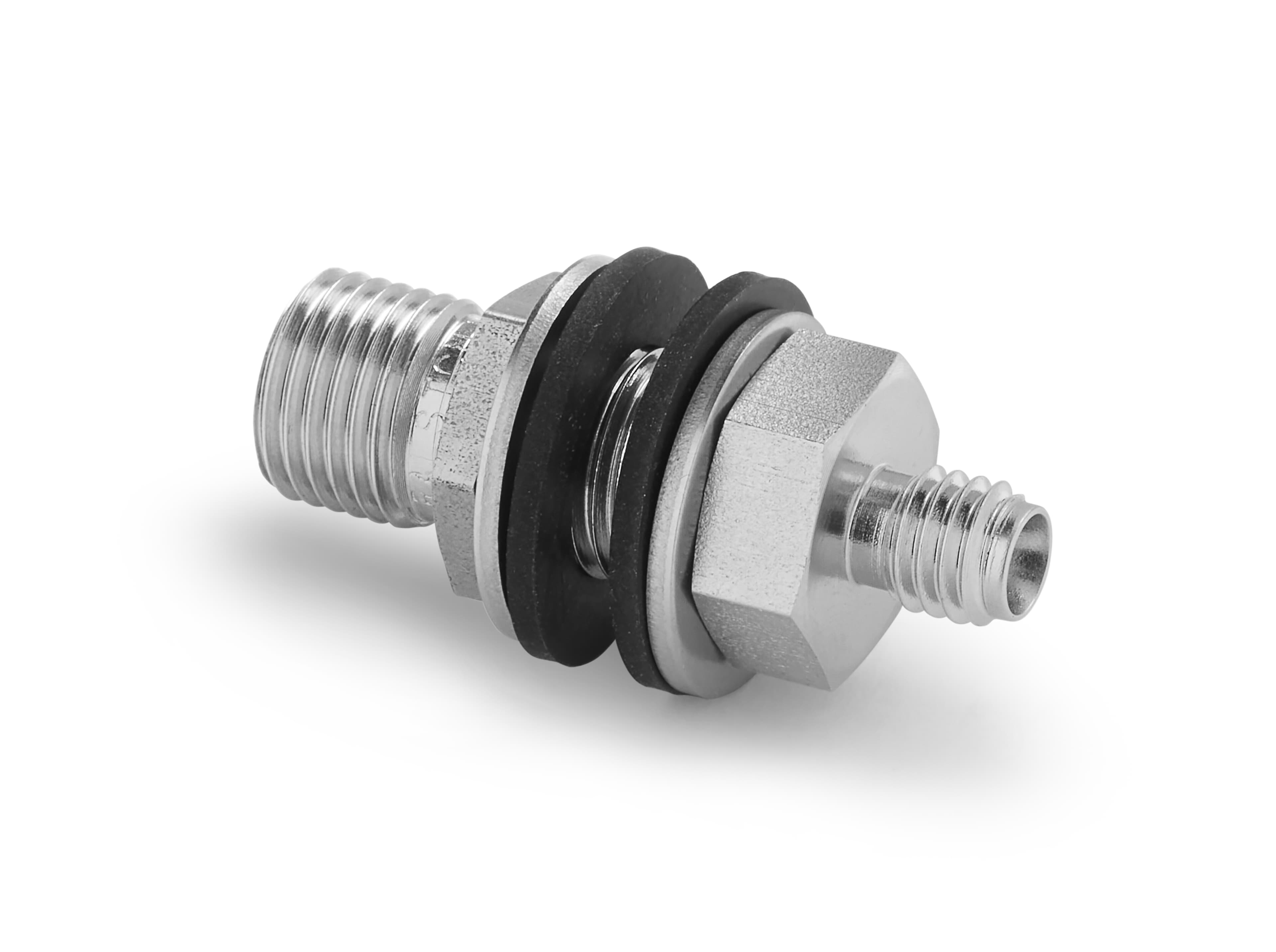

Part Number: QTHA-HTSB-1T
Male Quick-test x 1/8" tube fitting with Bulkhead seals, SS
Connect a Quick-test hose to a tube fitting through a wall or control panel
Specifications
| Weight | 1.54 oz / 44 grams |
|---|---|
| Length | 1.67 in / 43 mm |
| Width | 0.7 in / 18 mm |
| Height | 0.7 in / 18 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 1/8" Female Tube Fitting |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
