Part Number: XTHA-TFS0-M420

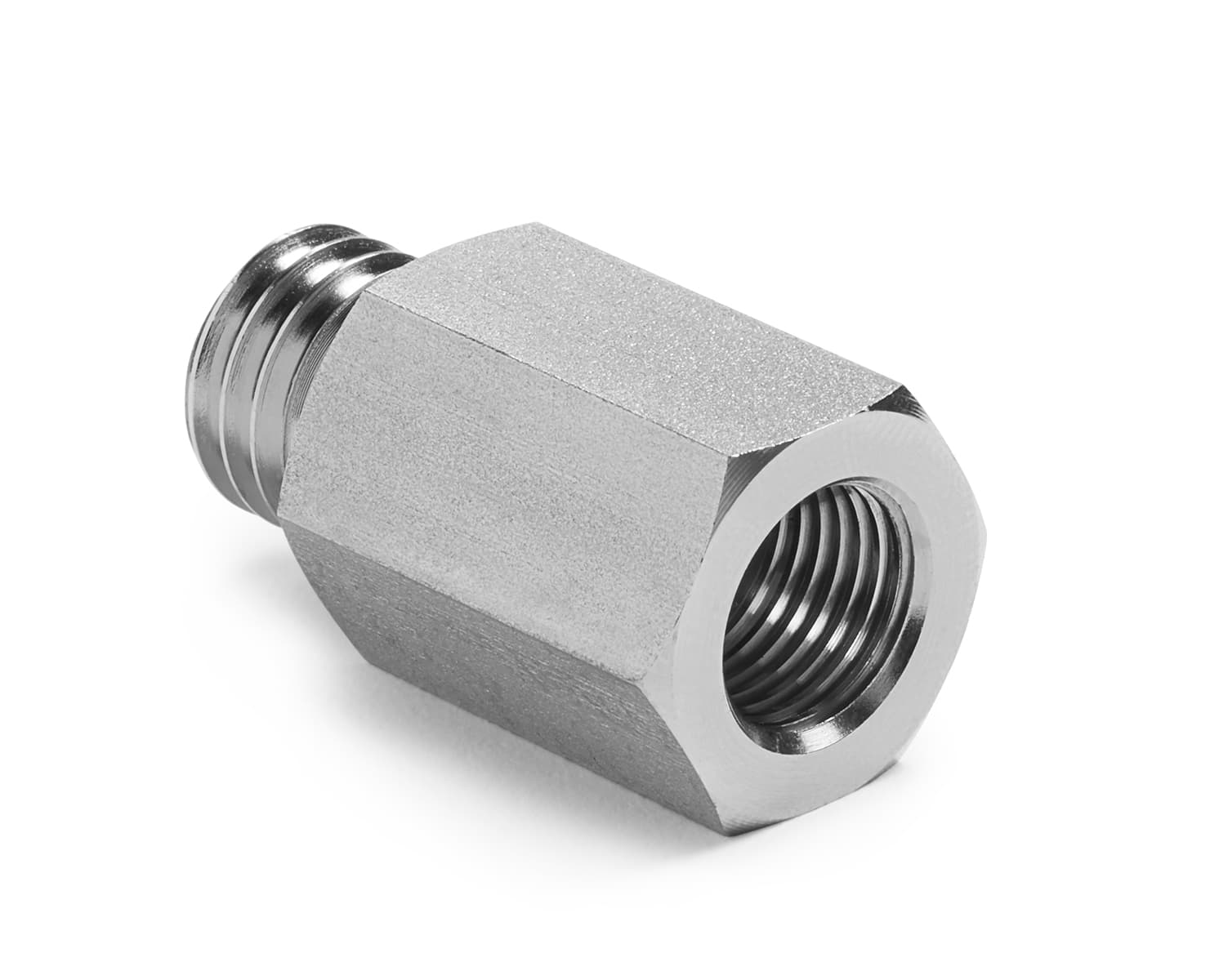

1/2-20 female Melt Pressure Transducer x Male Quick-test XT adapter, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to a melt pressure transducer with 1/2-20 threads for testing and calibration

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2 oz / 57 grams
Length	1.44 in / 37 mm
Width	0.75 in / 20 mm
Height	0.86 in / 22 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
Wrench Size	3/4 In / 20 mm
Wrench Size	20 mm / 25/32 in
End 1 Connector	Male Quick-test XT
End 1 Direction	Left
End 2 Connector	1/2-20 UNF Female Melt Pressure Transducer
End 2 Direction	Left
