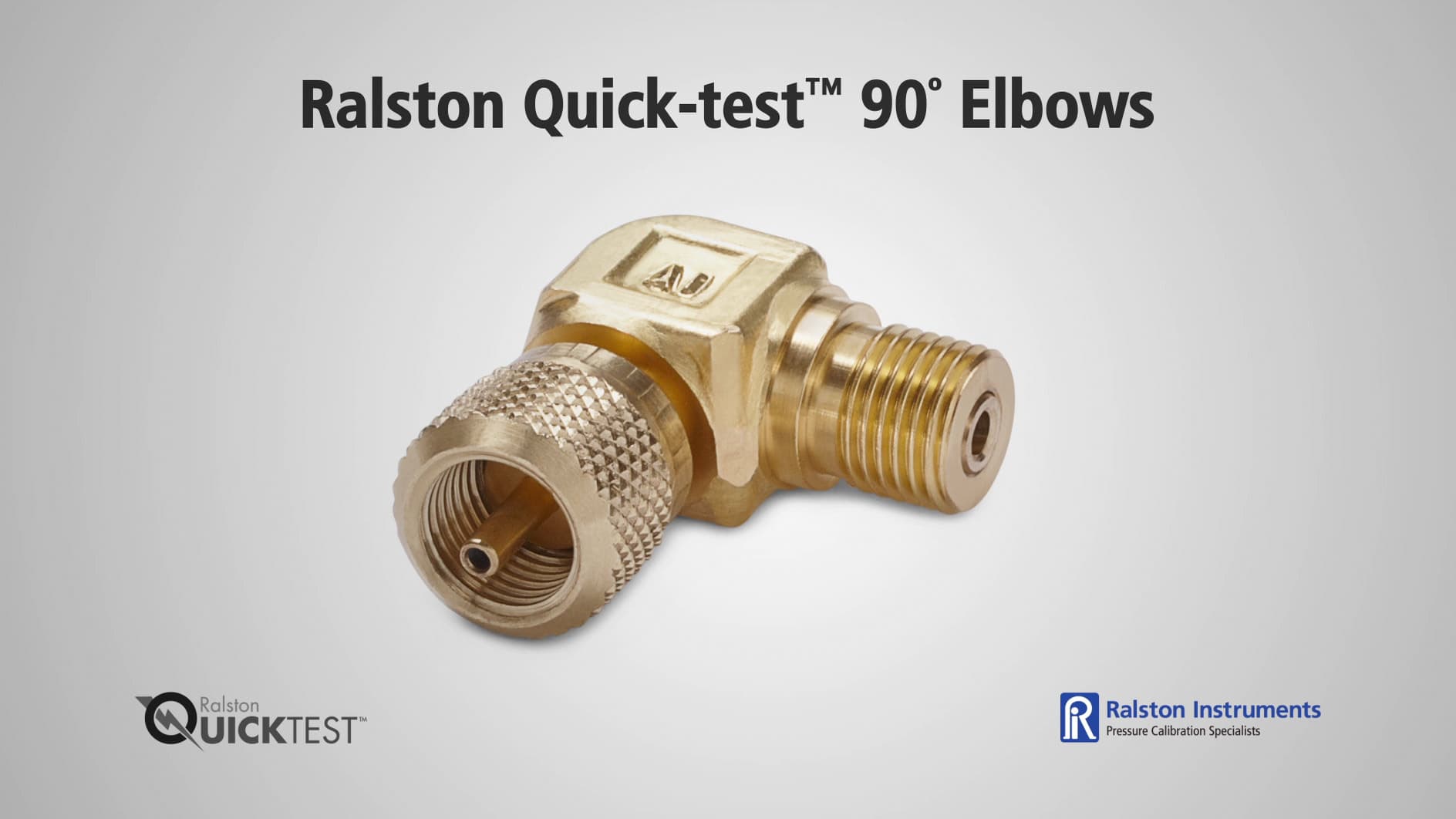

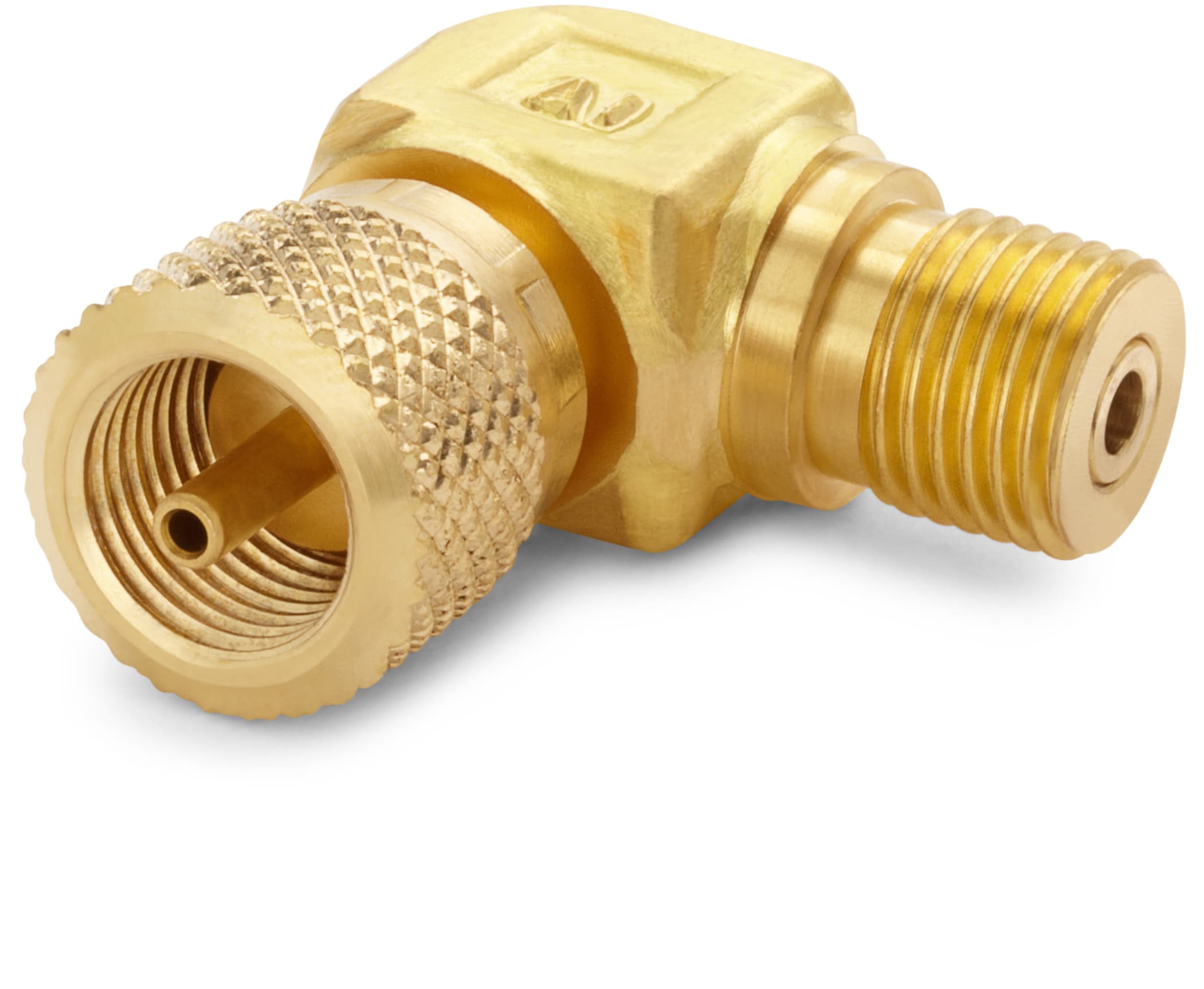

Quick-test 90 degree Elbows
QTHA-HCBL
Connect a hose to an adapter that is in a hard to reach place

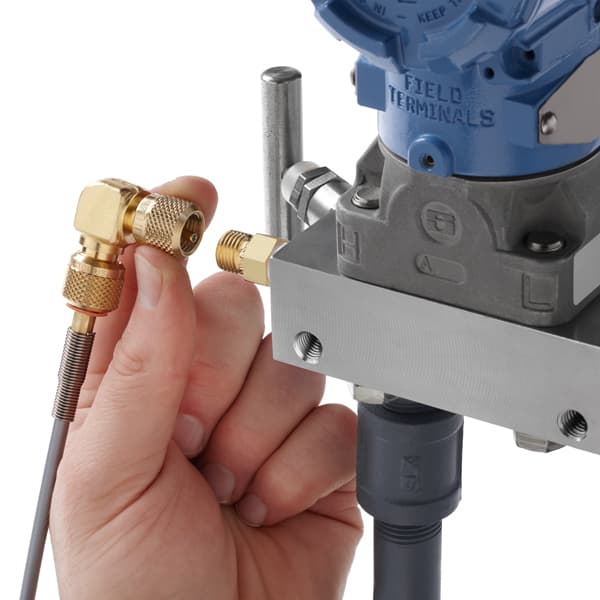

- Ideal for accessing pressure transmitter ports and other equipment that is hard to reach
- Position pressure gauges for easy reading
- Durable forged construction
- Made in USA
Quick-test 90 degree Elbow Models
| Model | Max Pressure | Connection | Connection | Quick-connect | Has Check Valve | Cap and Chain | Bulkhead | Materials |
|---|---|---|---|---|---|---|---|---|
| QTHA-2MBL | 5000 PSI / 350 bar / 35 MPa | 1/4" Male NPT (ASME B1.20.1) | Male Quick-test | No | No | No | No | Brass |
| QTFT-2MBL | 5000 PSI / 350 bar / 35 MPa | 1/4" Male NPT (ASME B1.20.1) | Male Quick-test | No | No | No | No | Brass |
| QTHA-2MSL | 5000 PSI / 350 bar / 35 MPa | 1/4" Male NPT (ASME B1.20.1) | Male Quick-test | No | No | No | Stainless Steel | |
| QTFT-2MSL | 5000 PSI / 350 bar / 35 MPa | 1/4" Male NPT (ASME B1.20.1) | Male Quick-test | No | No | No | Stainless Steel | |
| QTHA-HCBL | 5000 PSI / 350 bar / 35 MPa | Male Quick-test | Female Quick-test | No | No | No | No | Brass |
